Windshield Washer Motor: Testing and Inspection

FRONT WASHER MOTOR

INSPECTION

1. With the washer motor connected to the reservoir tank, fill the reservoir tank with water.

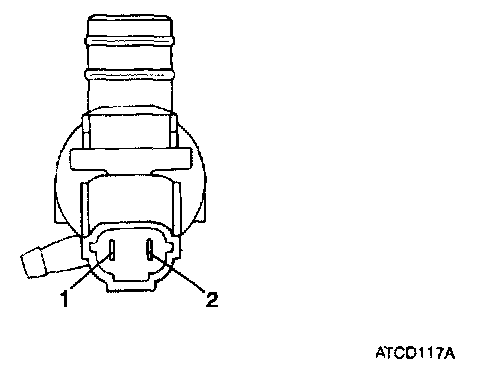

2. Apply the battery voltage to the terminal 2 and ground the terminal 1 to see that the washer motor runs and water sprays from the nozzles.




3. Check that the motor operates normally.
