Displaying & Reading Trouble Codes

DIAGNOSIS PROCEDURE

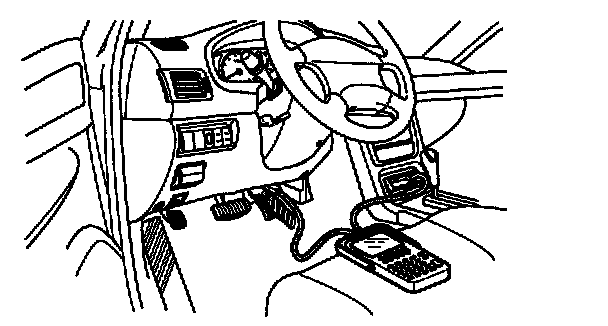

1. Connect Hi-Scan with the self-diagnosis connector and the cigar-lighter socket.

2. Wait 3-4 seconds and select the vehicle model.
3. Upon selecting vehicle, press "YES" button.
4. Screen will display MENU and then chose diagnosis code or maintenance data item to output.

NOTE:
^ Hi-Scan will store max, 8 diagnosis codes and max. 3 fail-safe items in the order of generation in RAM.
^ The same code will not be stored twice or more.
^ If codes or fail-safe items occur more than RAM capacity, they will be erased in the order of generation.
^ Upon disconnecting battery power of all stored codes and fail-safe items will be erased. Do not separate battery power before completing the procedure.
^ Place shift lever at "P" or "N" and stop the vehicle.
