Home >> Kia >> 2005 >> Amanti V6-3.5L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Component Tests and General Diagnostics >> Non-Trouble Code Procedures >> Hydraulic Pressure Test >> Normal Fluid Pressure Specification Table

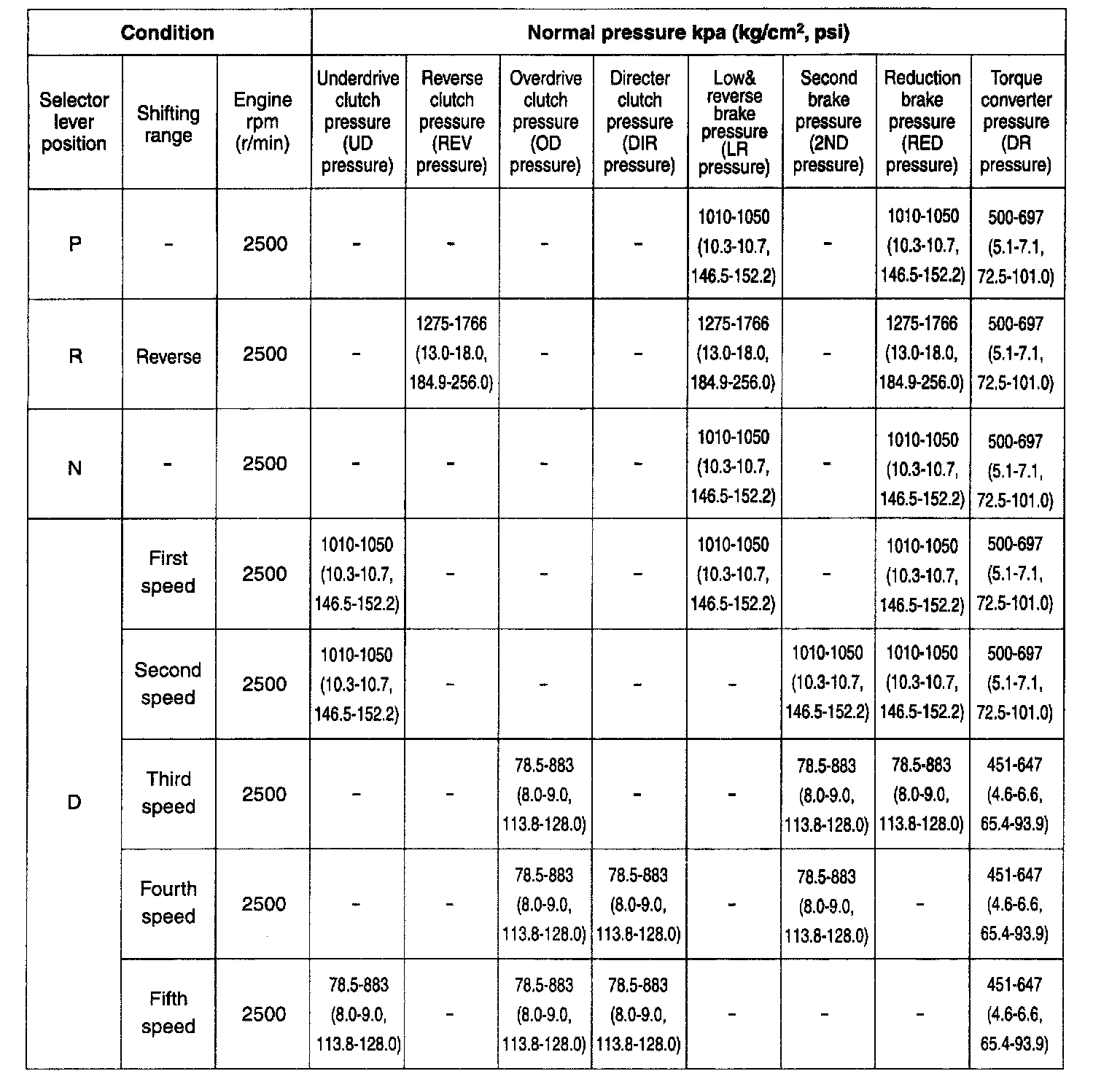

Normal Fluid Pressure Specification Table
