Disassembly

VALVE BODY

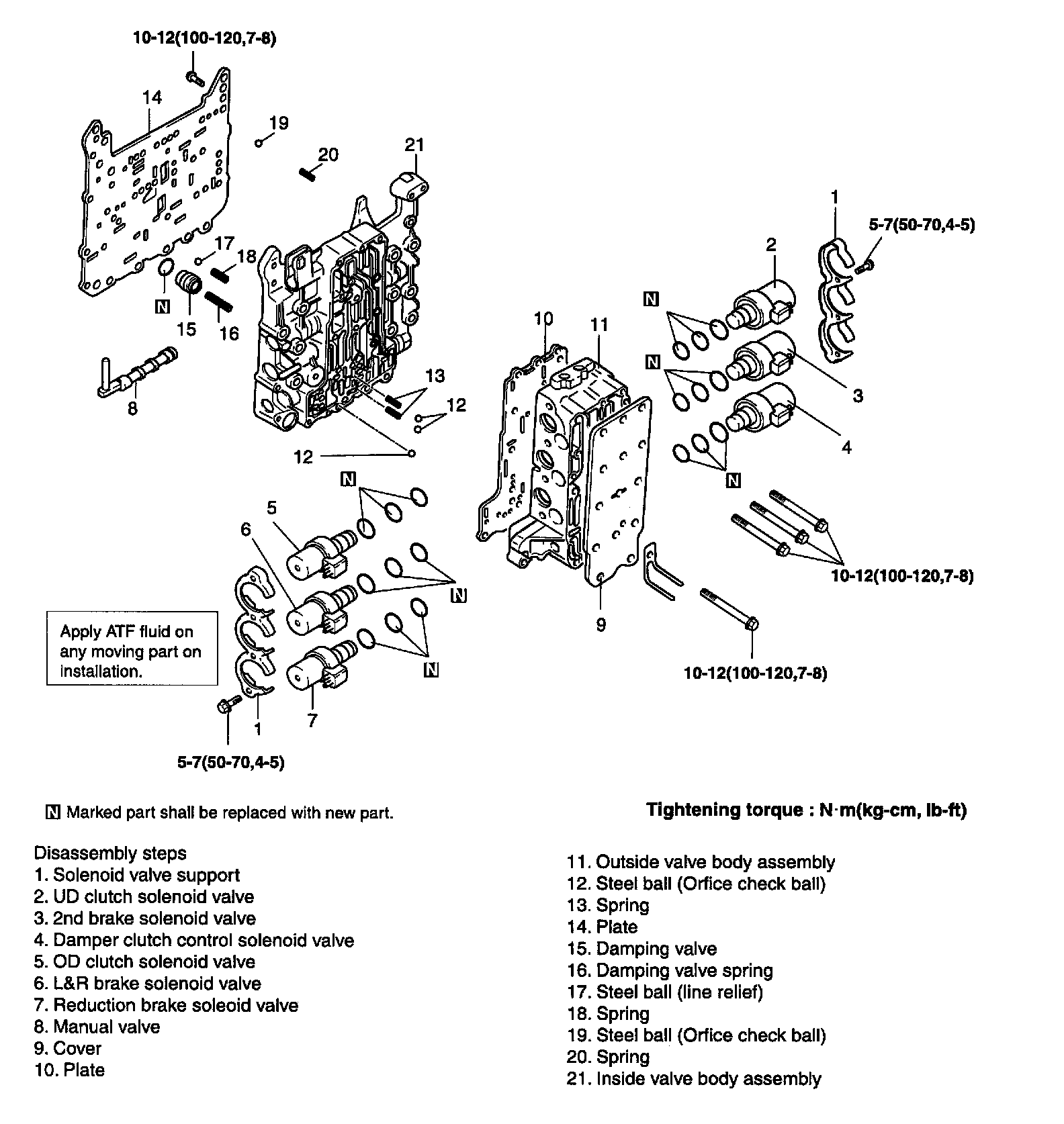

COMPONENTS (A)

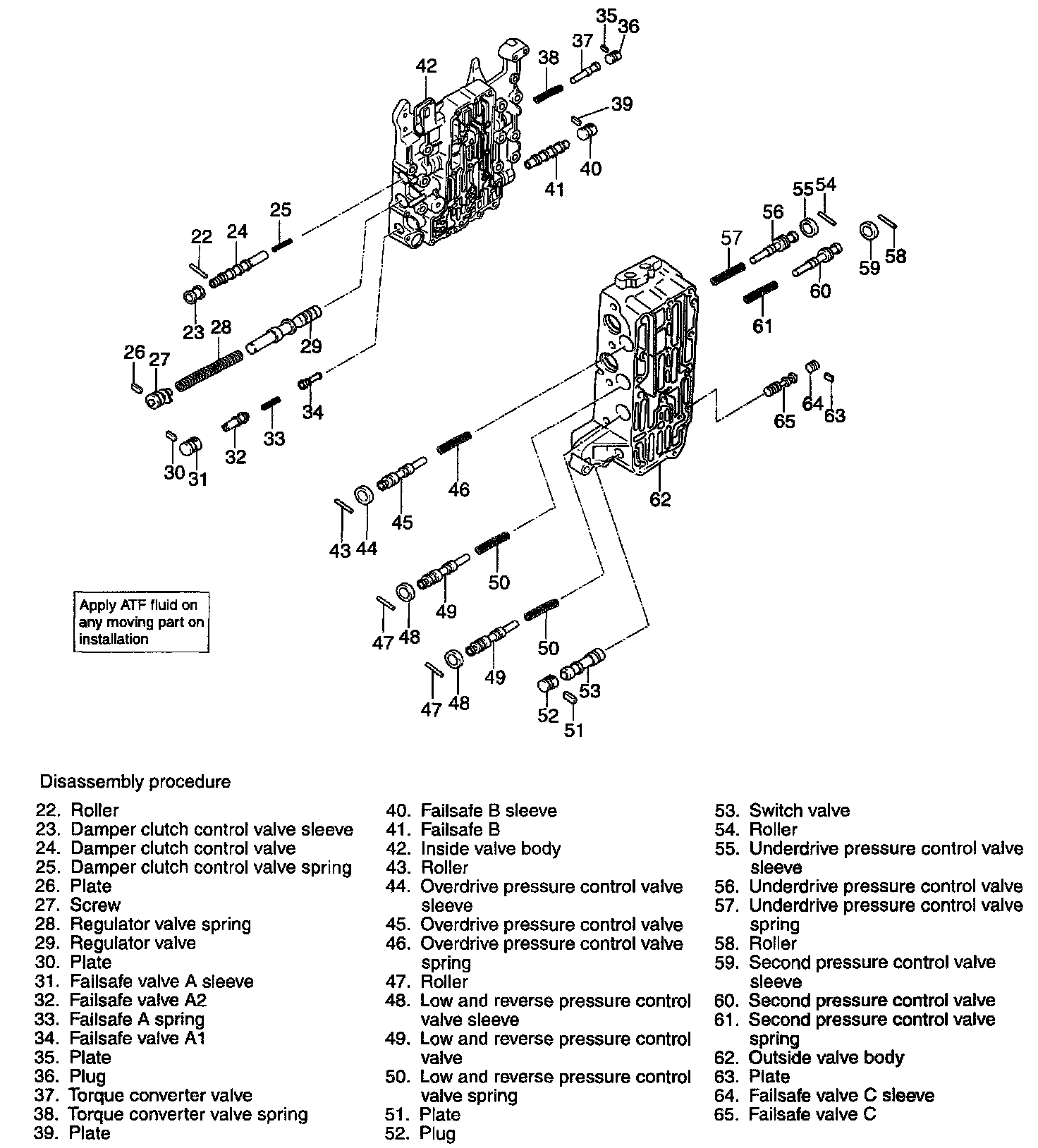

COMPONENTS (B)

DISASSEMBLY
1. Remove each solenoid valve. Mark each installation point with white paint or so.
