Reassembly

UNDERDRIVE CLUTCH

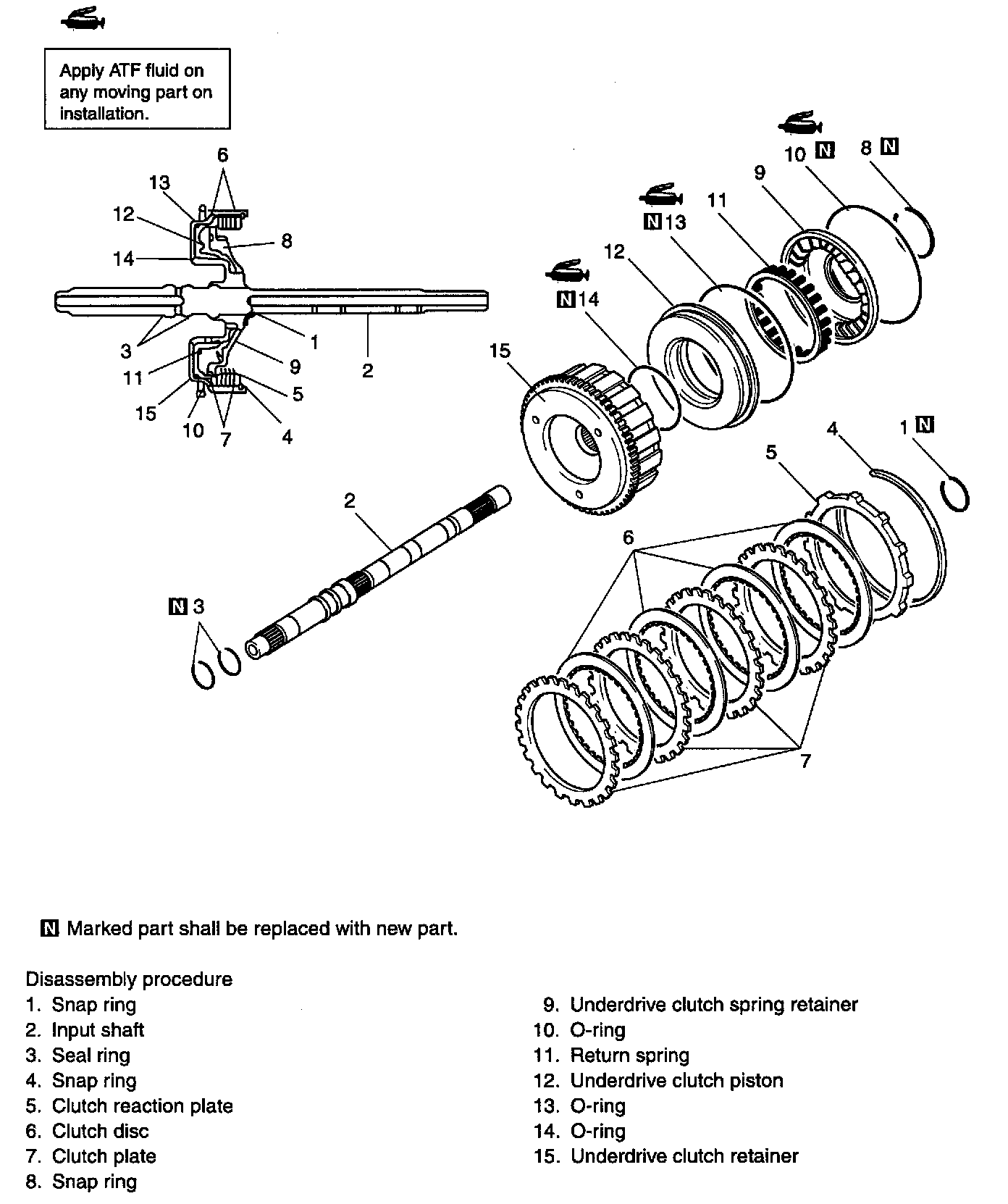

COMPONENTS

REASSEMBLY
1. Install the O-ring (two).
2. Install the underdrive clutch piston.
3. Install the clutch return spring.
4. Install the O-ring.
5. Install the clutch spring retainer.

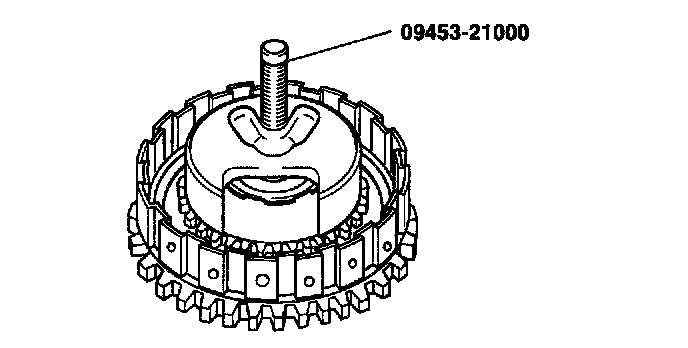

6. Install the clutch spring retainer snap ring using the special tool (09453-21000).

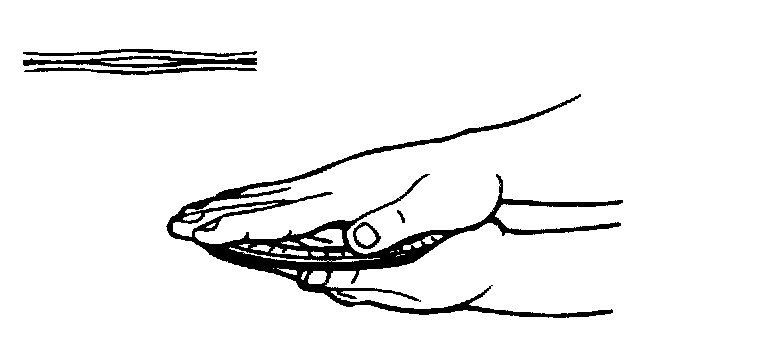

NOTE: Hold the 2 clutch discs together, and slide them a little, If there is a gap, they are wave discs.

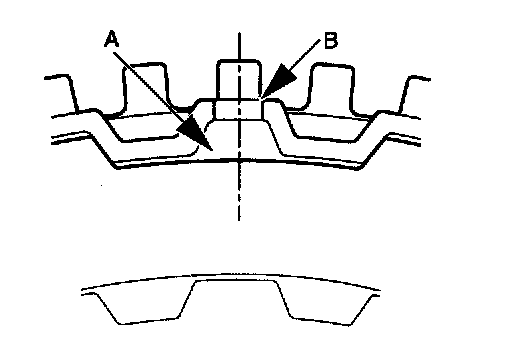

7. Align the teeth of the clutch plate, the clutch disc and the clutch reaction plate (fig.A), and hold the underdrive clutch (fig.B).

CAUTION: Dip the clutch disc in ATF sufficiently before assembly.

8. Install the clutch reaction plate in the direction on figure.

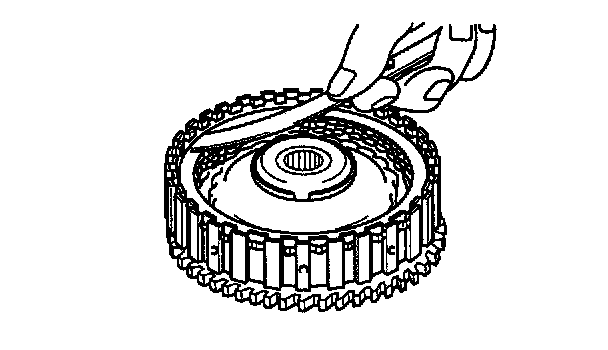

9. Install the snap ring.

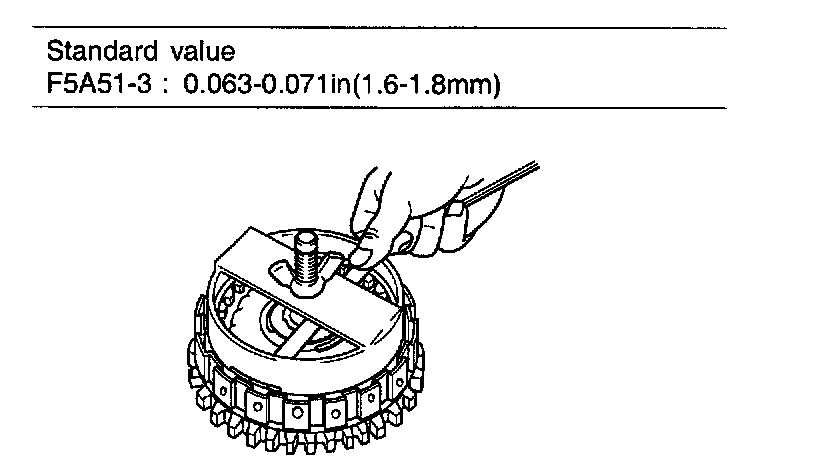

10. Check the gap between the snap ring and the reaction plate.





11. If the gap deviates from standard value, choose a proper snap ring (15 sizes).

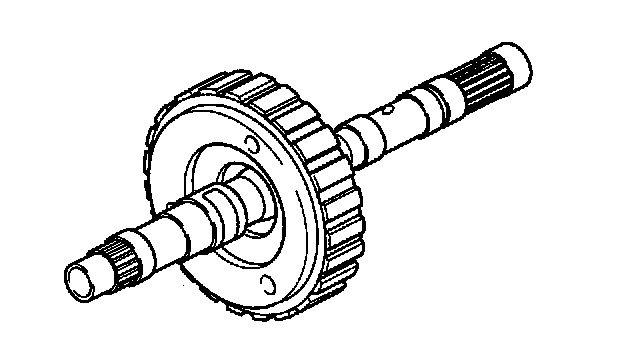

12. Install the underdrive clutch assembly on the input shaft.
13. Install the snap ring on the input shaft.
