Disassembly

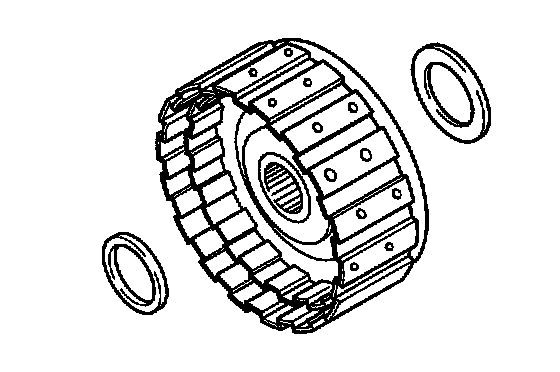

REVERSE AND OVERDRIVE CLUTCH

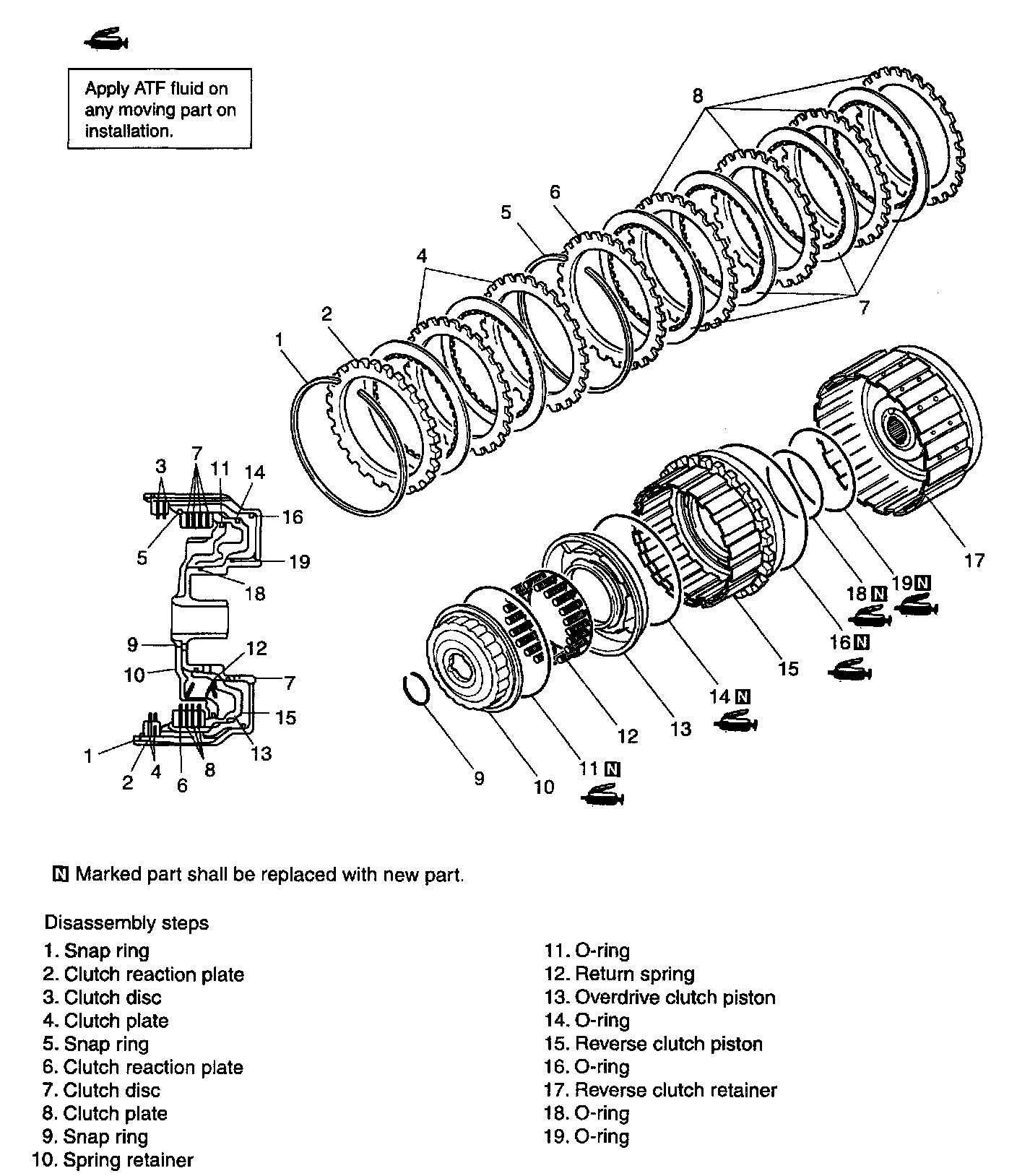

COMPONENTS

DISASSEMBLY





1. Remove the overdrive clutch reaction plate snap ring.
2. Remove the overdrive reaction plate.
3. Remove the overdrive clutch discs (four) and the plates (four).
4. Remove the reverse clutch reaction plate snap ring.
5. Remove the reverse clutch reaction plate.
6. Remove the reverse clutch discs (two) and the plates (two).

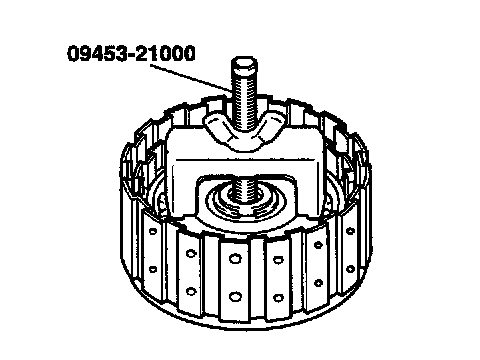

7. Remove the clutch spring retainer snap ring using special tool (09453-21000).
8. Disconnect the clutch spring retainer.
9. Remove the O-ring.
10. Remove the clutch return spring.
11. Remove the overdrive clutch piston using compressed air.
12. Remove the O-ring.
13. Remove the reverse clutch piston.
14. Remove the O-rings (three).
