Disassembly

DIRECT CLUTCH





COMPONENTS

DISASSEMBLY
1. Remove the direct clutch snap ring.
2. Remove the clutch reaction plate.
3. Remove the clutch discs (five) and plates (five).

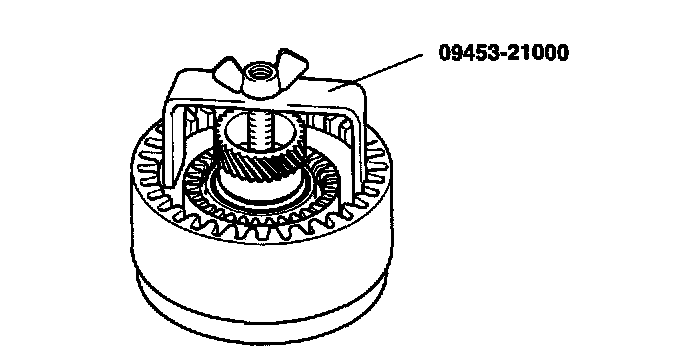

4. Remove the snap ring using special tool (09453-21000).
5. Remove the direct spring retainer.
6. Remove the return spring.
7. Remove the direct clutch piston and O-ring.
