Fluid Diagrams

HYDRAULIC PRESSURE CIRCUIT

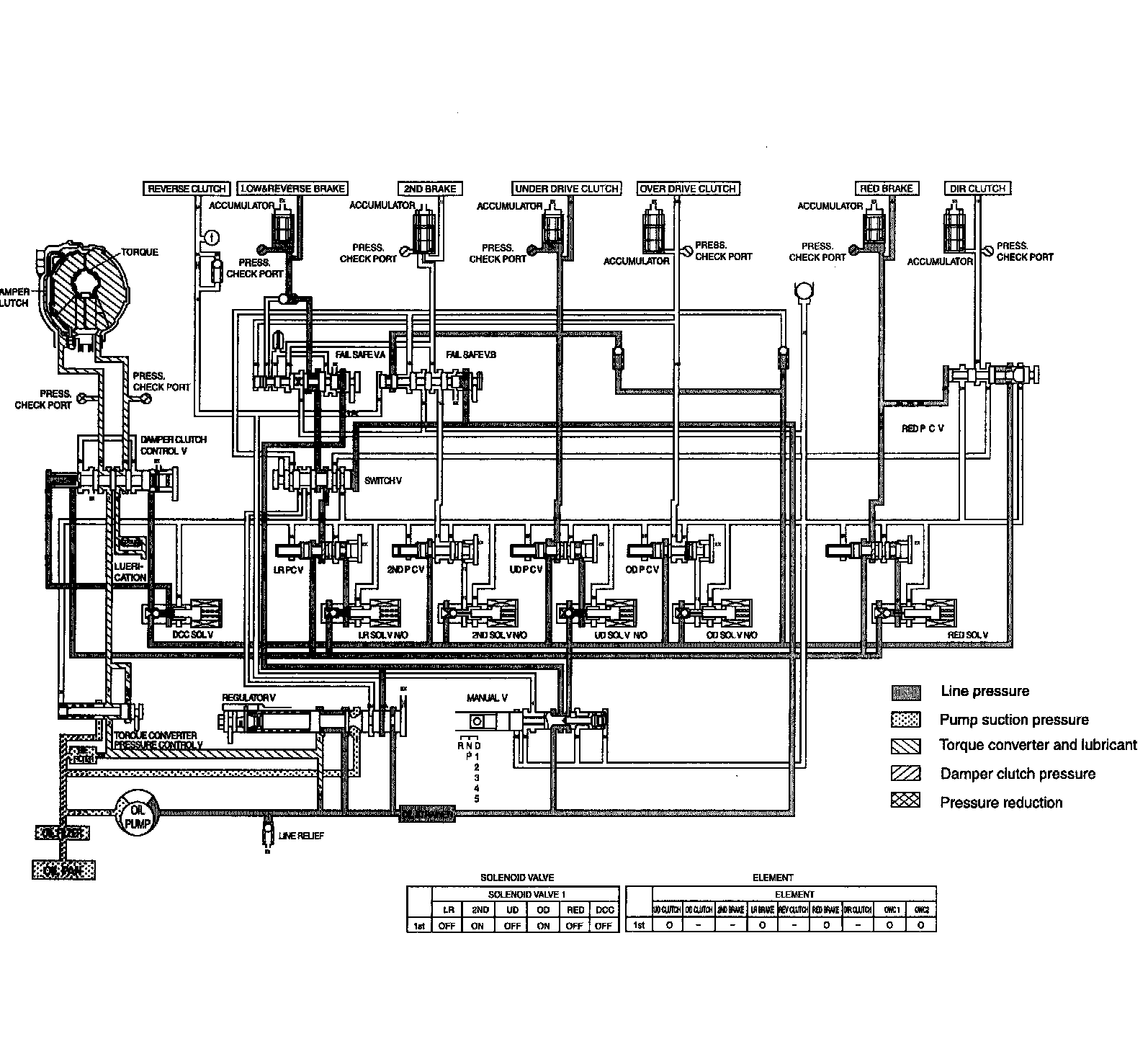

FIRST SPEED

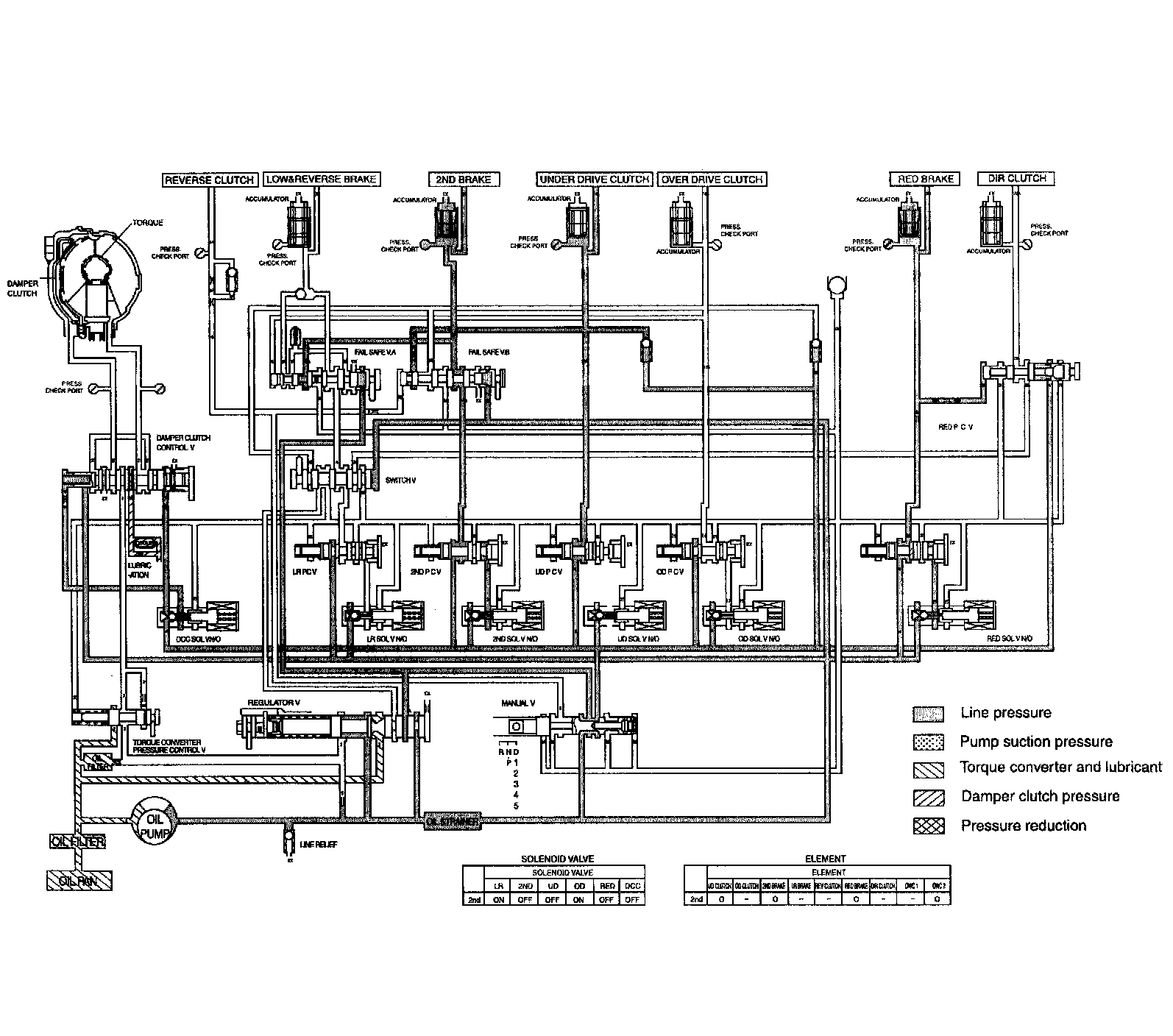

SECOND SPEED

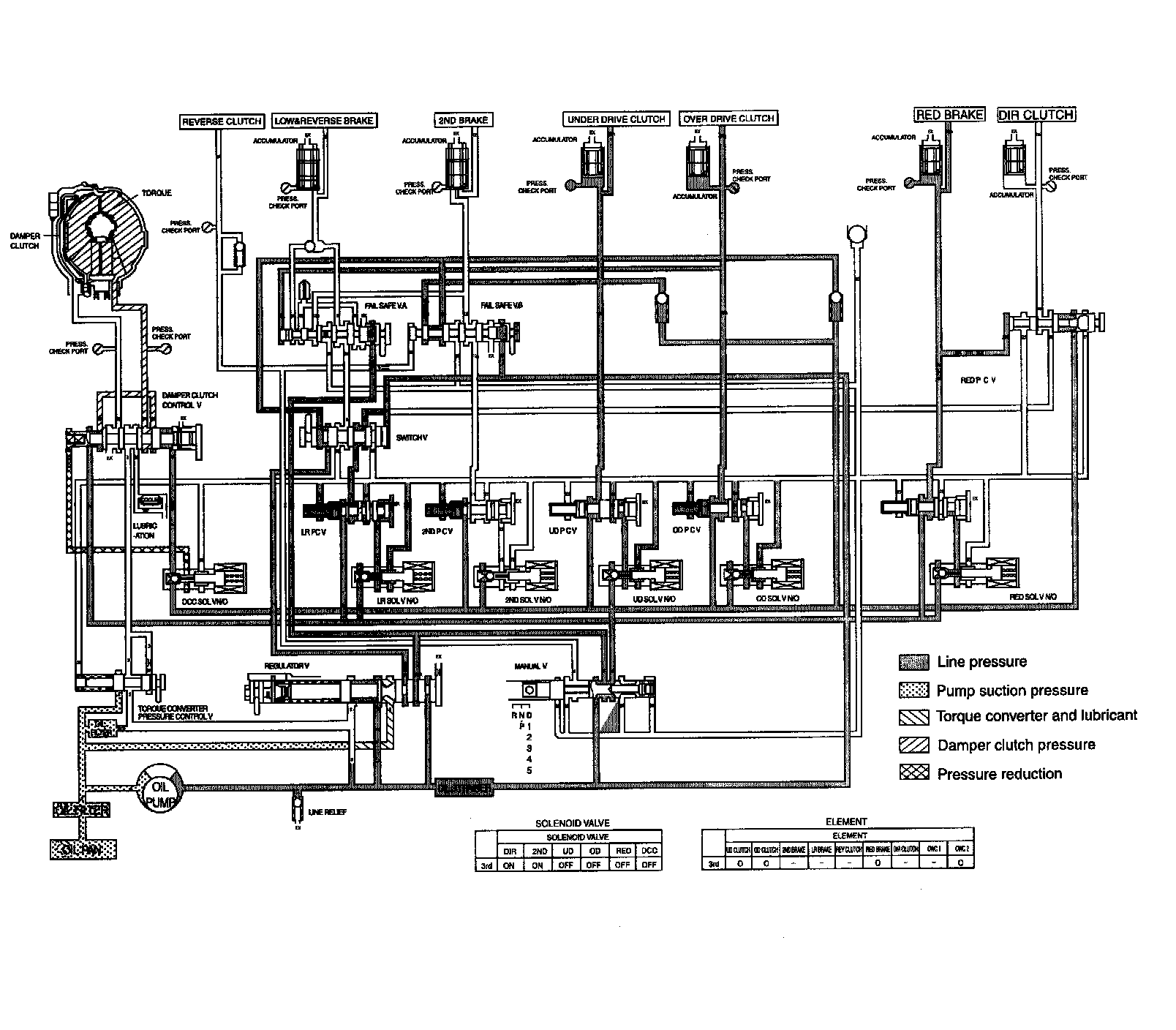

THIRD SPEED

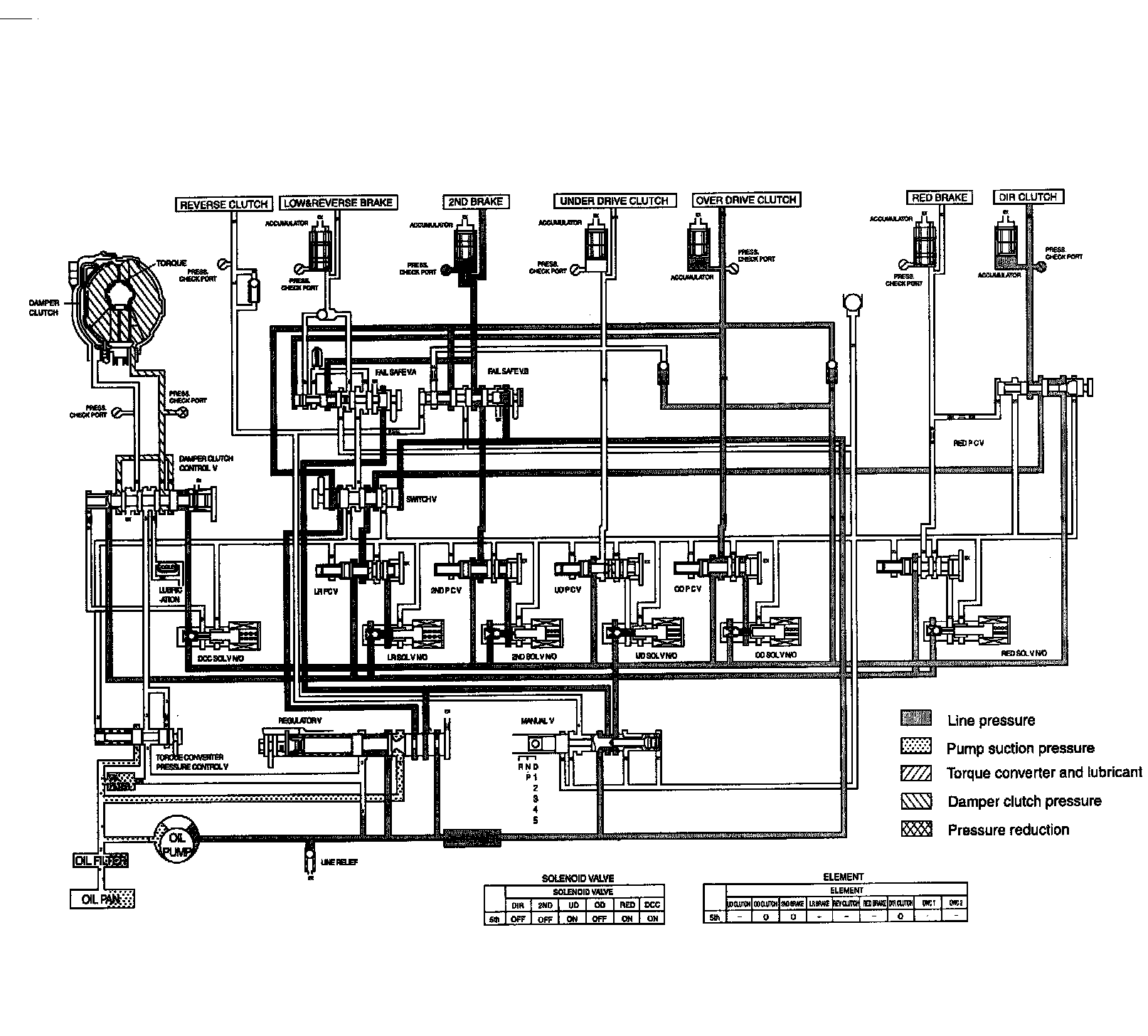

FOURTH SPEED

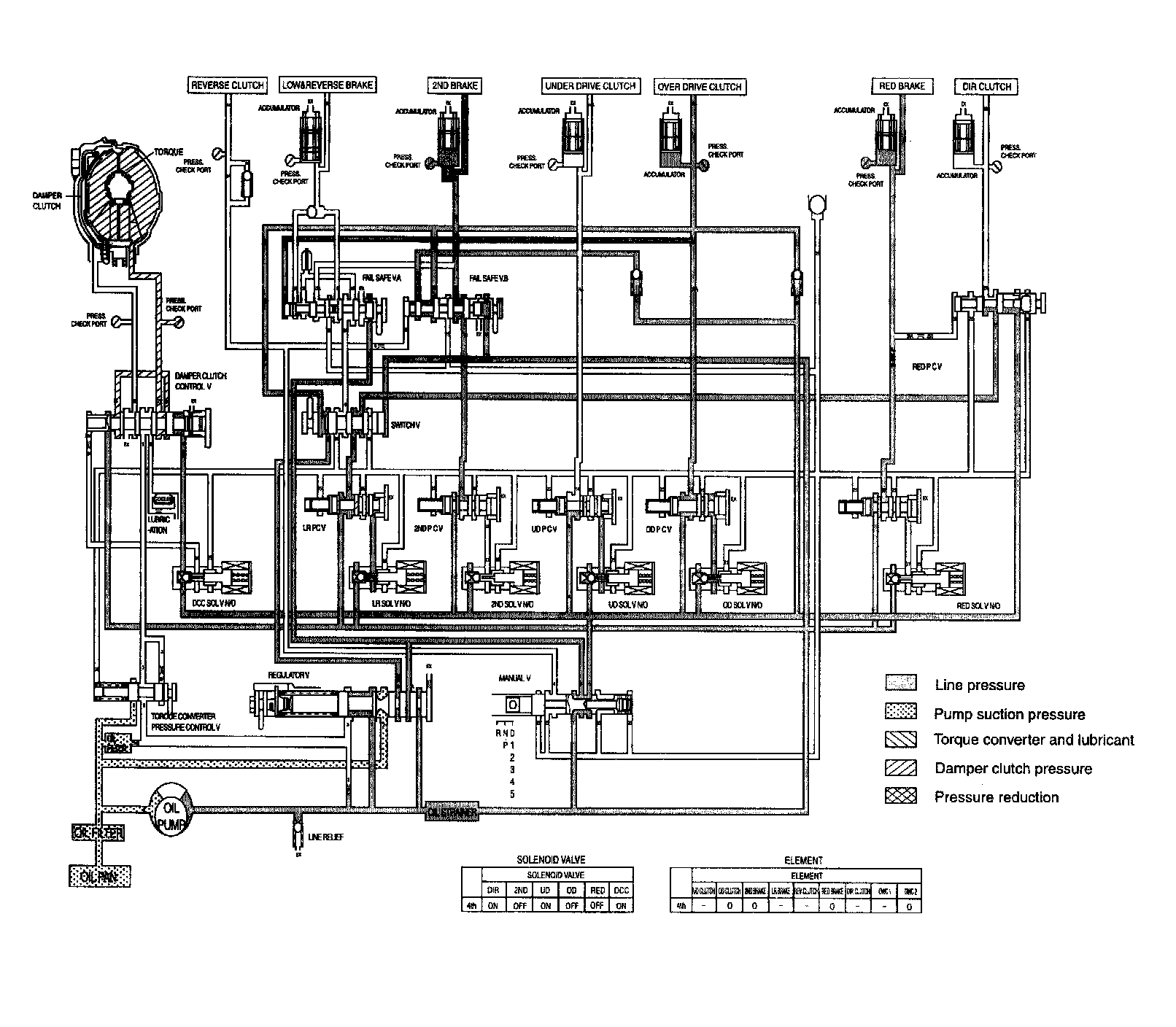

FIFTH SPEED

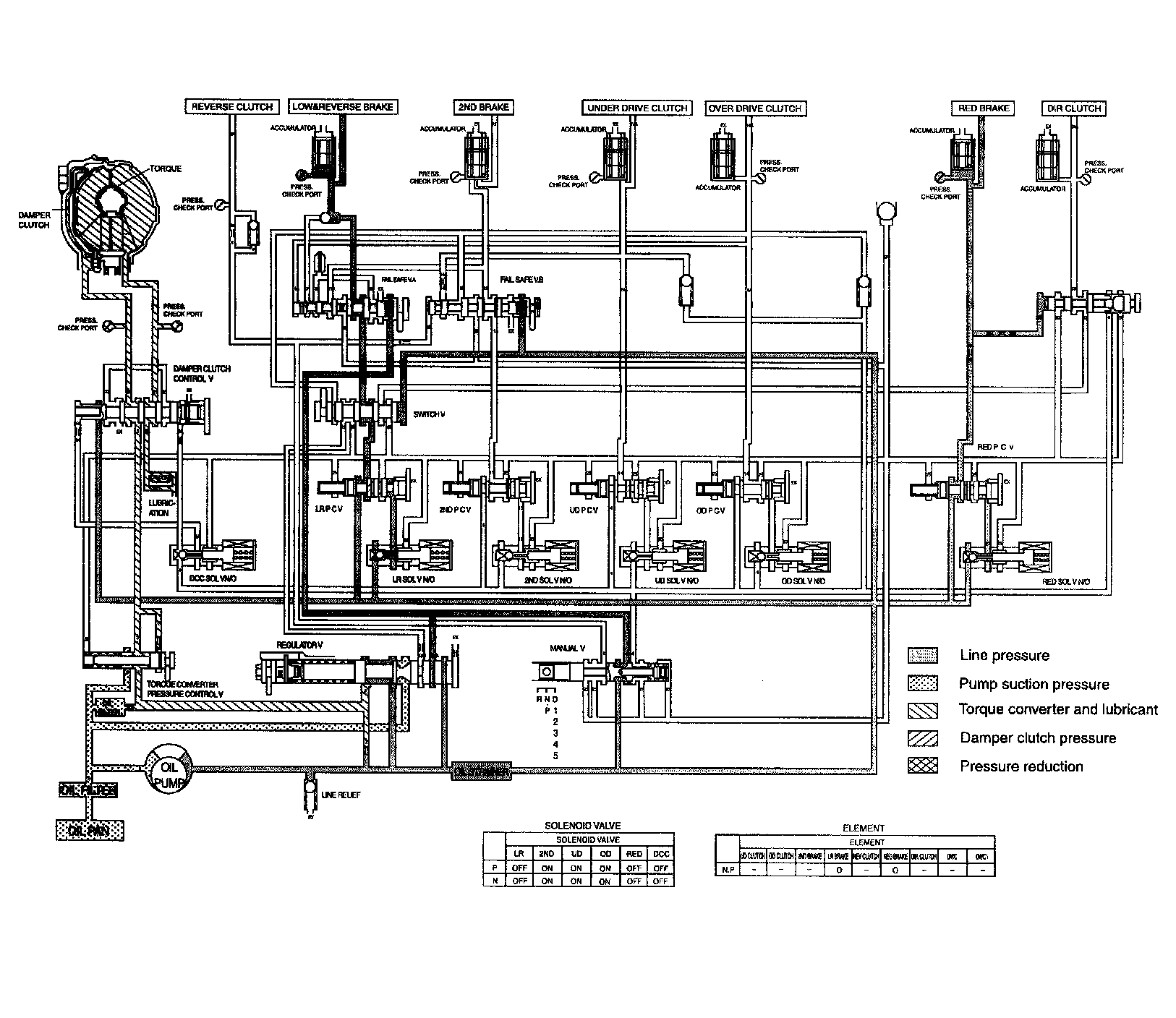

NEUTRAL AND PARKING

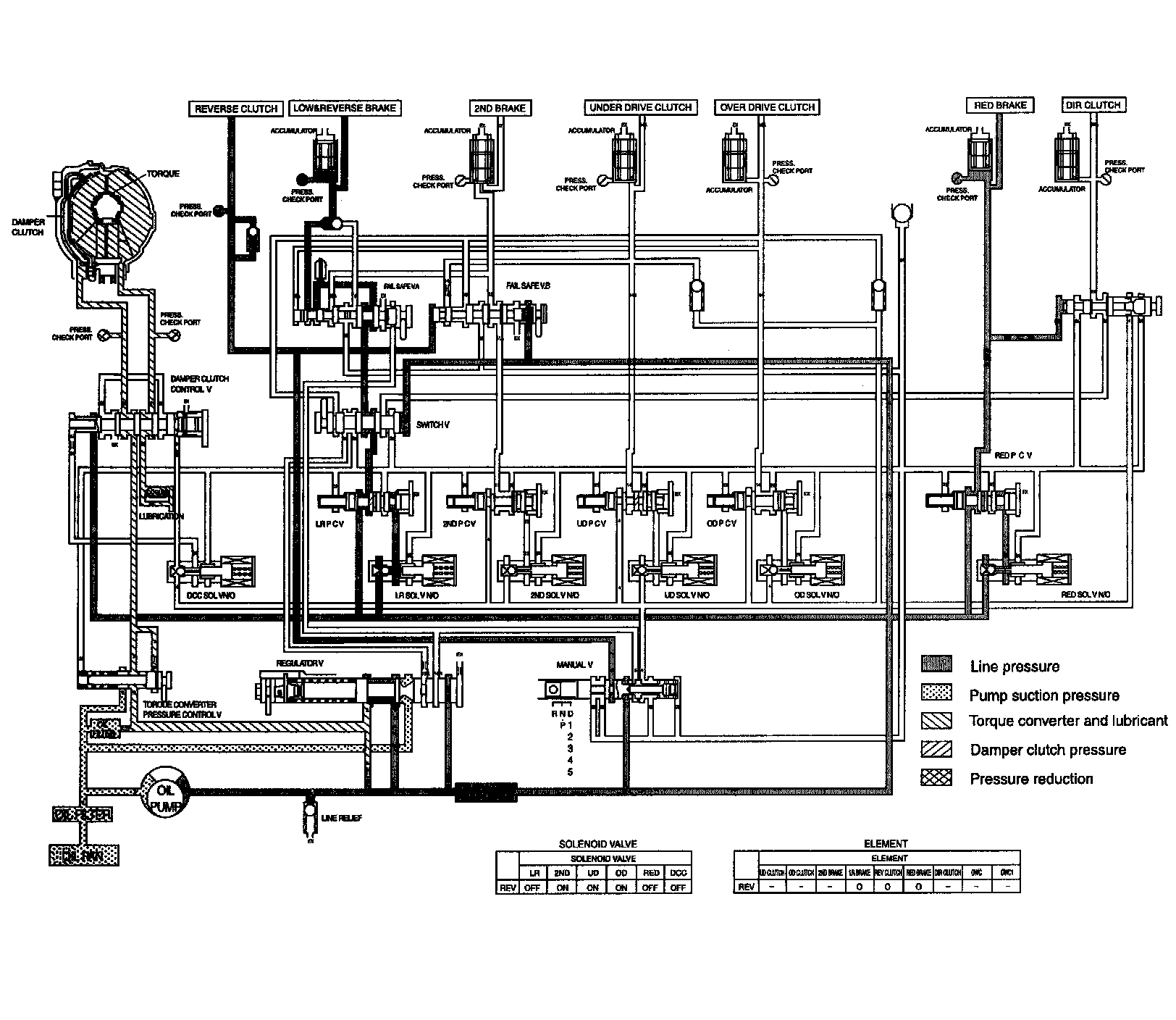

REVERSE
