Home >> Kia >> 2005 >> Amanti V6-3.5L >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Multiple Junction Connector >> Diagrams >> Short Connector

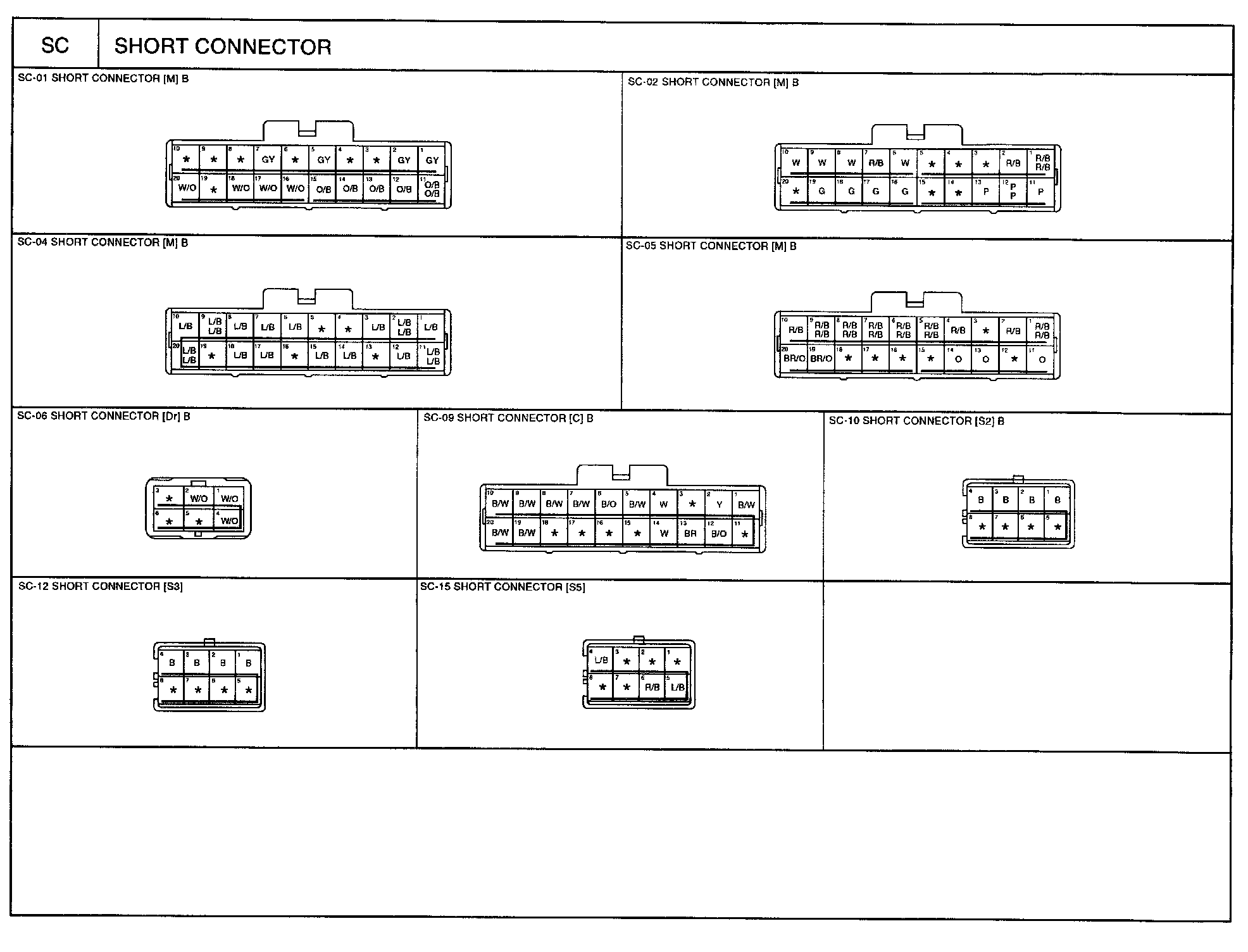

Short Connector

SC-01 - SC-15:
