Home >> Kia >> 2005 >> Amanti V6-3.5L >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Multiple Junction Connector >> Diagrams >> Common Connector >> X-30 - X-39

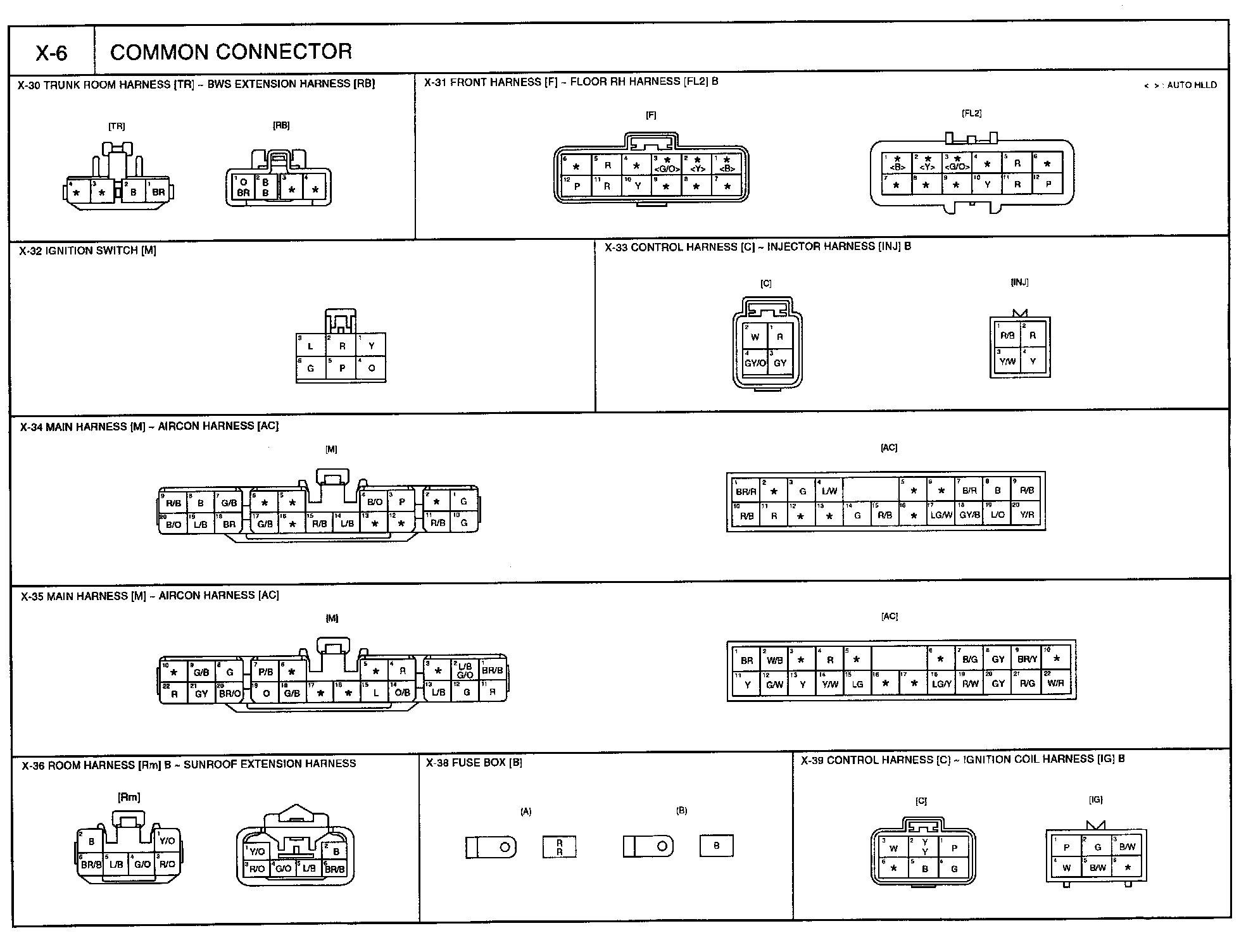

X-30 - X-39

X-30 - X-39:
