Home >> Kia >> 2005 >> Amanti V6-3.5L >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Multiple Junction Connector >> Diagrams >> Common Connector >> X-16 - X-21

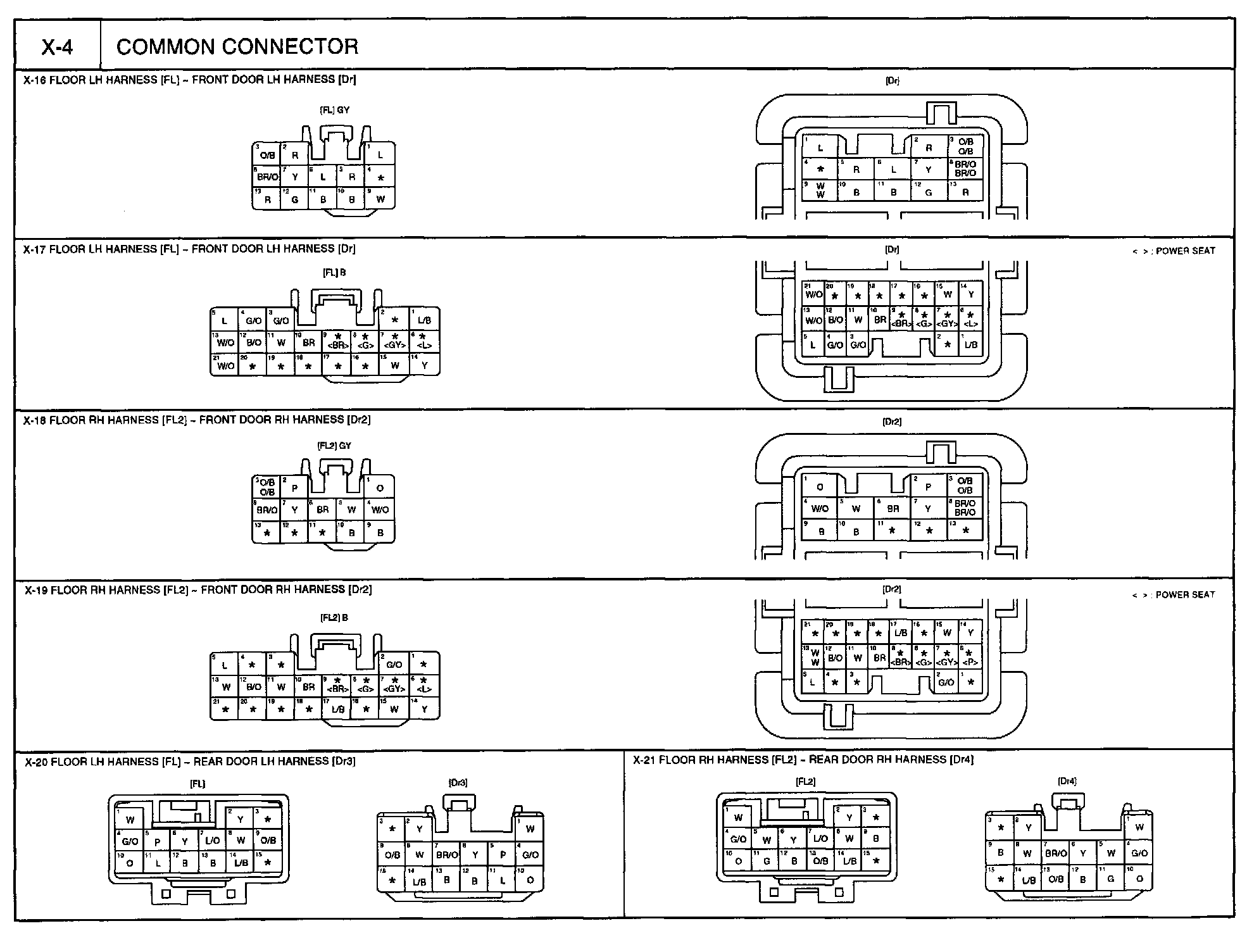

X-16 - X-21

X-16 - X-21:
