Rear Lap / Shoulder Belt Assembly

Rear Seat Belt:

REMOVAL AND INSTALLATION

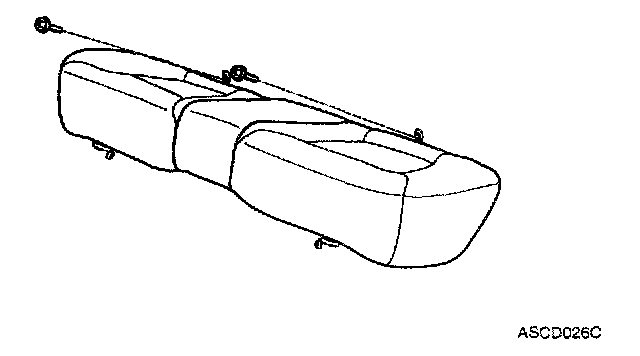

1. Remove rear seat cushion.




1. Release seat cushion stopper.




2. Remove seat cushion bolts(2).

Tightening torque:
17 - 26 N.m (1.7 - 2.6 Kg.m, 12.3 - 18.8 Ib.ft)

3. Disconnect seat cushion connector.

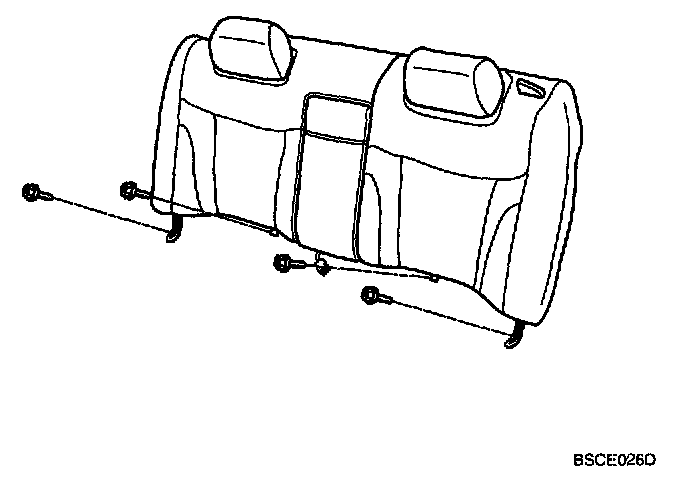

2. Remove rear seatback.




1. Remove seat back bolts(4).

Tightening torque:
17 - 26 N.m (1.7 - 2.6 Kg.m, 12.3 - 18.8 Ib.ft)

2. Disconnect seatback & airbag connector.

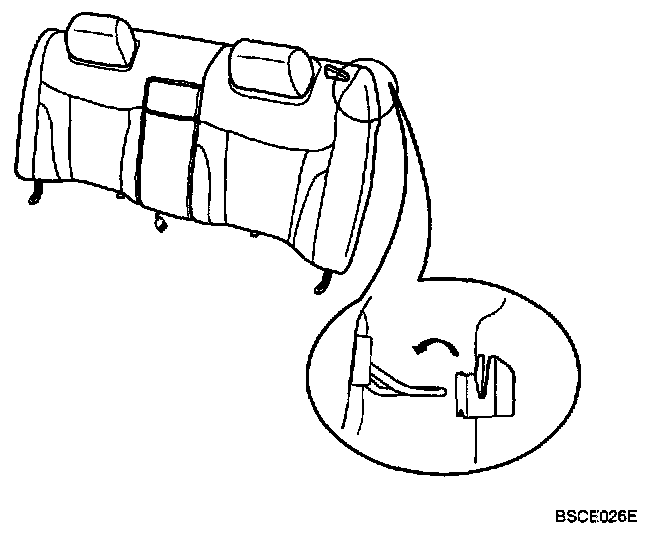

3. Release seatback stopper, and then remove seatback.

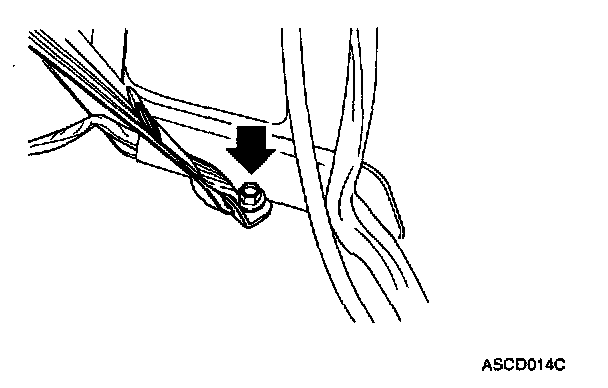

3. Remove rear seat belt lower anchor bolt.

Tightening torque:
40 - 55 N.m (4.0 - 5.5 Kg.m, 28.9 - 39.8 Ib.ft)

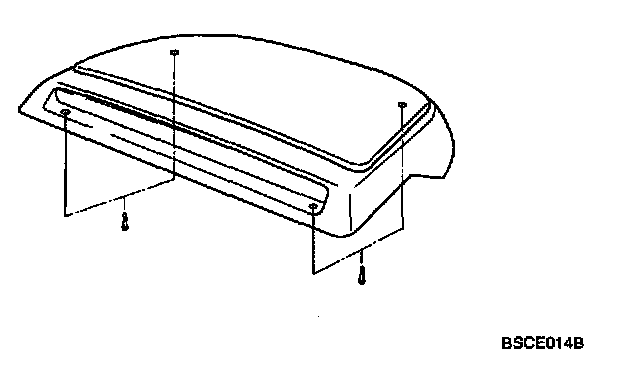

4. Remove hi-mounted brake lights.




1. Remove hi-mounted brake lights screws.
2. Disconnect hi-mounted brake lights connector.

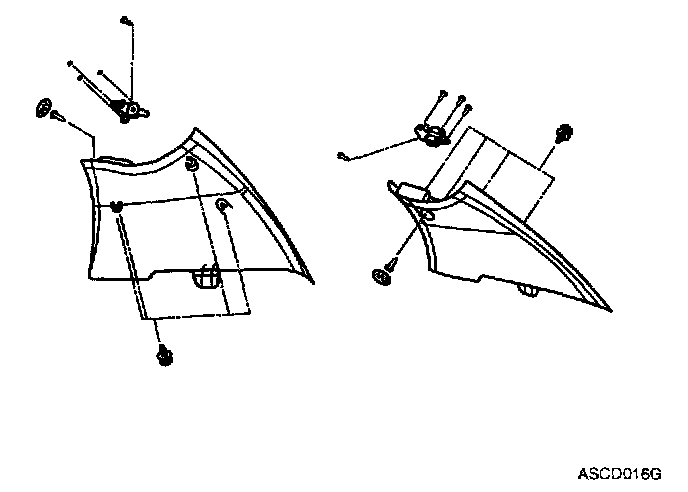

5. Remove rear pillar trim.
1. Remove rear pillar trim blanking cover.




2. Remove rear pillar trim screw(1).

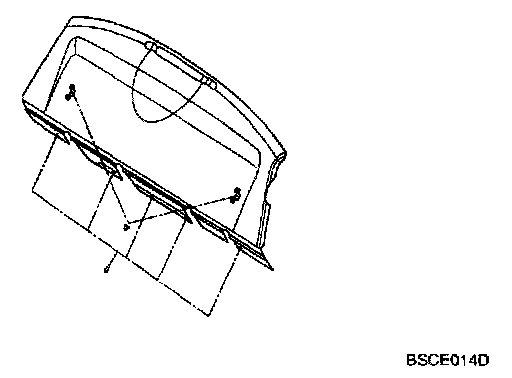

6. Remove package tray.




1. Remove package tray screws(5).
2. Disconnect package tray connector.
3. Remove rear seat belt from package tray.

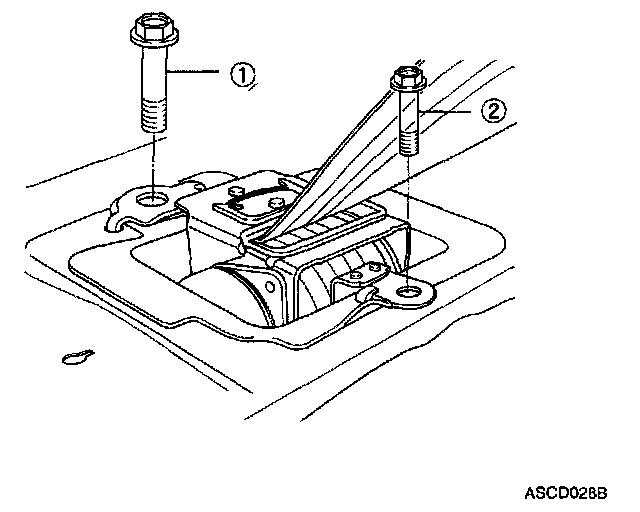

7. Remove rear seat belt retractor.




1. Remove rear seat belt retractor bolts(2).

Tightening torque
Retractor bolt1(7/16") :
40 - 55 N.m (4.0 - 5.5 Kg.m, 28.9 - 39.8 Ib.ft)

Retractor bolt2(M6) :
18 - 27 N.m (1.8 - 2.7 Kg.m, 13.0 - 19.5 Ib.ft)

8. Install in reverse order of removal.

WARNING: Exercise care to install belt so there are no twists in it. A twisted belt may be harmful to a passenger in a serious accident. A twisted belt alters distribution of force resulting from sudden deceleration.
