Electrical Specifications

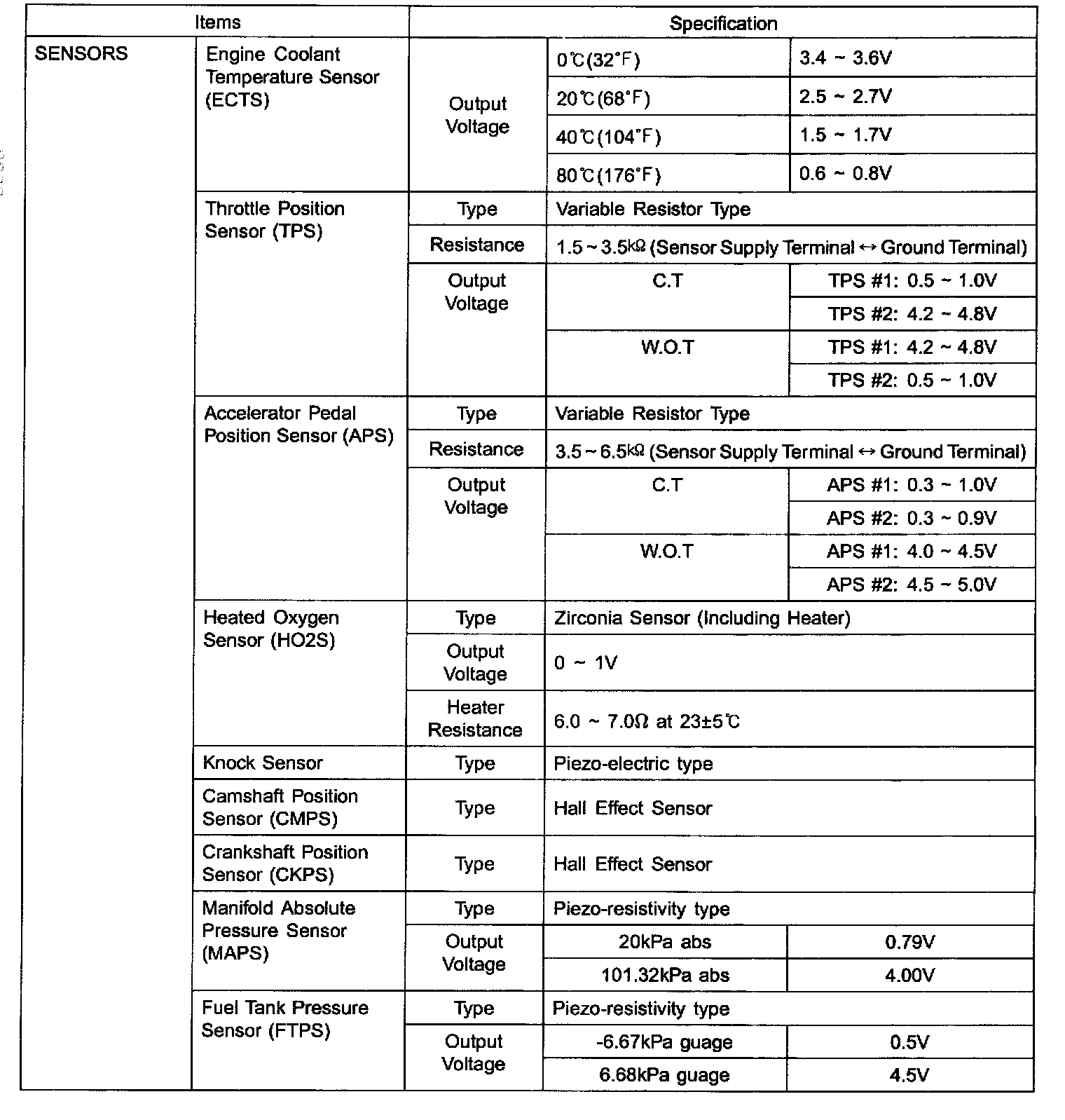

General Specifications - Engine Management System Part 1:

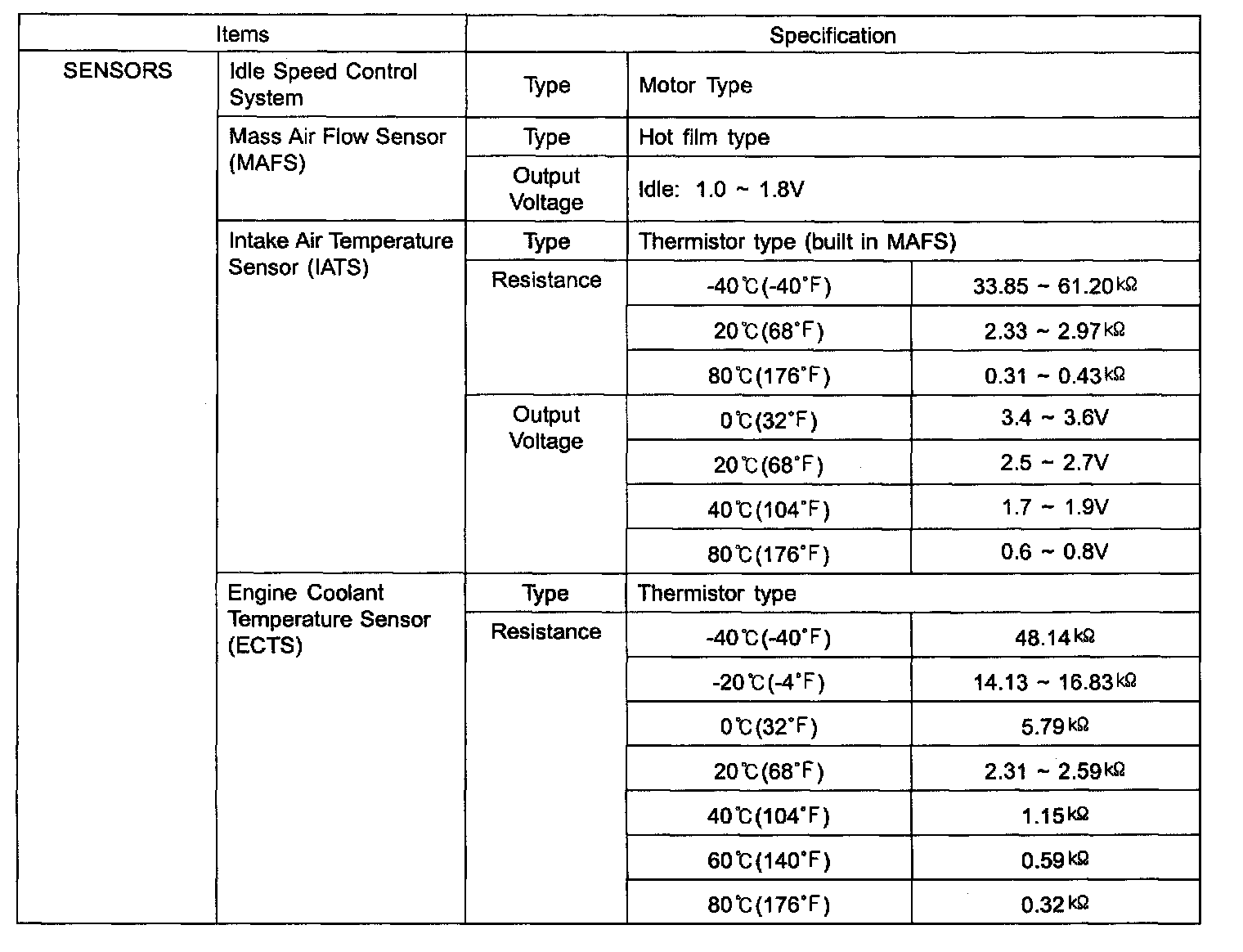

General Specifications - Engine Management System - Part 2:

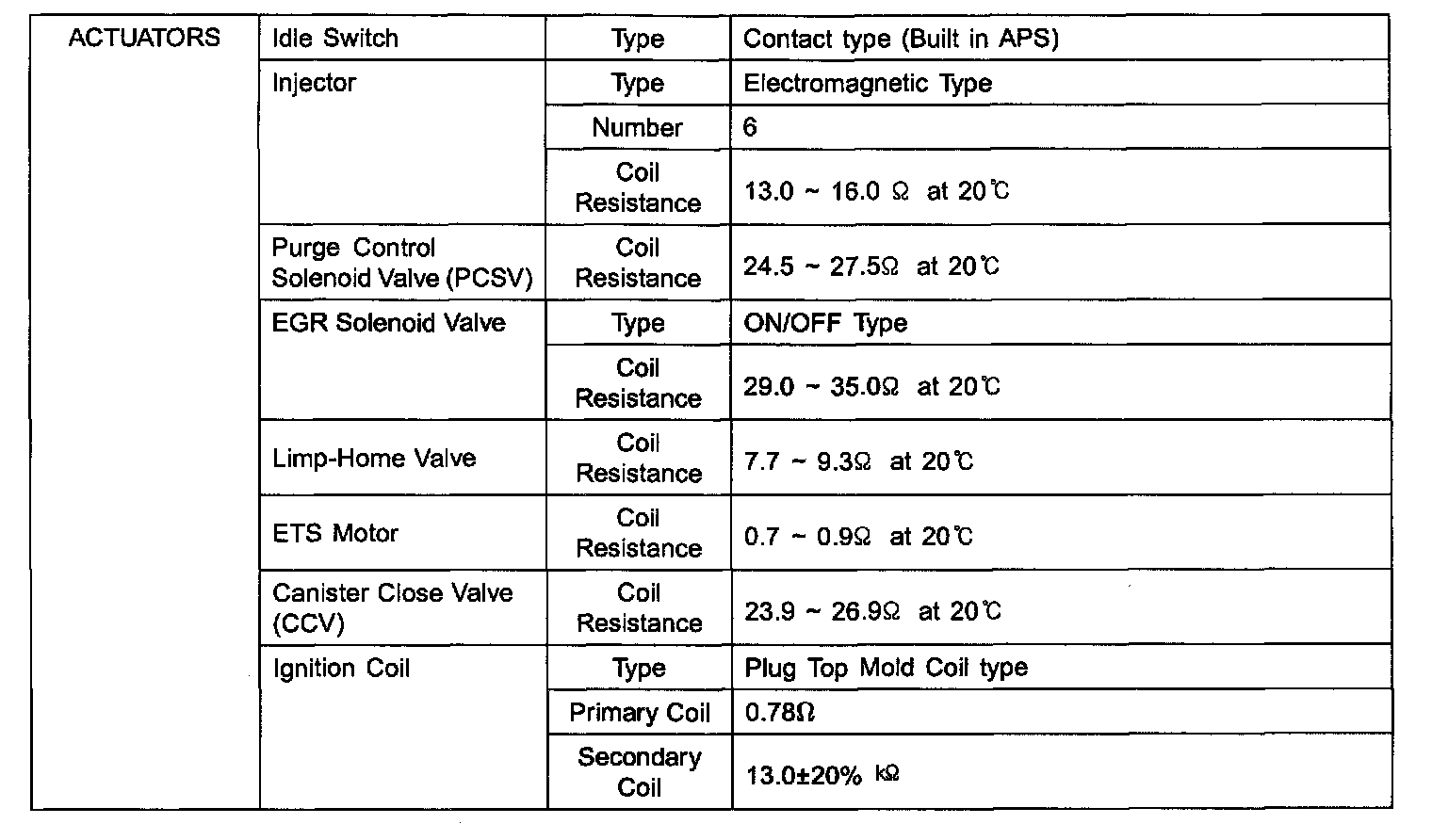

General Specifications - Engine Management System - Part 3:
