Leakage Test

LEAKAGE TEST FOR EVAPORATIVE EMISSION CONTROL SYSTEM

1. Turn ignition key "ON".
2. Connect Hi-Scan PRO to OBD-II connector using a DLC (Data Link Connector).
3. Turn ignition key "START".

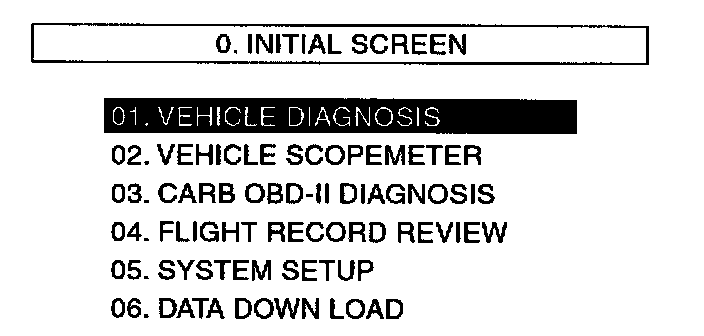

4. Select "01. VEHICLE DIAGNOSIS".

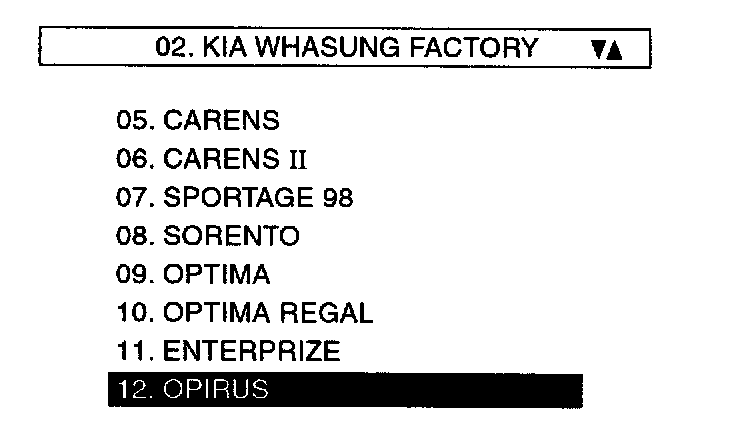

5. Select "12. OPIRUS/AMANTI".

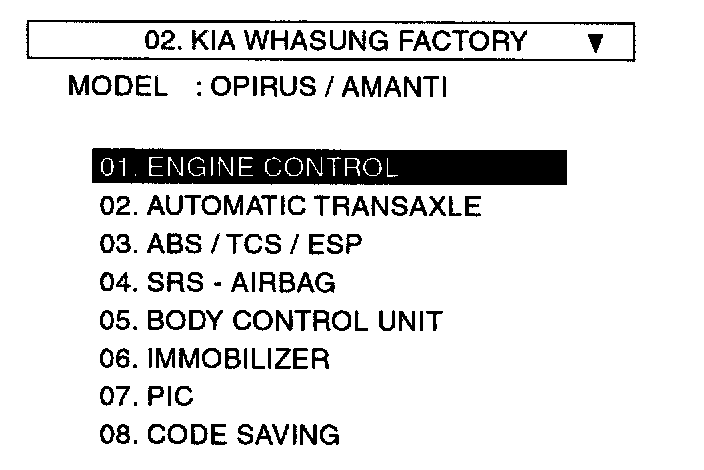

6. Select "01. ENGINE CONTROL".

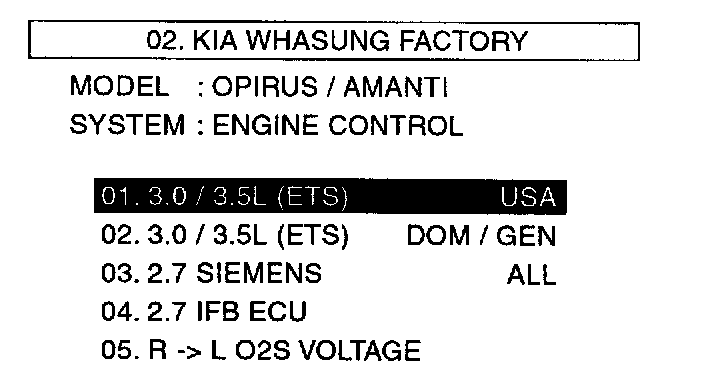

7. Select "01. 3.0/3.5L (ETS) USA".

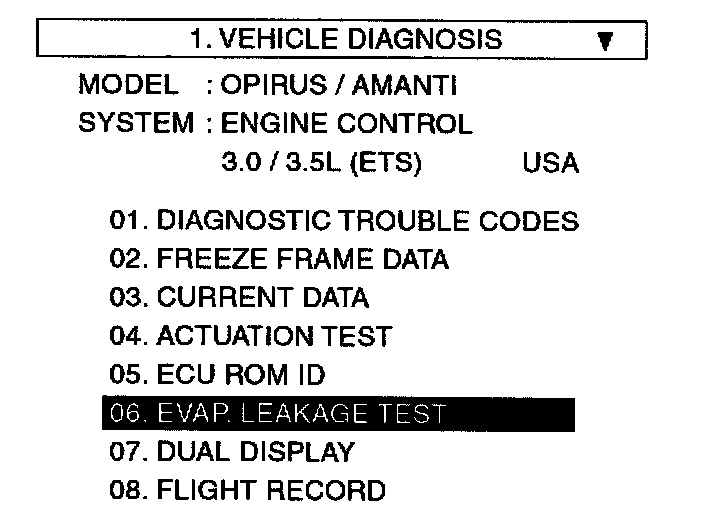

8. Select "06. EVAP. LEAKAGE TEST".
9. If fault occurs, repair it according to troubleshooting procedure.
