Drive Belt: Adjustments

ADJUSTING DRIVE BELT AND TENSIONER

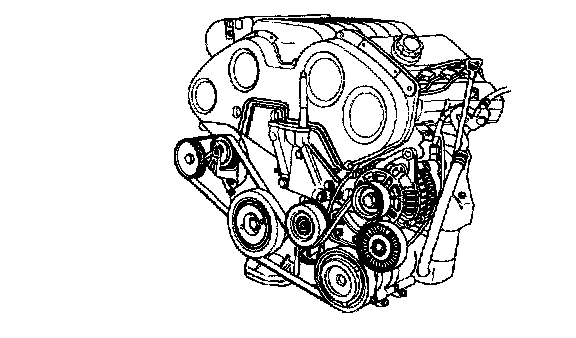

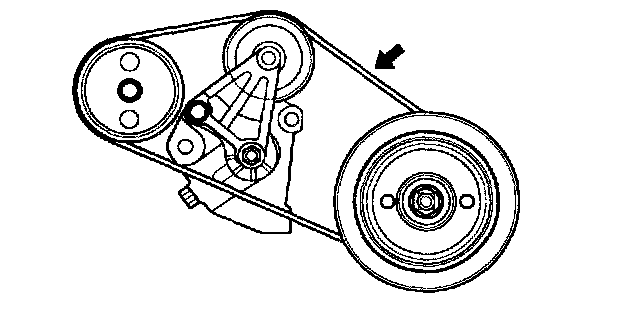

1. Hang the belt on the pulley of the tensioner and install the tensioner.
(If the tensioner is already installed, loosen its mounting bolts to allow belt installation.)

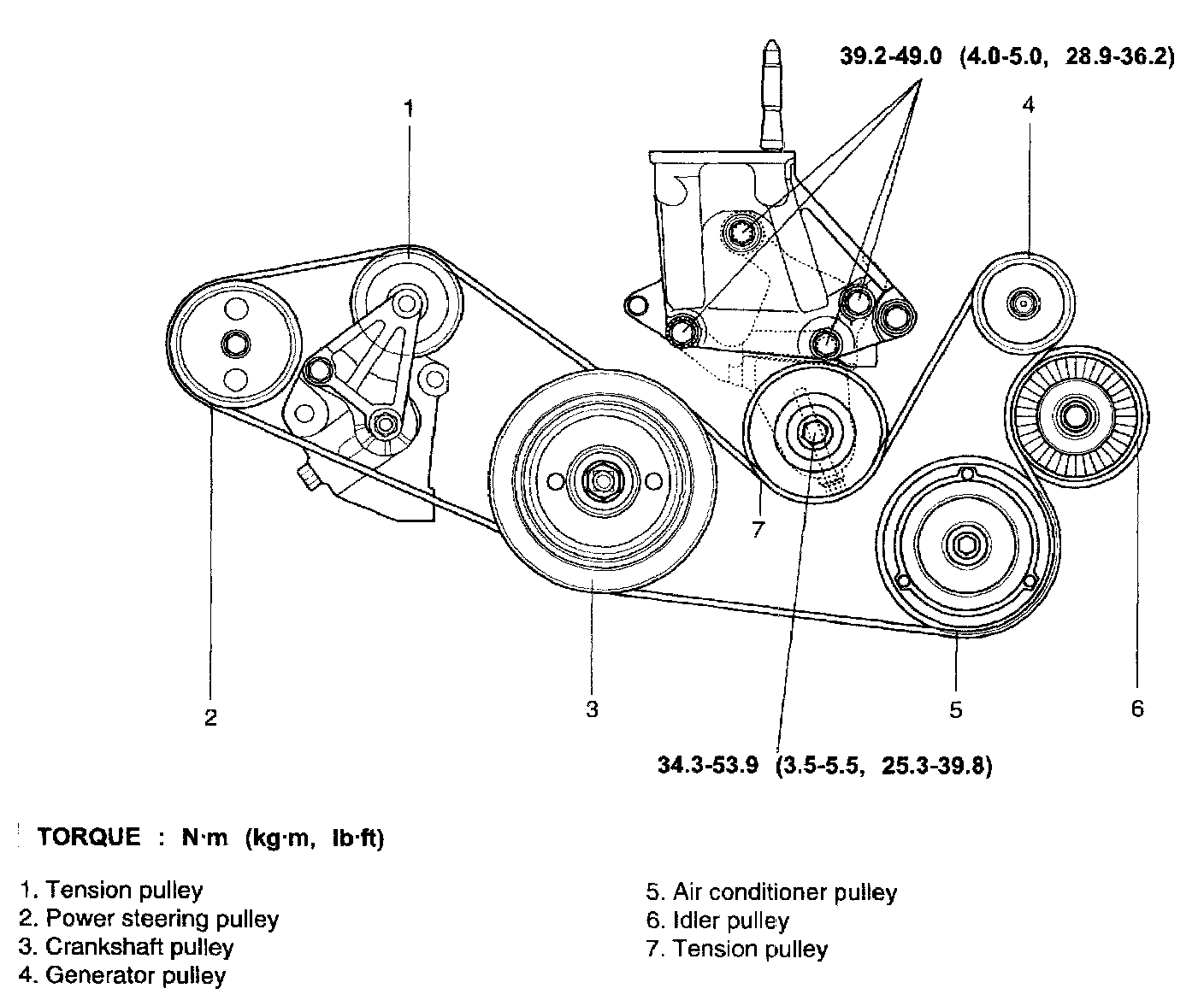

Tightening torque
Tensioner assembly bolt: 39.2 - 49.0 Nm (4.0 - 5.0 kg-m, 28.9 - 36.2 ft. lbs.)





2. Install power steering belt.





3. Install drive belt.

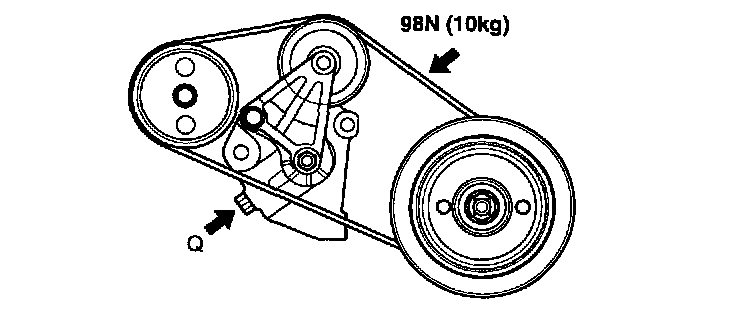

4. Adjust the power steering belt tension to specification by turning the adjusting bolt (Q) clockwise or counterclockwise

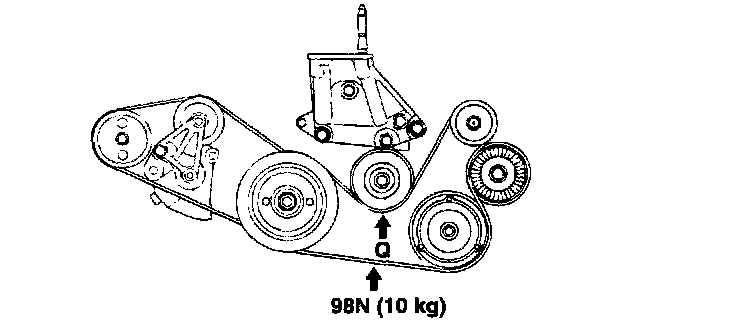

5. Adjust the drive belt tension to specification by turning the adjusting bolt (Q) clockwise or counterclockwise.

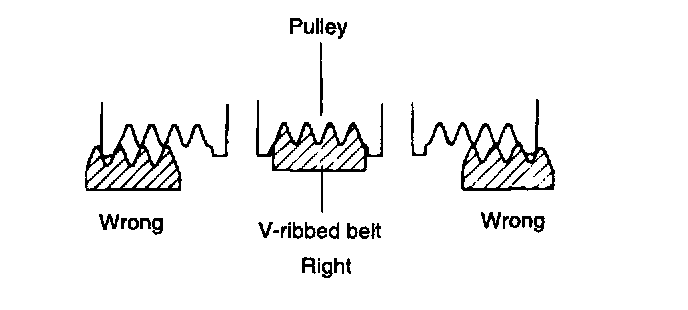

6. When installing the belt on the pulley, make sure it is centered on the pulley.
