Blower Motor Controller

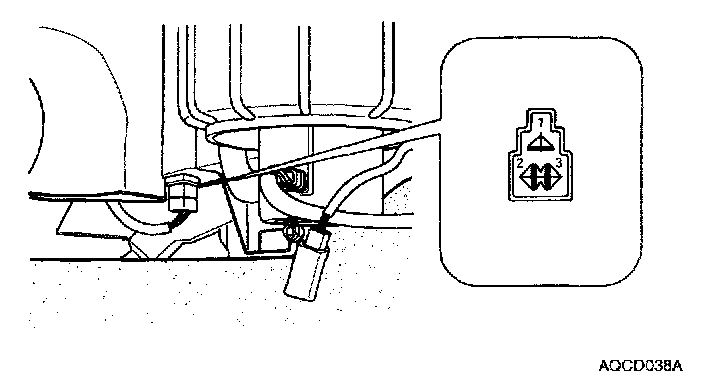

POWER TRANSISTOR

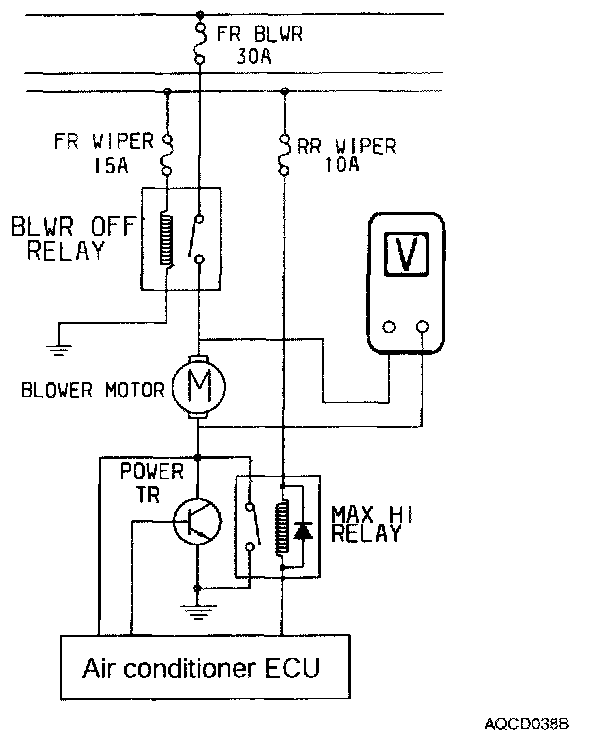

1. Manually operate the control switch and measure the voltage of blower motor between pin 1 and 2.
Check:

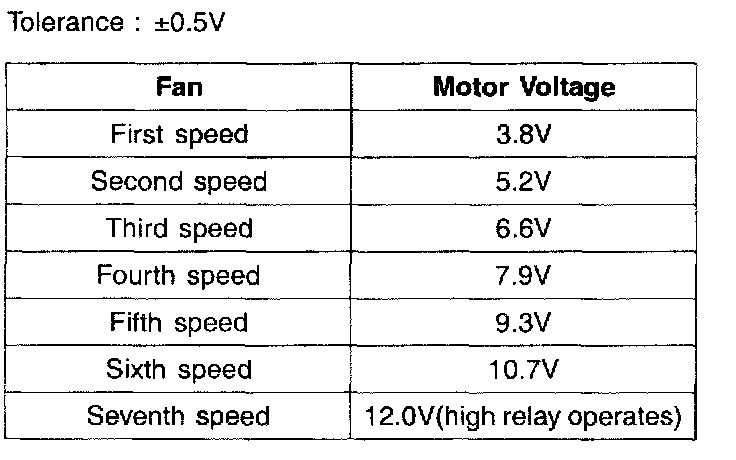

2. Select the control switch to raise voltage until high relay operates.
1. Manually operate the control switch and measure the voltage of blower motor between pin 1 and 2.
2. Select the control switch to raise voltage until high relay operates.
