Engine - Change Cylinder Head Valve Cover Assembly
SOURCE: KIA Technician Times Volume 7 Issue 6, 2004TITLE: Change Cylinder Head Valve Cover Assembly
APPLIES TO: Sedona, Sorento and Amanti vehicles with 3.5L engines
SERVICE TIP:
Before
New

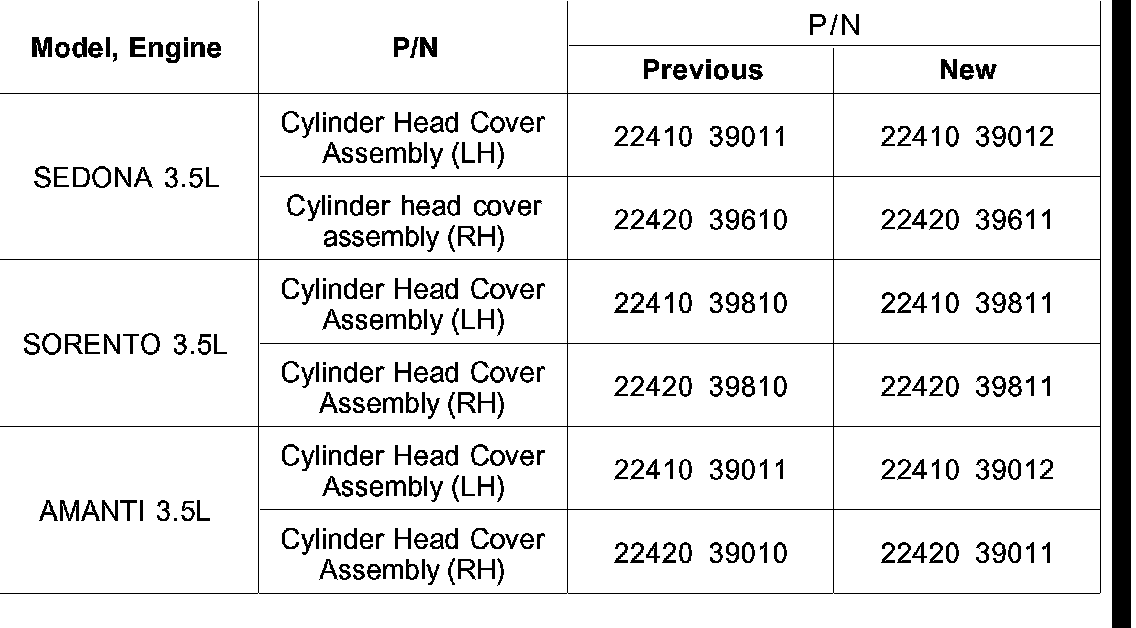

Incorporate valve cover design changes, effective 4/15/04. If an engine long block replacement is required, it will also be equipped with the new style valve covers built after 4/15/04. See below for explanation of design change:

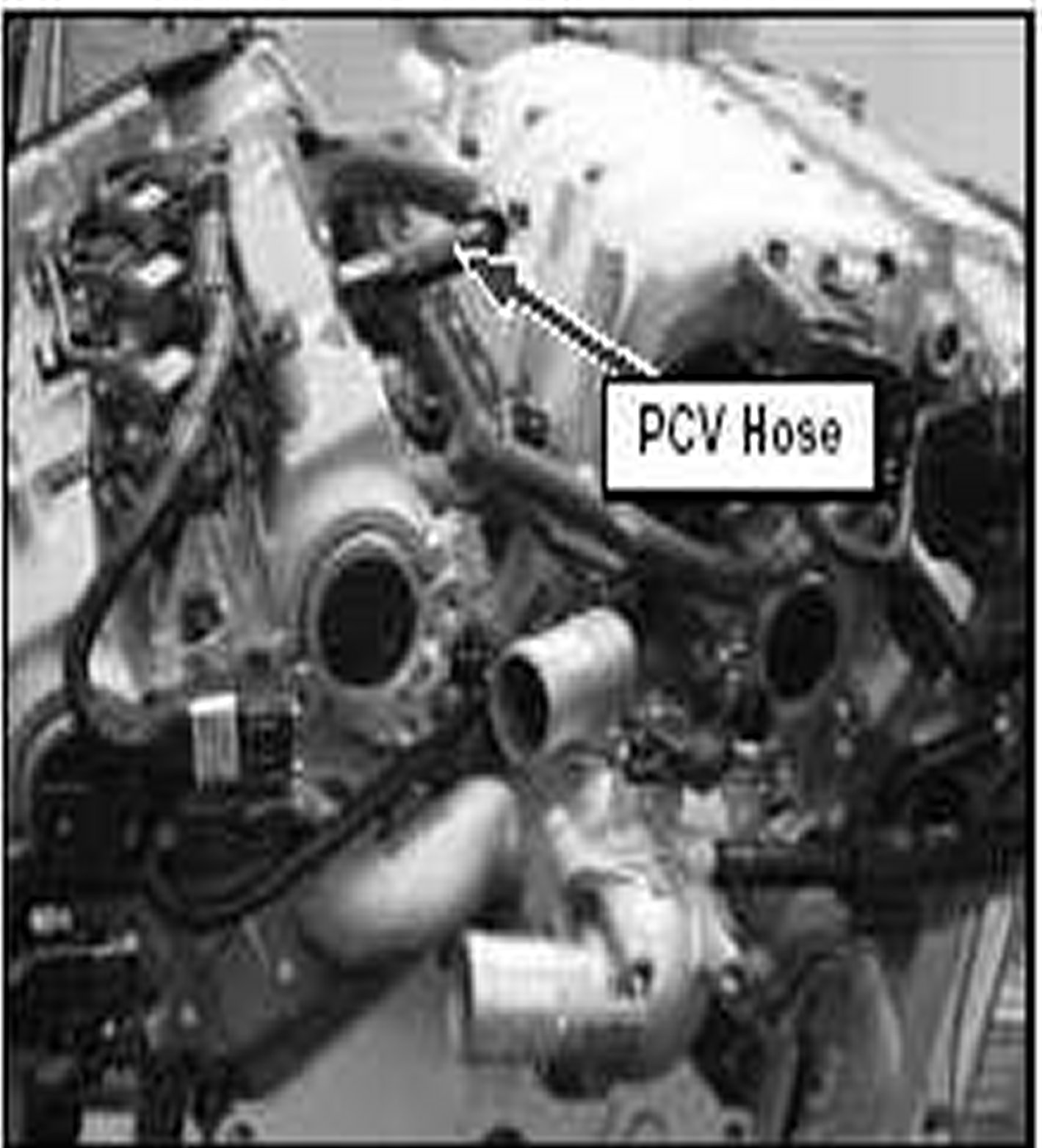

^ Blow-by hose and fitting of the cylinder head assembly (LH/RH sides) have been removed.
^ Drain pipe has been added on the cylinder head cover assembly (LH side)
