Shock Absorber

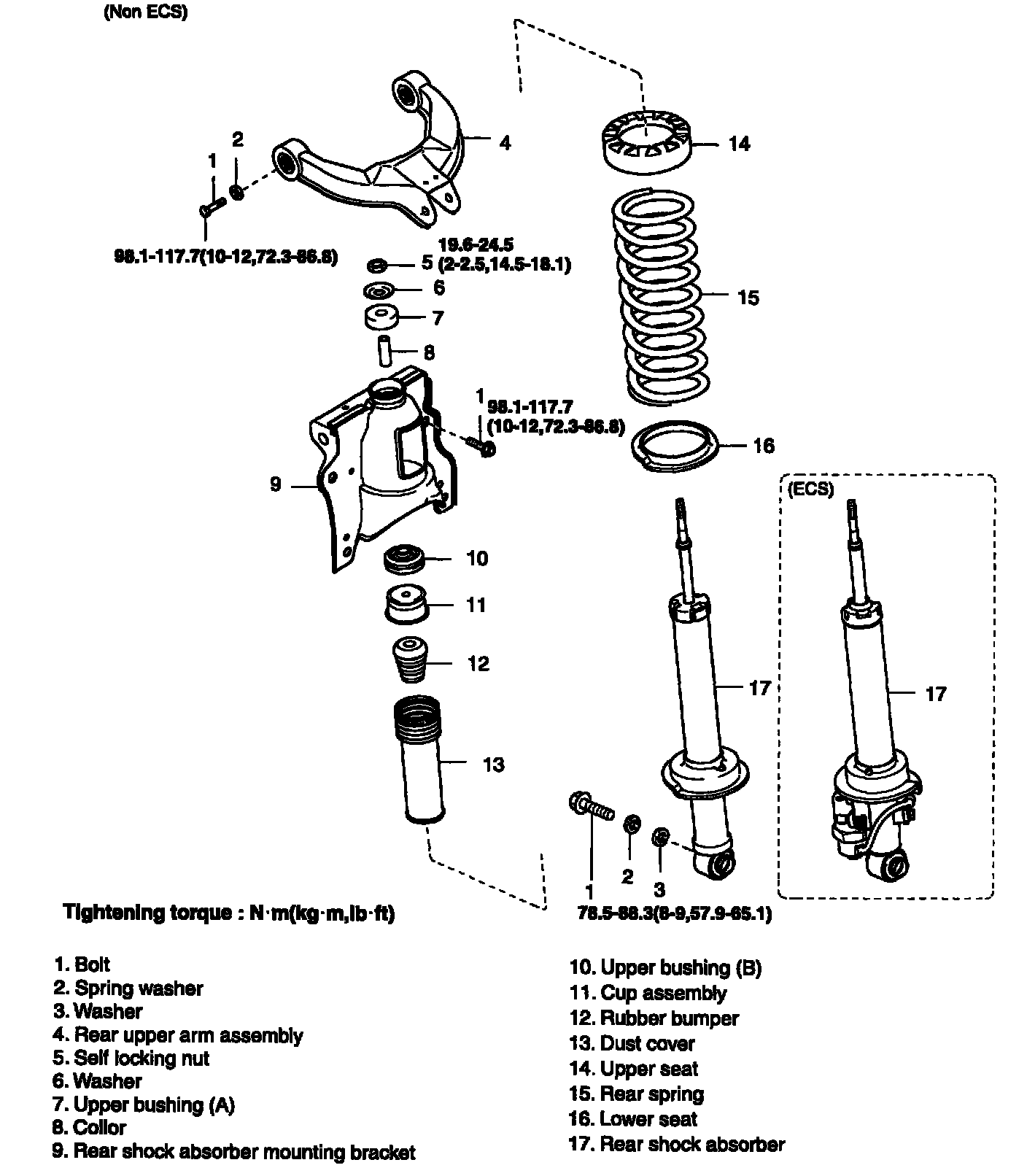

SHOCK ABSORBER





COMPONENTS

CAUTION: Replace self locking nuts with new ones after removal.
