Heater and Air Conditioning System

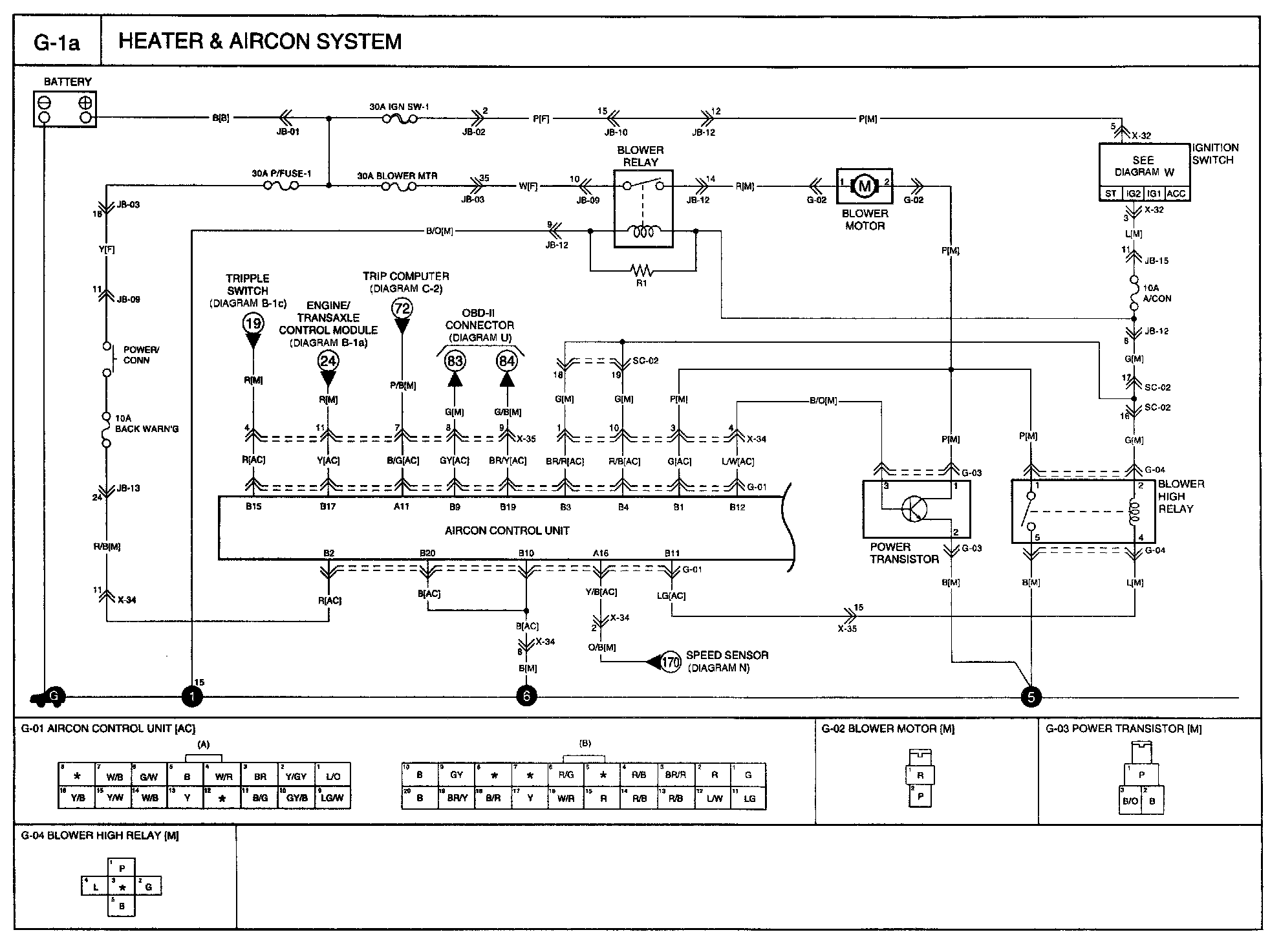

Diagram G-1a:

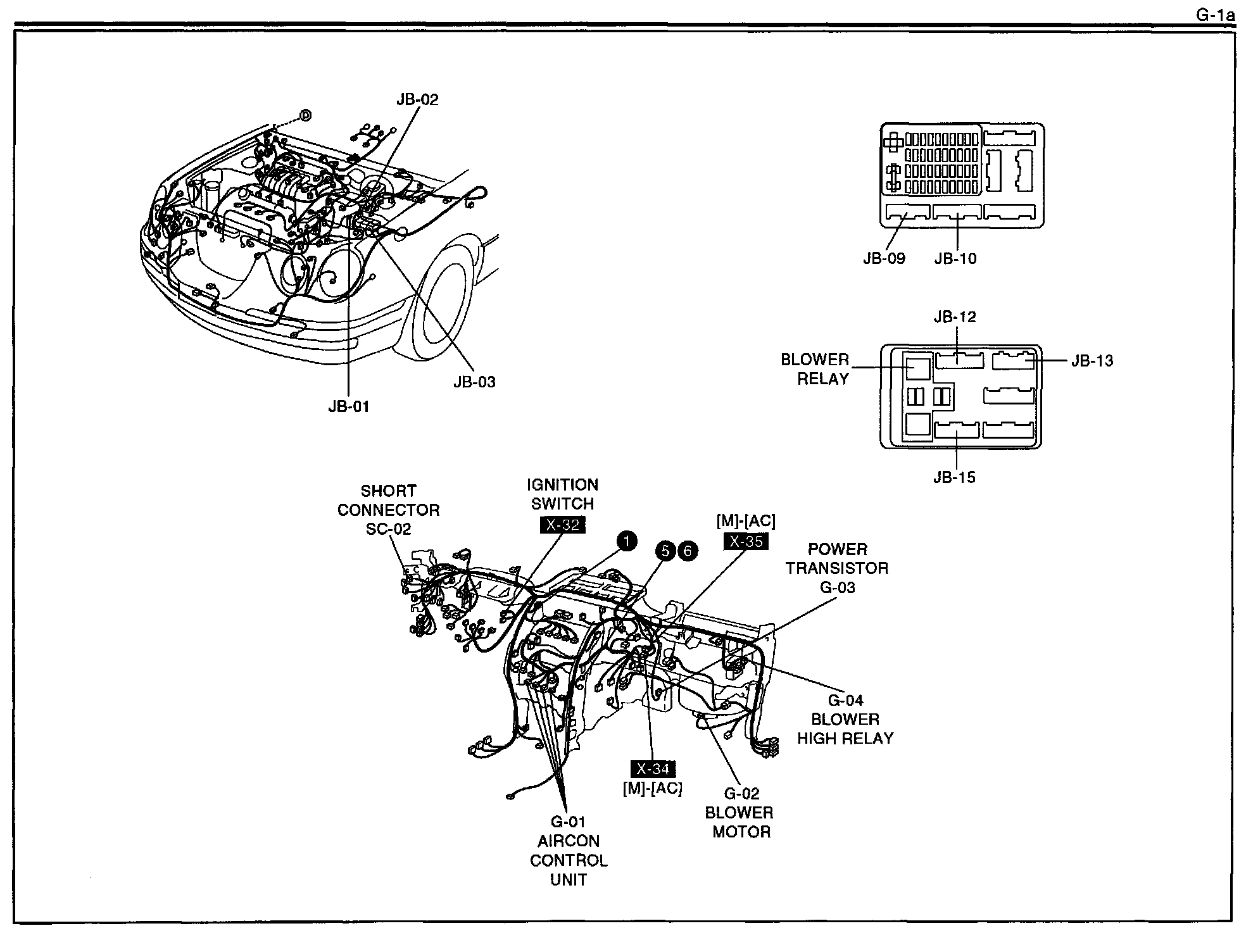

Routing View G-1a:

Diagram G-1b:

Routing View G-1b:

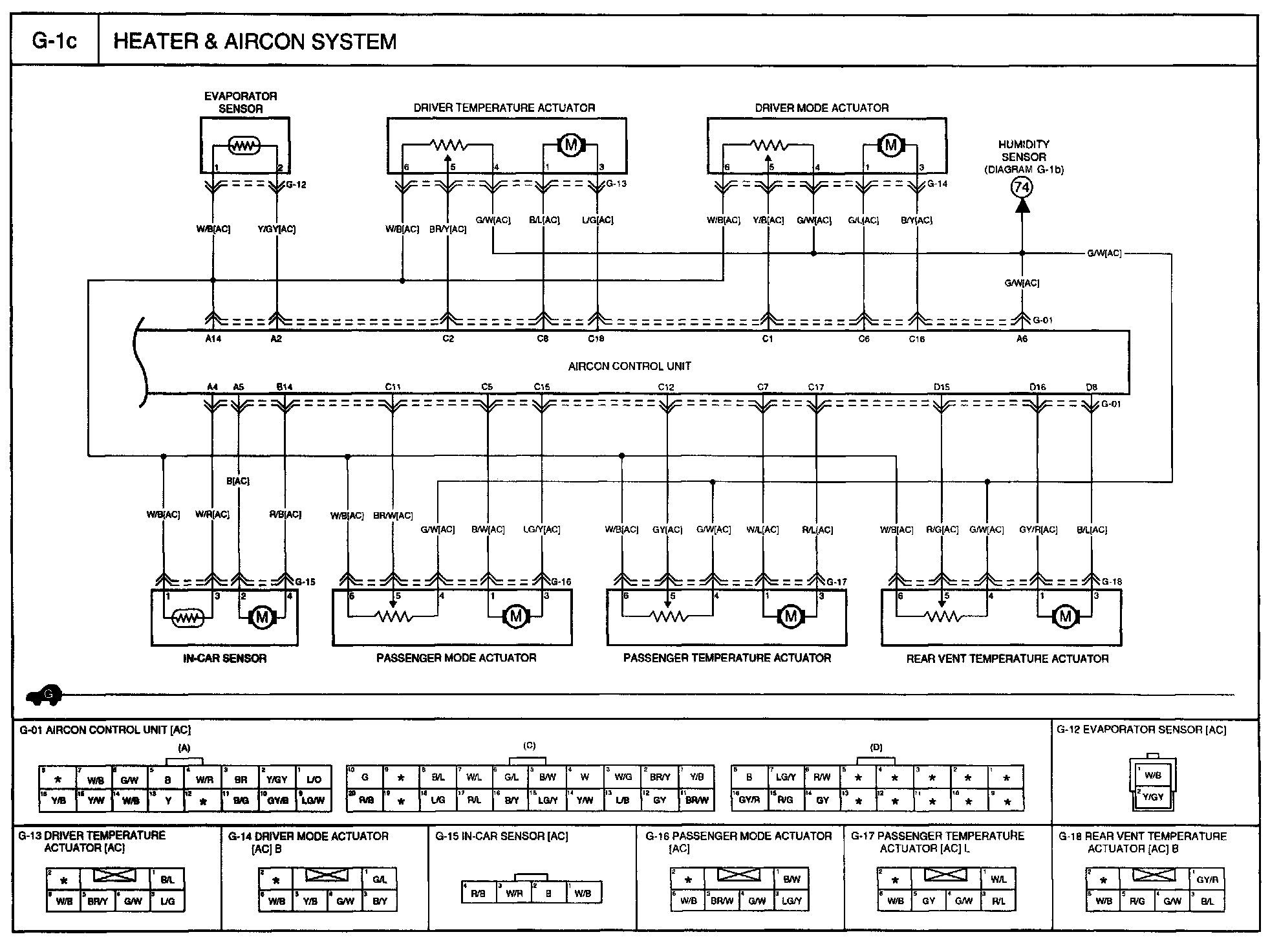

Diagram G-1c:

Routing View G-1c:

Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
