Front Brake Disc Runout Check

FRONT BRAKE DISC RUNOUT CHECK

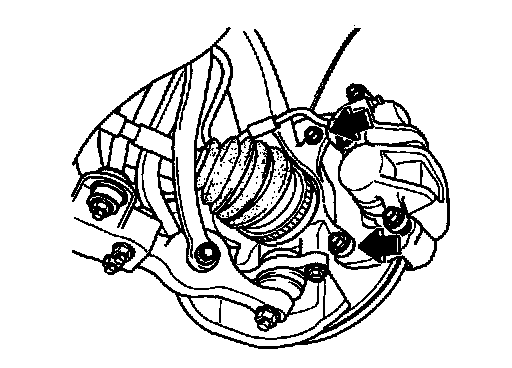

1. Remove the caliper assembly to the knuckle and suspend with a wire.
Tightening torque: 69 - 85 Nm (6.9 - 8.5 kg-m, 49 - 61 ft. lbs.)

NOTE: Do not remove the brake hose.

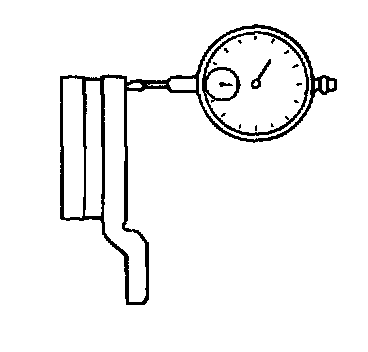

2. Place a dial gauge about 5 mm (0.2 inch) from the outer circumference of the brake disc, and measure the run out of the disc.
Brake disc run out
Limit: 0.03 mm (0.0012 inch) or less
