Inspection Procedure 5

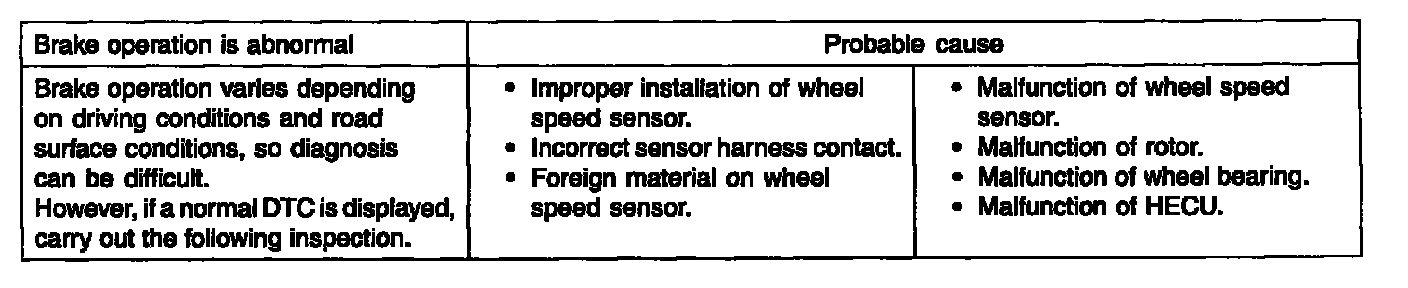

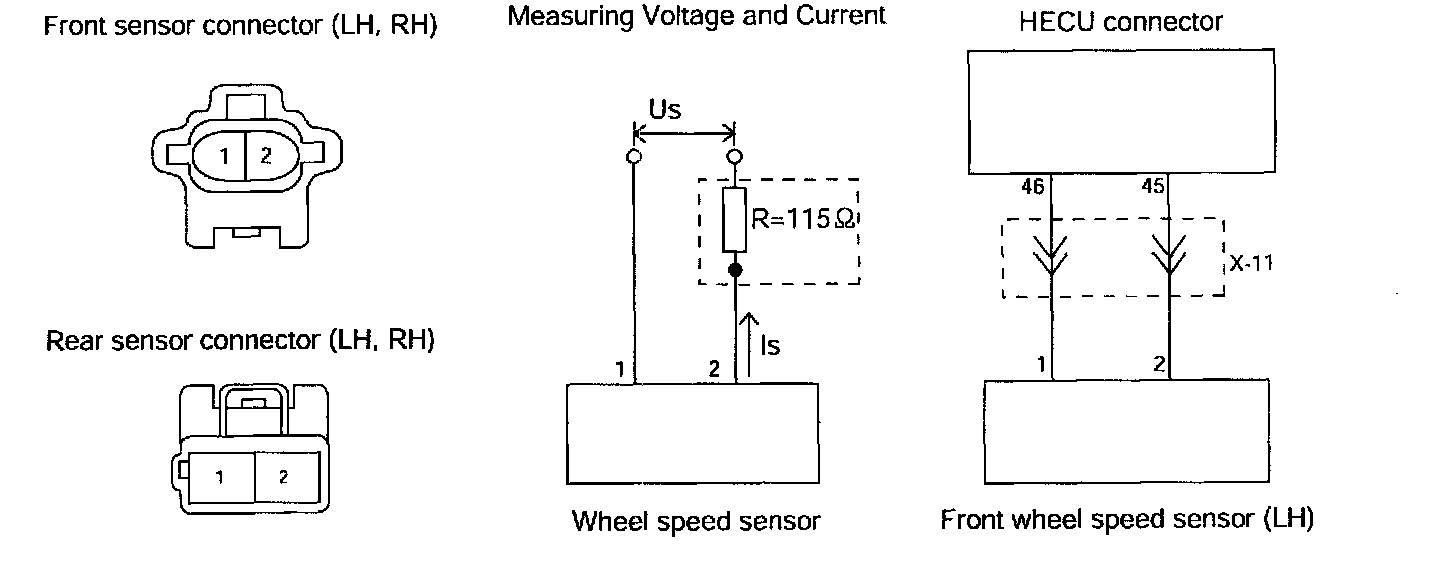

Circuit Diagram:

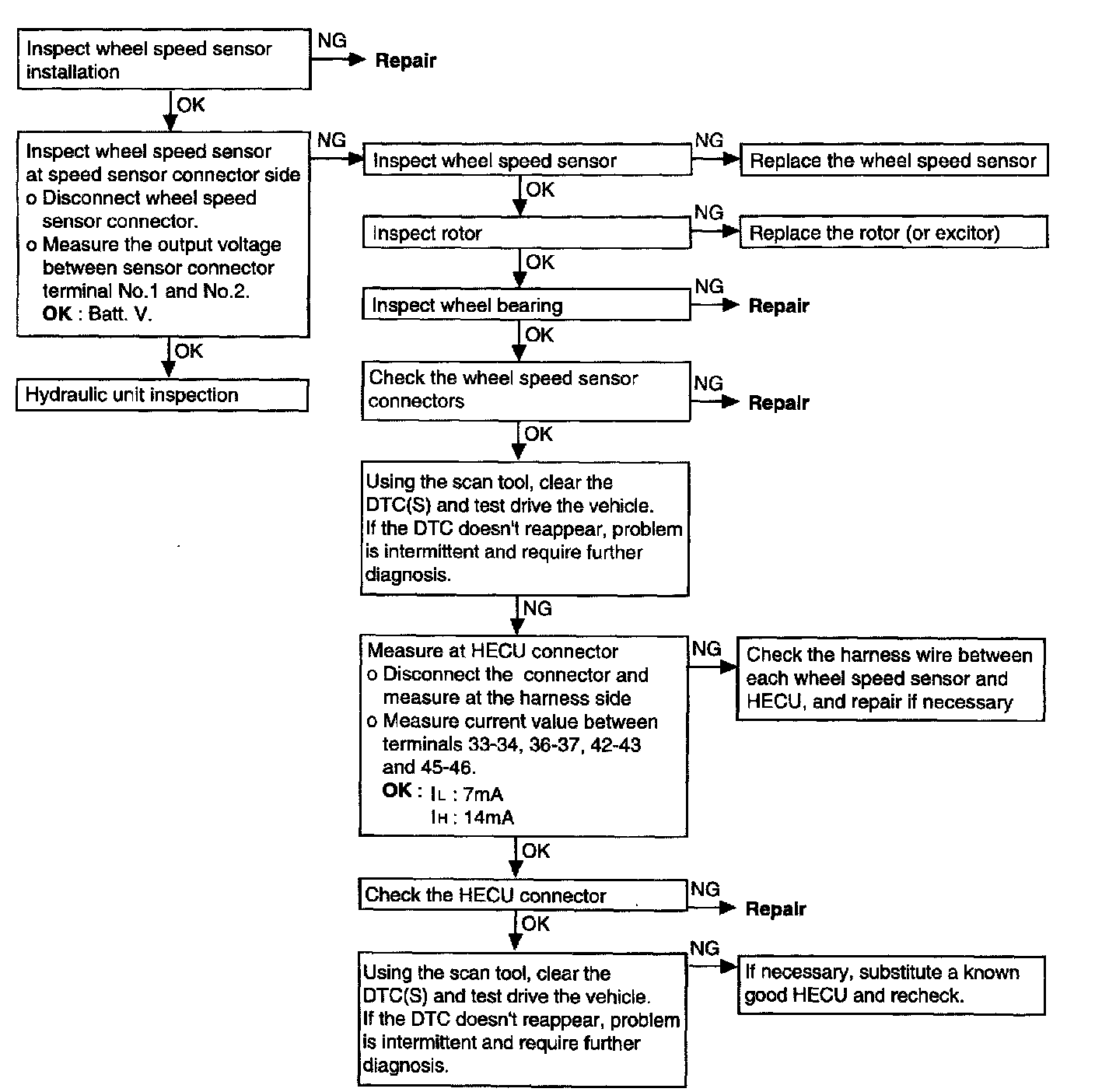

INSPECTION PROCEDURE 5

CAUTION:
^ When measuring sensor current and operating voltage value, be sure to install resistance (Ff=115Ohms) at active wheel sensor to prevent sensor damaging.
^ Be sure to remove resistance (R=115Ohms) from sensor wiring harness after measuring, or ABS warning lamp will be turned ON.
