Electrical Diagrams

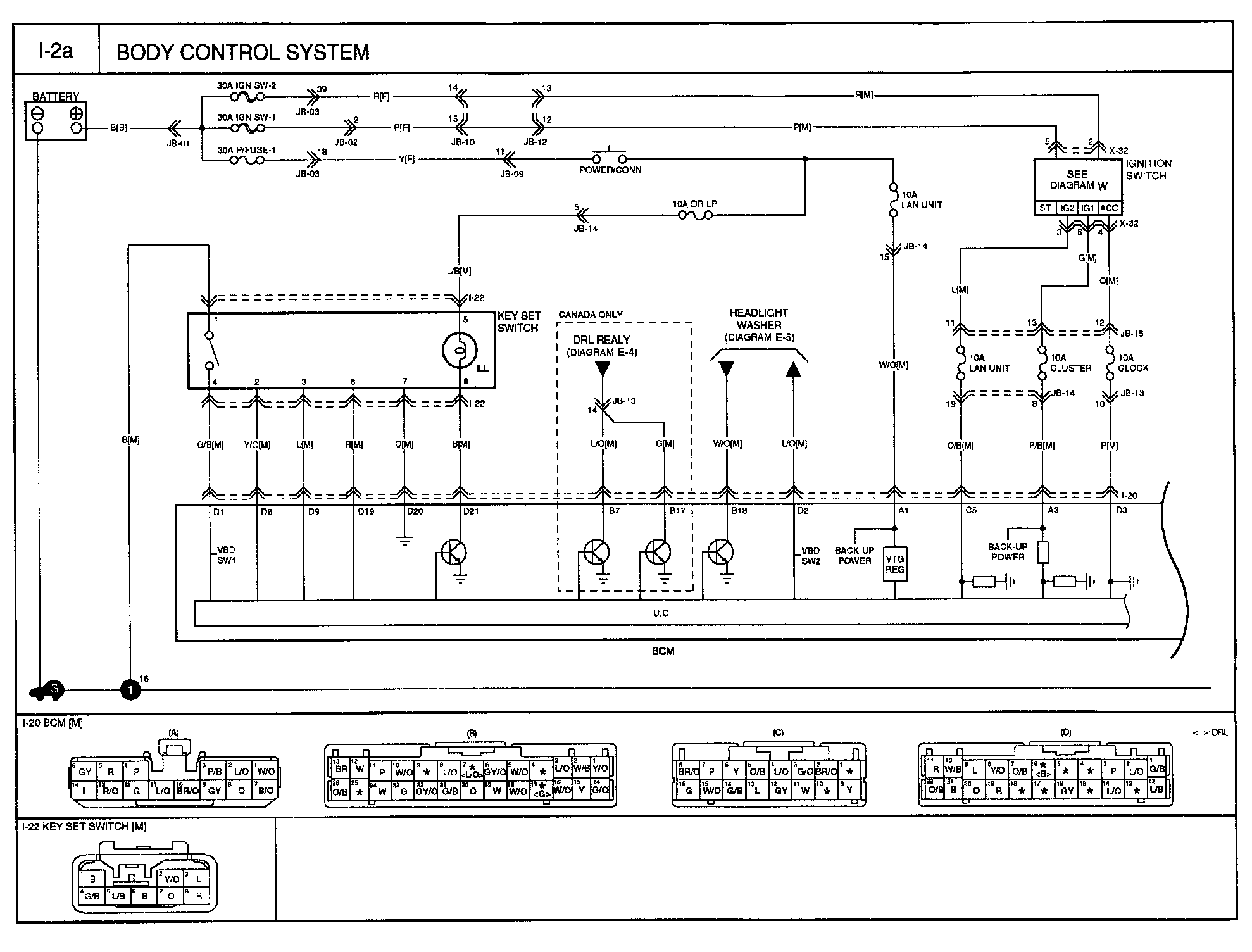

Diagram I-2a:

Routing View I-2a:

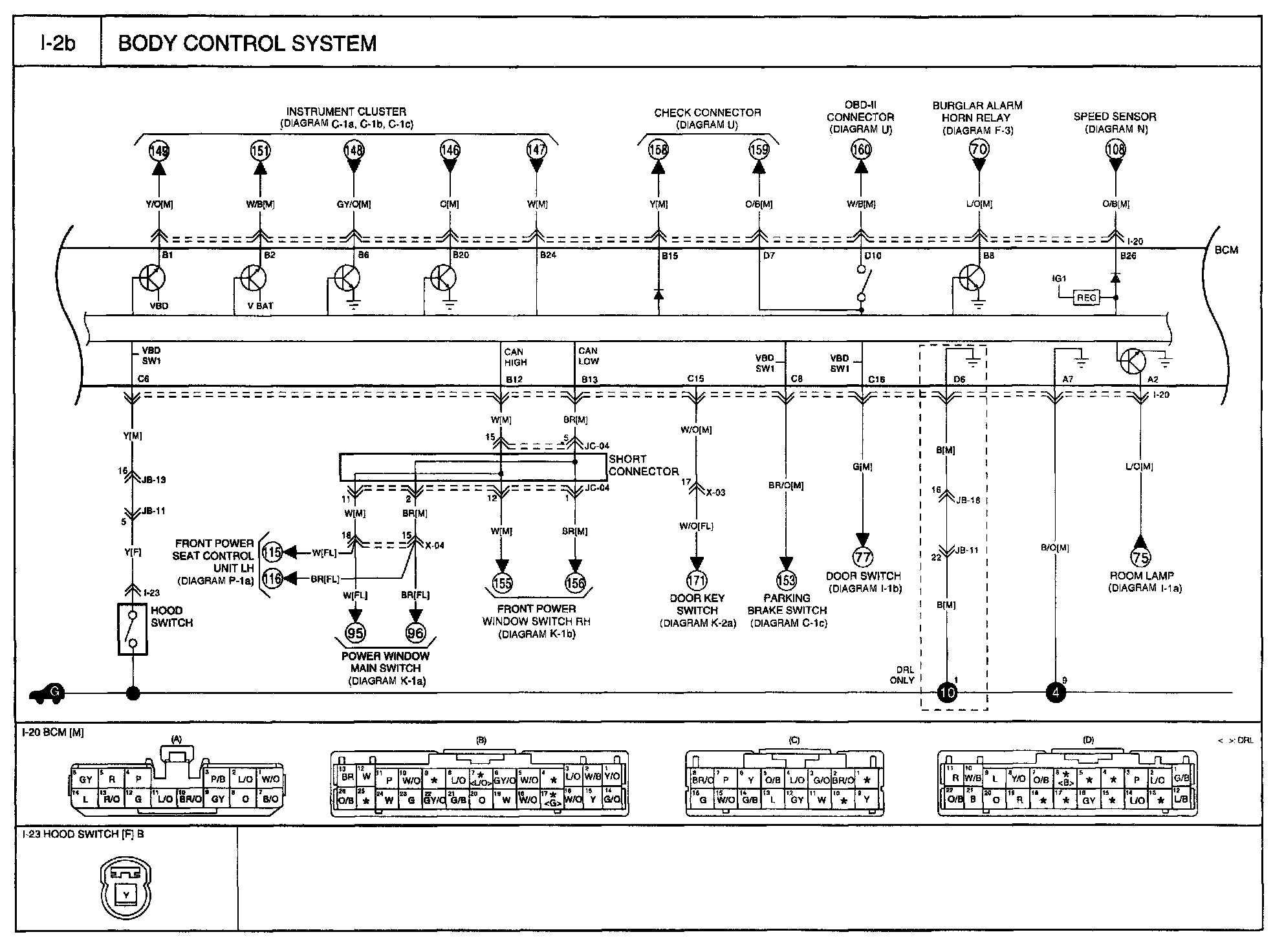

Diagram I-2b:

Routing View I-2b:

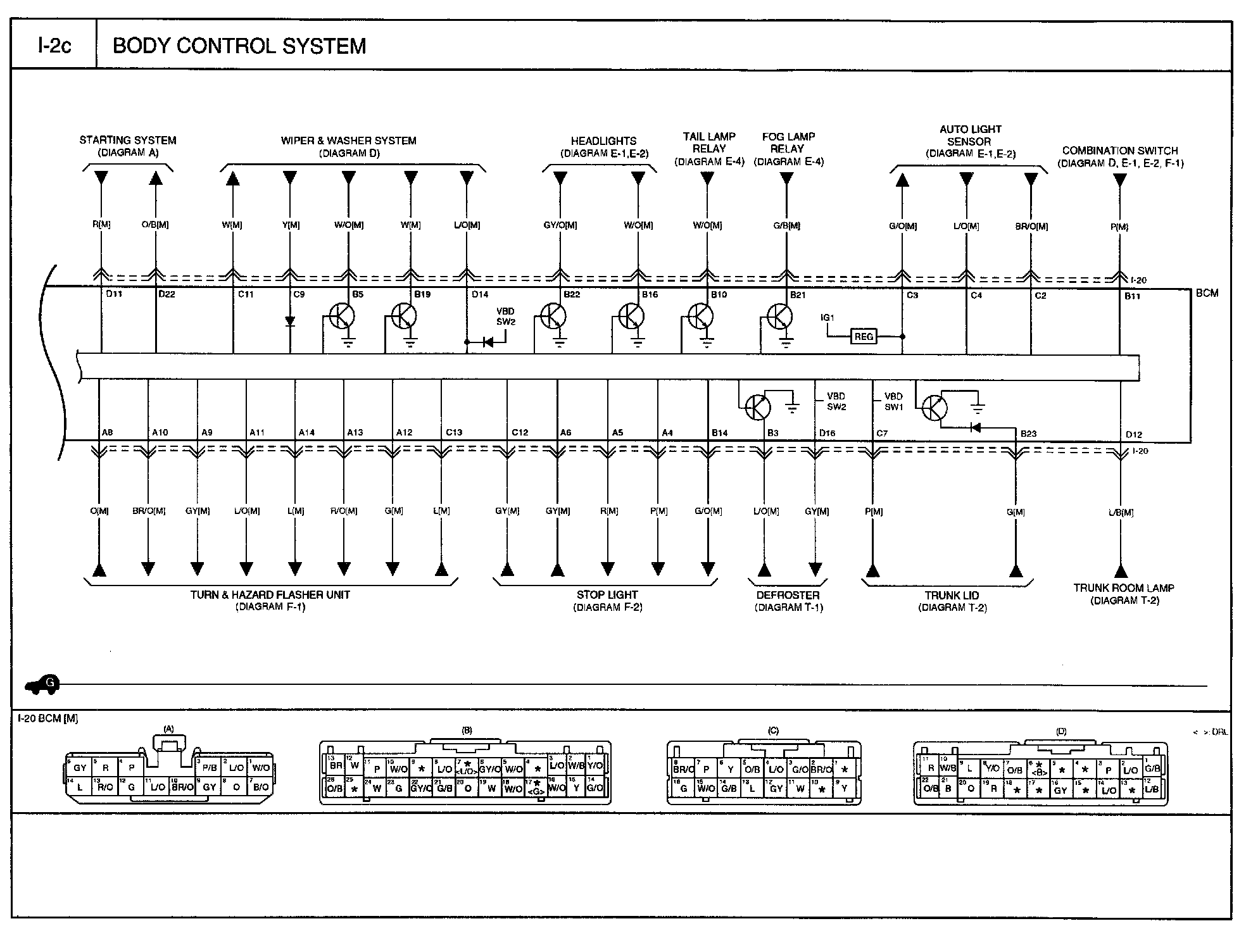

Diagram I-2c:

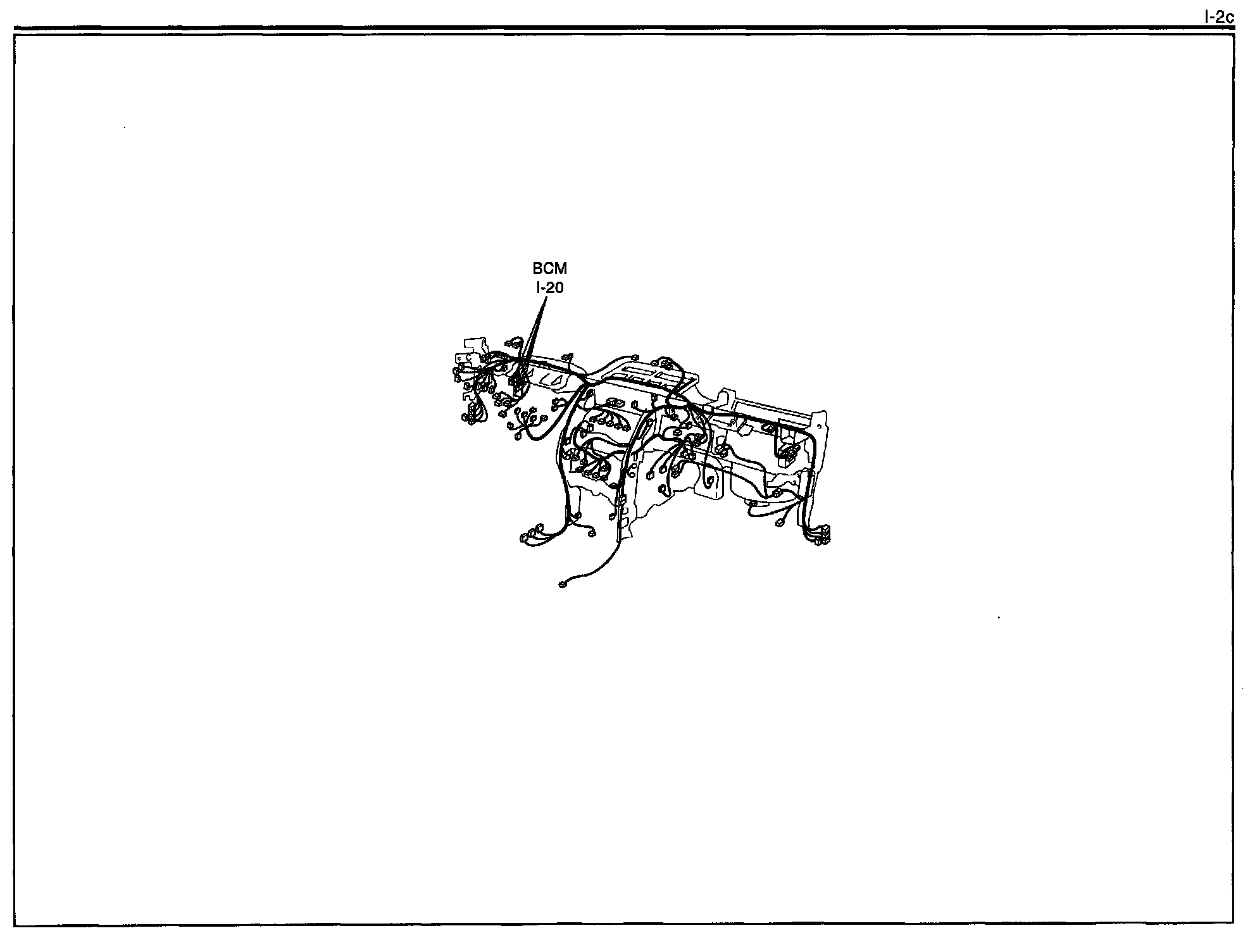

Routing View I-2c:

Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
