Home >> Kia >> 2005 >> Amanti V6-3.5L >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Remote Control >> Testing and Inspection

Remote Control: Testing and Inspection

INSPECTION




1. Connect an ohmmeter.

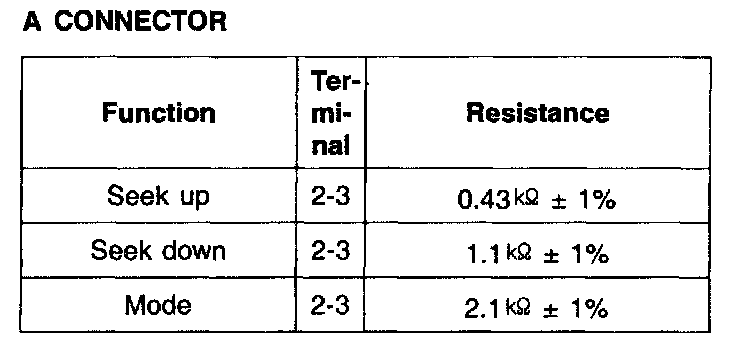

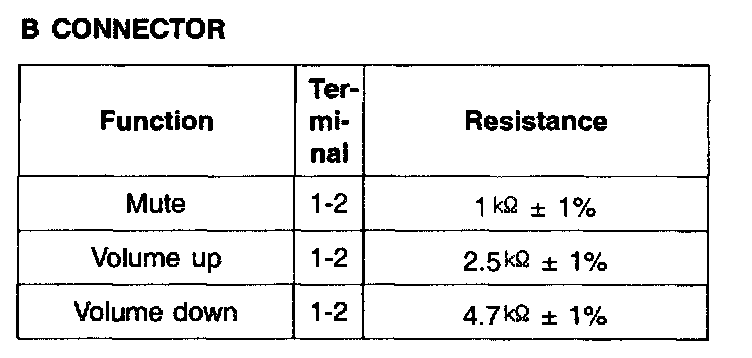

2. Check the resistance between terminals when each switch is operated.
