Radio/Stereo: Service and Repair

AUDIO UNIT

REMOVAL AND INSTALLATION

1. Disconnect the negative(-) battery terminal.

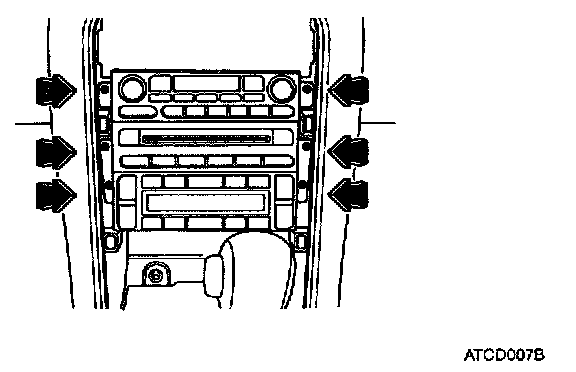

2. Remove the center facia panel by pulling it.

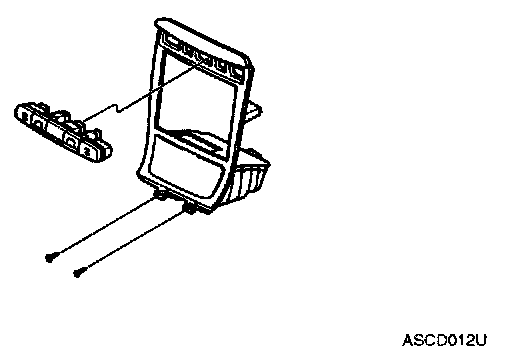

3. Remove the screws holding the audio unit then remove the audio and A/C control unit assembly.
4. Installation is the reverse of removal.
