A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Diagnostic Trouble Code Descriptions
>>
ABS (Anti-Lock Brake System)
>>
Antilock Brake System
>>
Inspection Chart For Diagnostic Trouble Codes
Inspection Chart For Diagnostic Trouble Codes

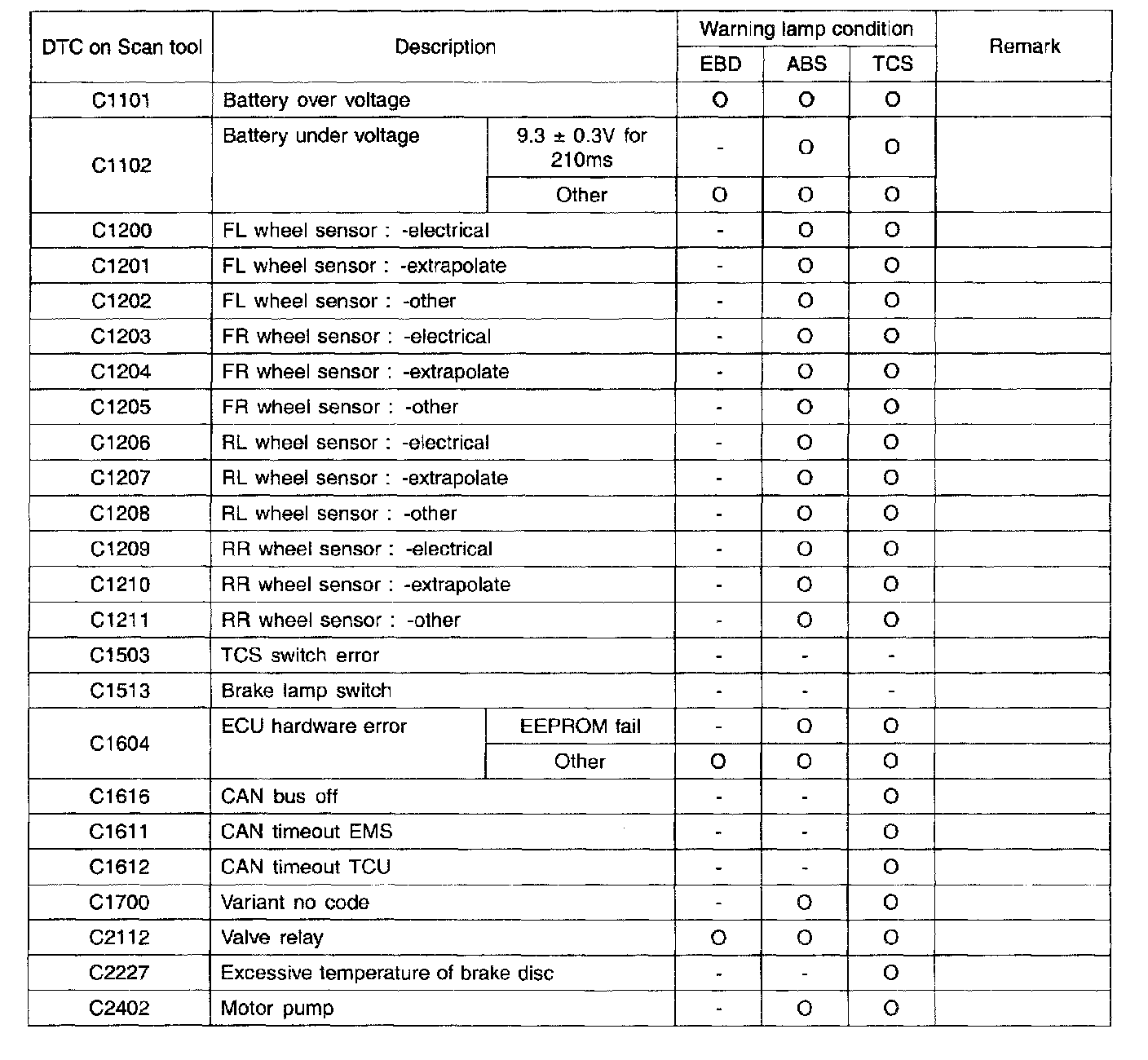

INSPECTION CHART FOR DIAGNOSTIC TROUBLE CODES
Inspect according to the inspection chart that is appropriate for the malfunction code.
