A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
C Code Charts
>>

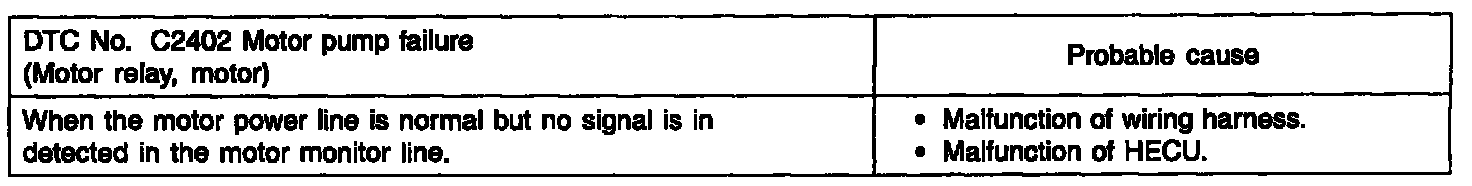

C2402
>>
Electronic Stability Program (ESP) System
Electronic Stability Program (ESP) System

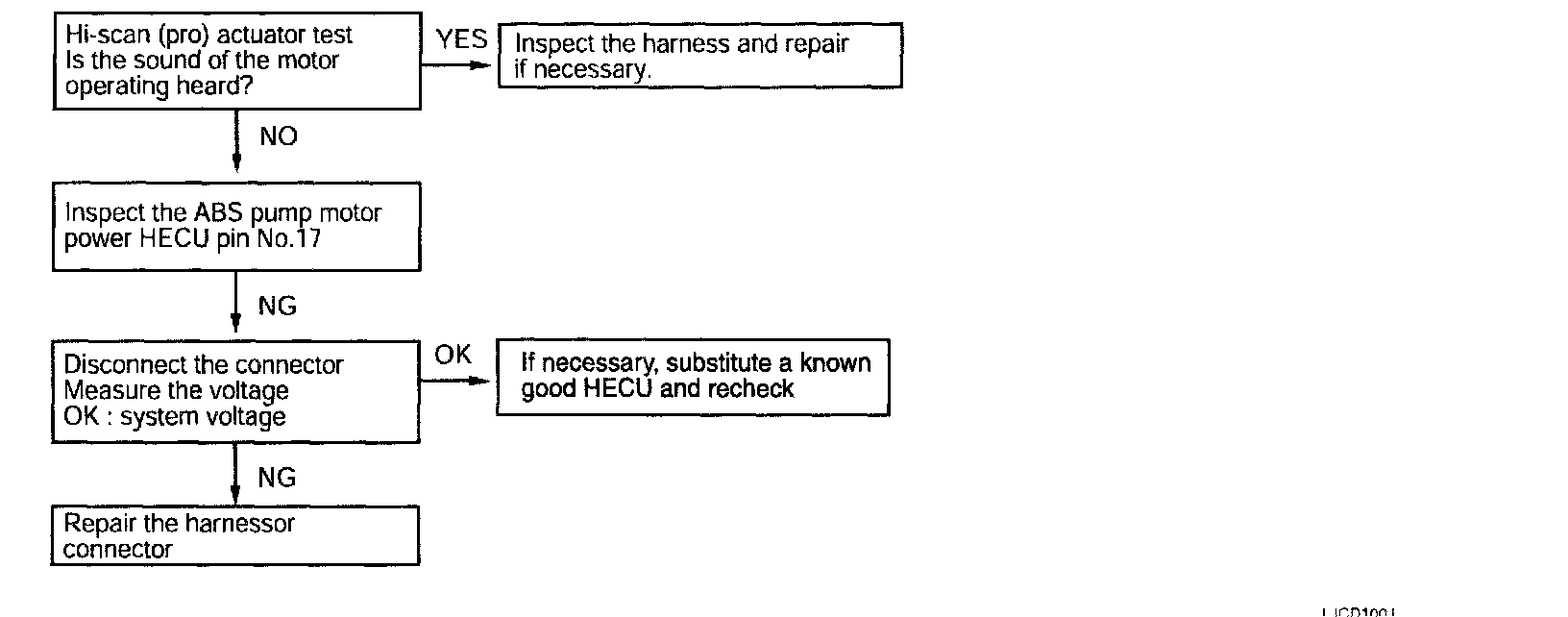

MOTOR PUMP FAILURE
CAUTION:
Powering the motor with the HI-Scan (Pro) will discharge the battery. Start and run the engine for a while after testing is complete.
