B1440

DTC B1440 Passenger Occupant Classification (OC) Circuit Short to Ground

DESCRIPTION

The passenger detecting system consists of the SRSCM and the Passenger OC sensor. The SRSCM sets above DTCs if it detects short to ground on the Passenger OC circuit.

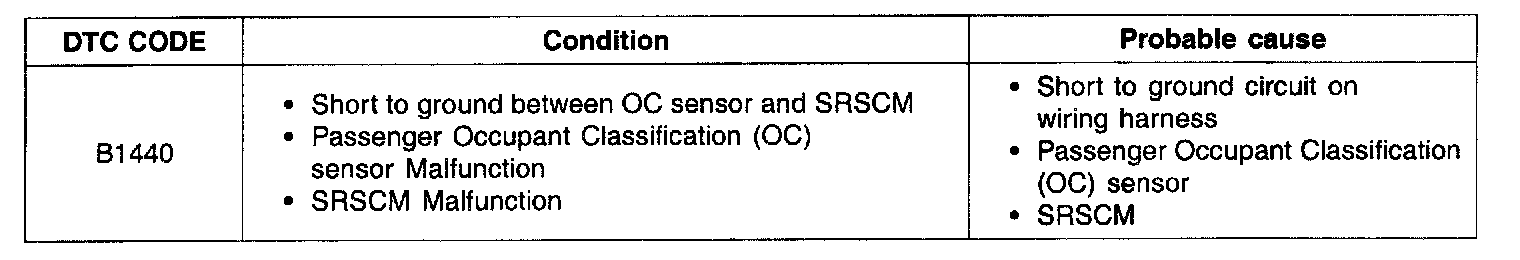

DTC Detecting Condition:

DTC DETECTING CONDITION

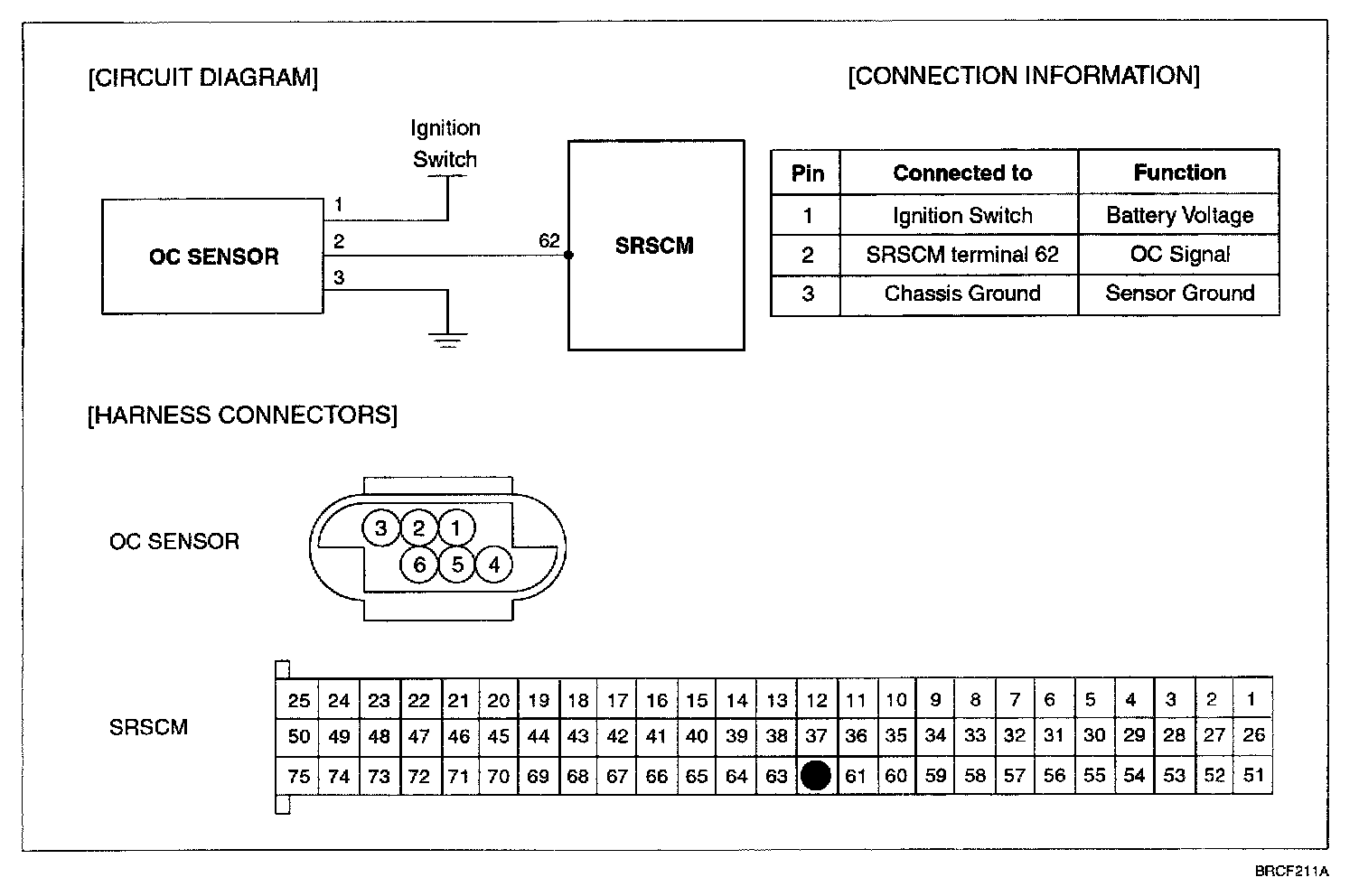

Schematic Diagram:

SCHEMATIC DIAGRAM

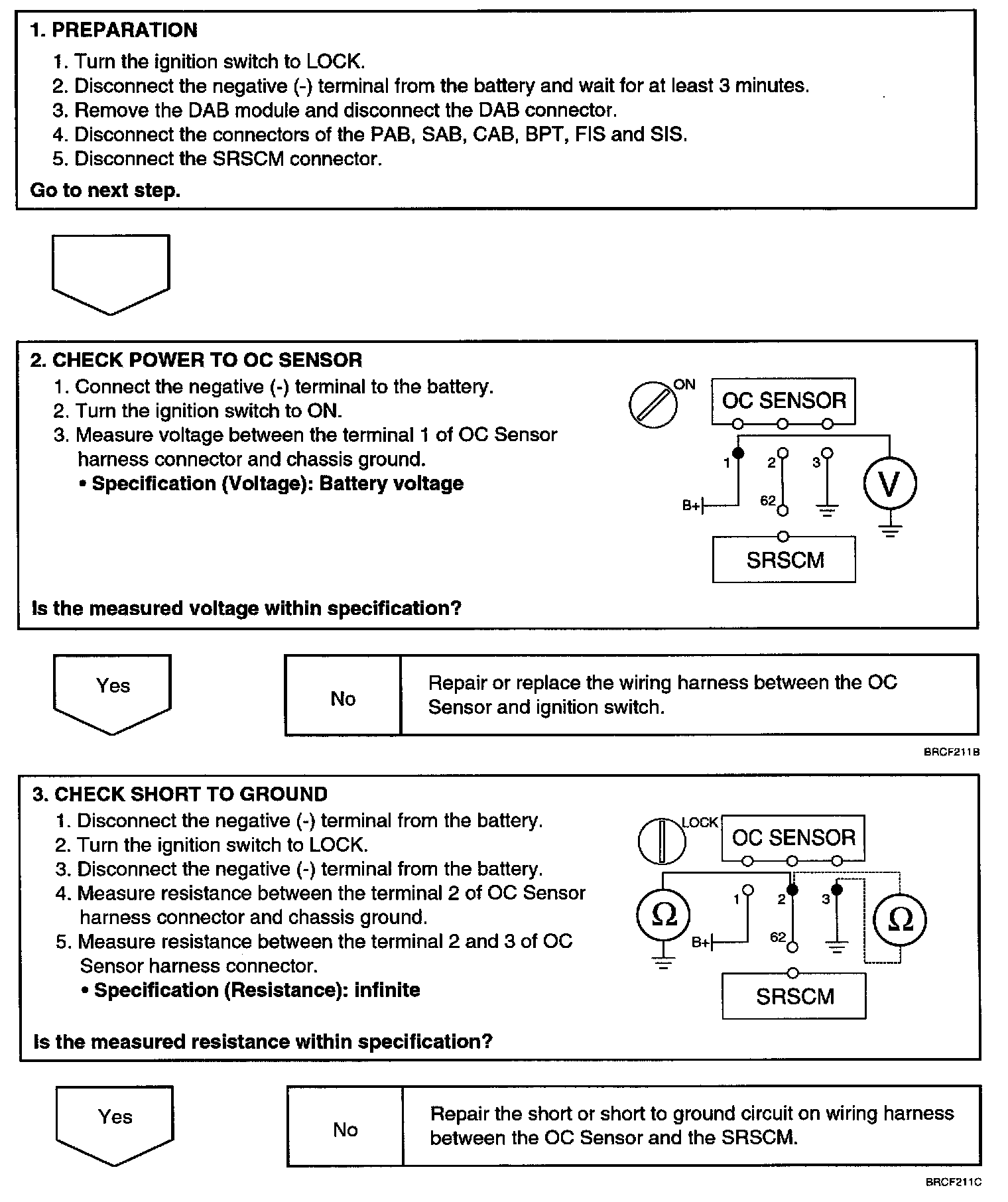

Step 1 - 3:

Step 4 - 5:

INSPECTION PROCEDURE
