Wiper Motor: Service and Repair

REMOVAL

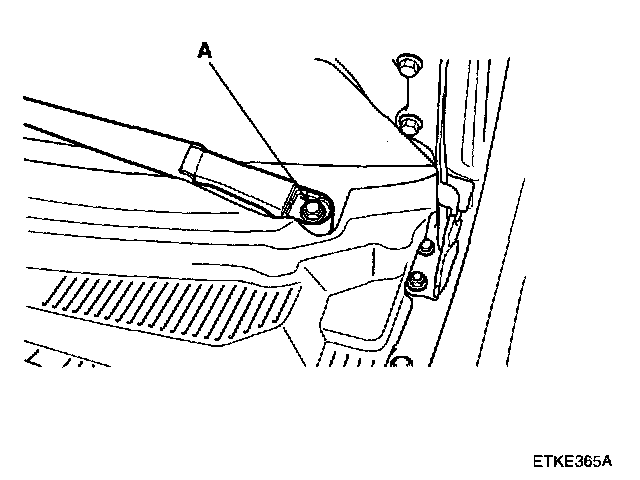

1. Remove the windshield wiper arm and blade after removing a nut(A).

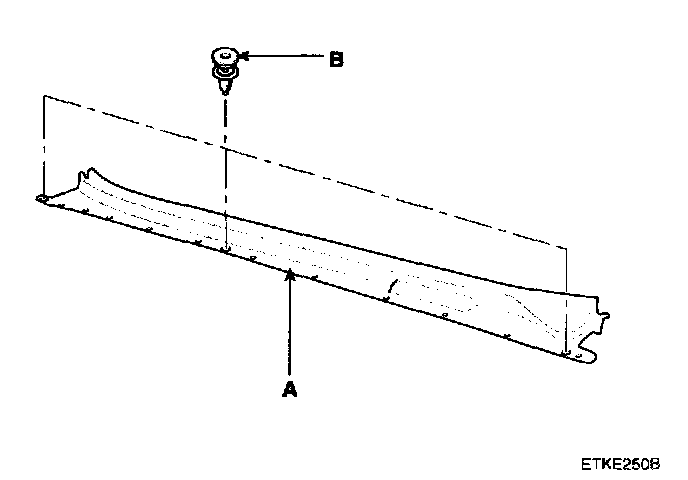

2. Remove the weather strip then remove the cowl top cover (A) after removing 3 clips (B).

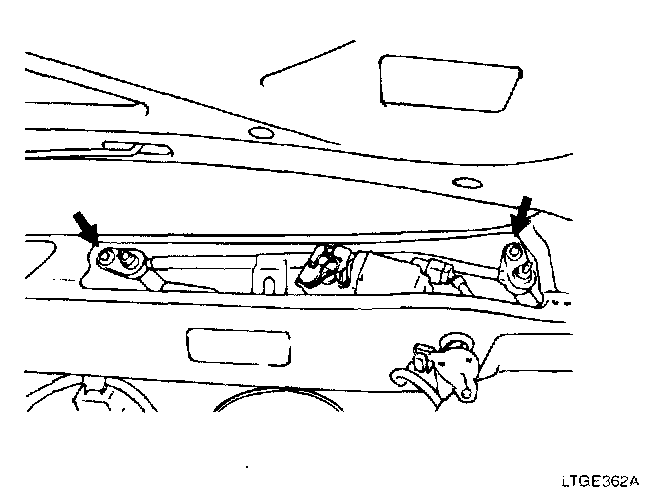

3. Remove the windshield wiper motor and linkage assembly after removing 2 bolts (A).
4. Installation is the reverse of removal.

INSTALLATION

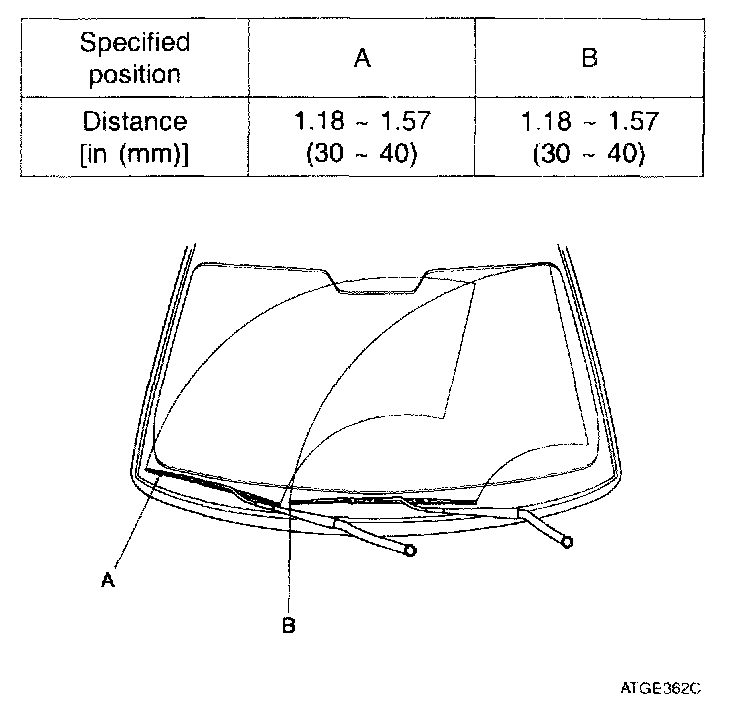

1. Install the wiper arm and blade to the specified position.

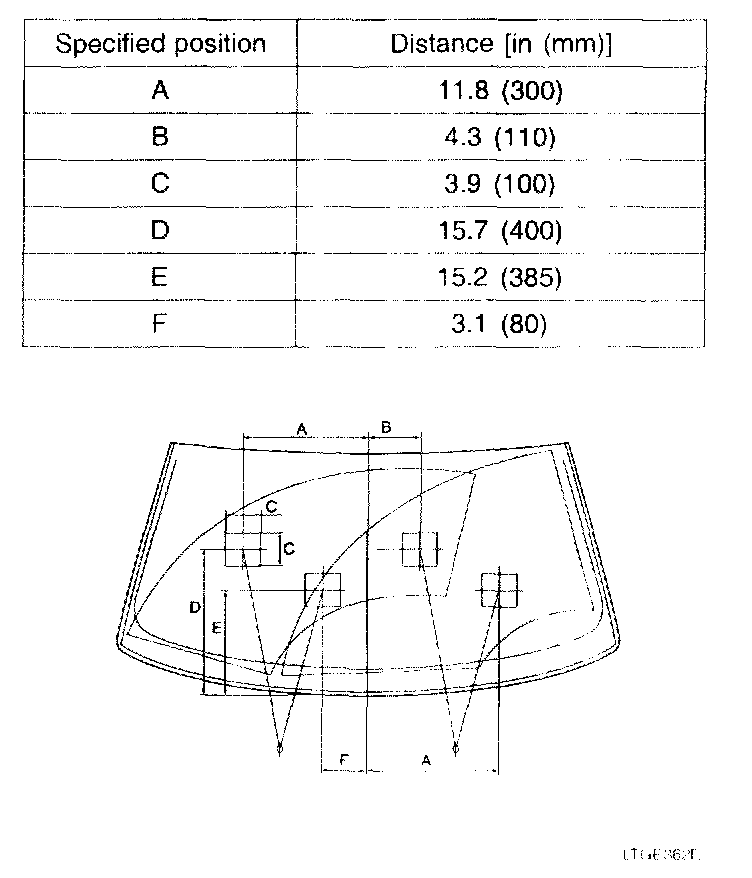

2. Set the washer nozzle on the specified spray position.
