Rear

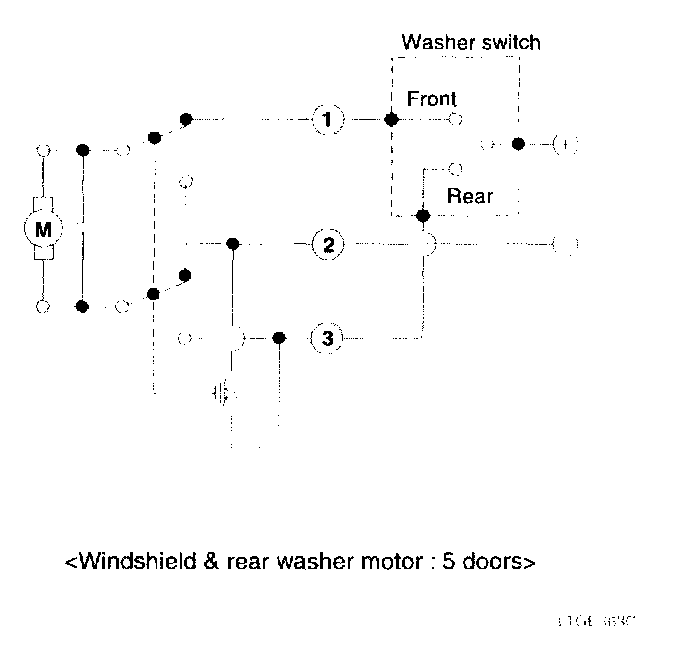

REAR WASHER MOTOR

INSPECTION

1. With the washer motor connected to the reservoir tank, fill the reservoir tank with water.

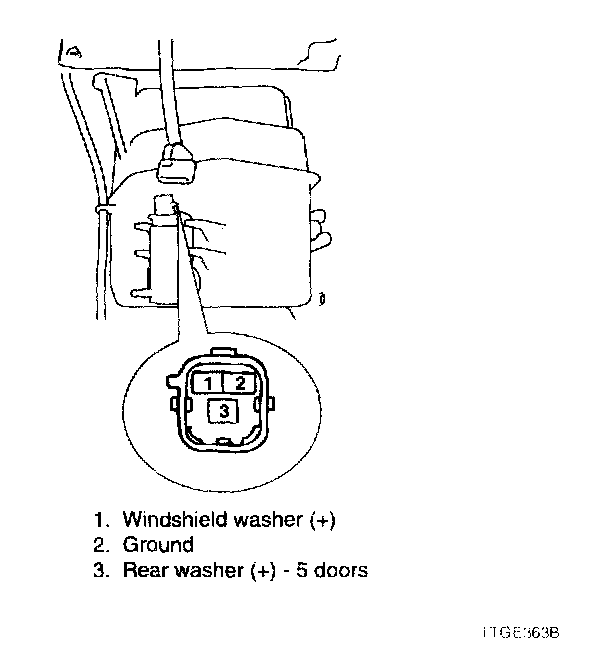

2. Connect positive (+) and negative (-) battery cables to terminals 2 and 3 respectively to see that the washer motor runs and water is pumped.







3. Check that the motor operates normally. Replace the motor if it operates abnormally.
