Home >> Kia >> 2004 >> Spectra L4-2.0L >> Repair and Diagnosis >> Wiper and Washer Systems >> Sensors and Switches - Wiper and Washer Systems >> Wiper Switch >> Testing and Inspection

Wiper Switch: Testing and Inspection

INSPECTION

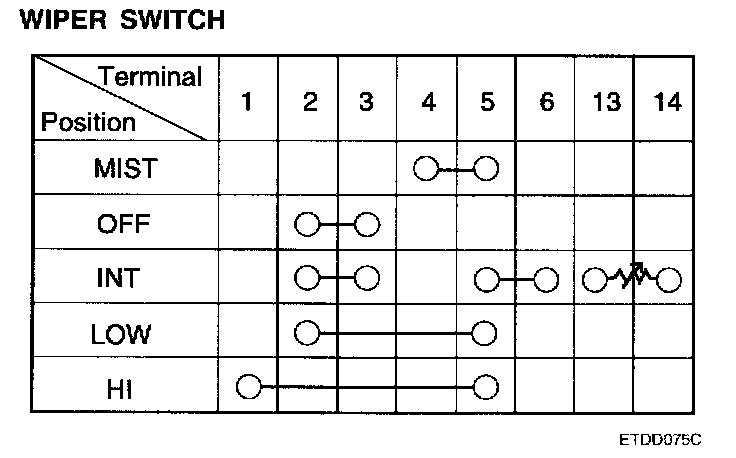

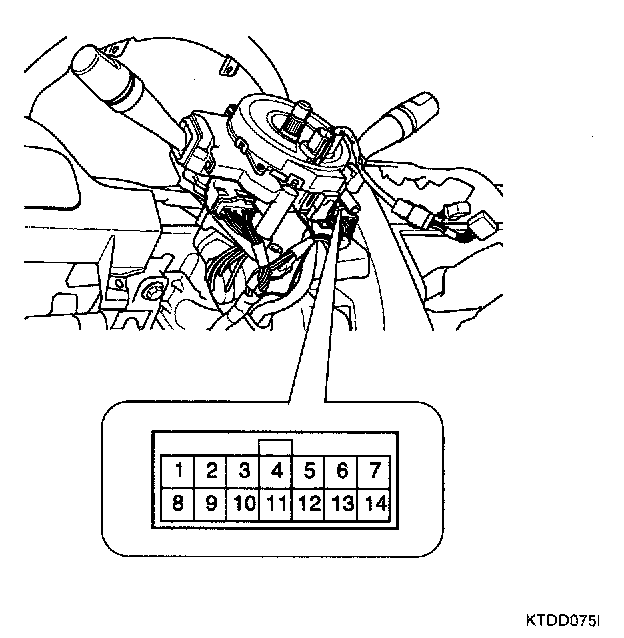

Check for continuity between the terminals while operating the wiper and washer switch.
