Manual Transmission/Transaxle: Locations

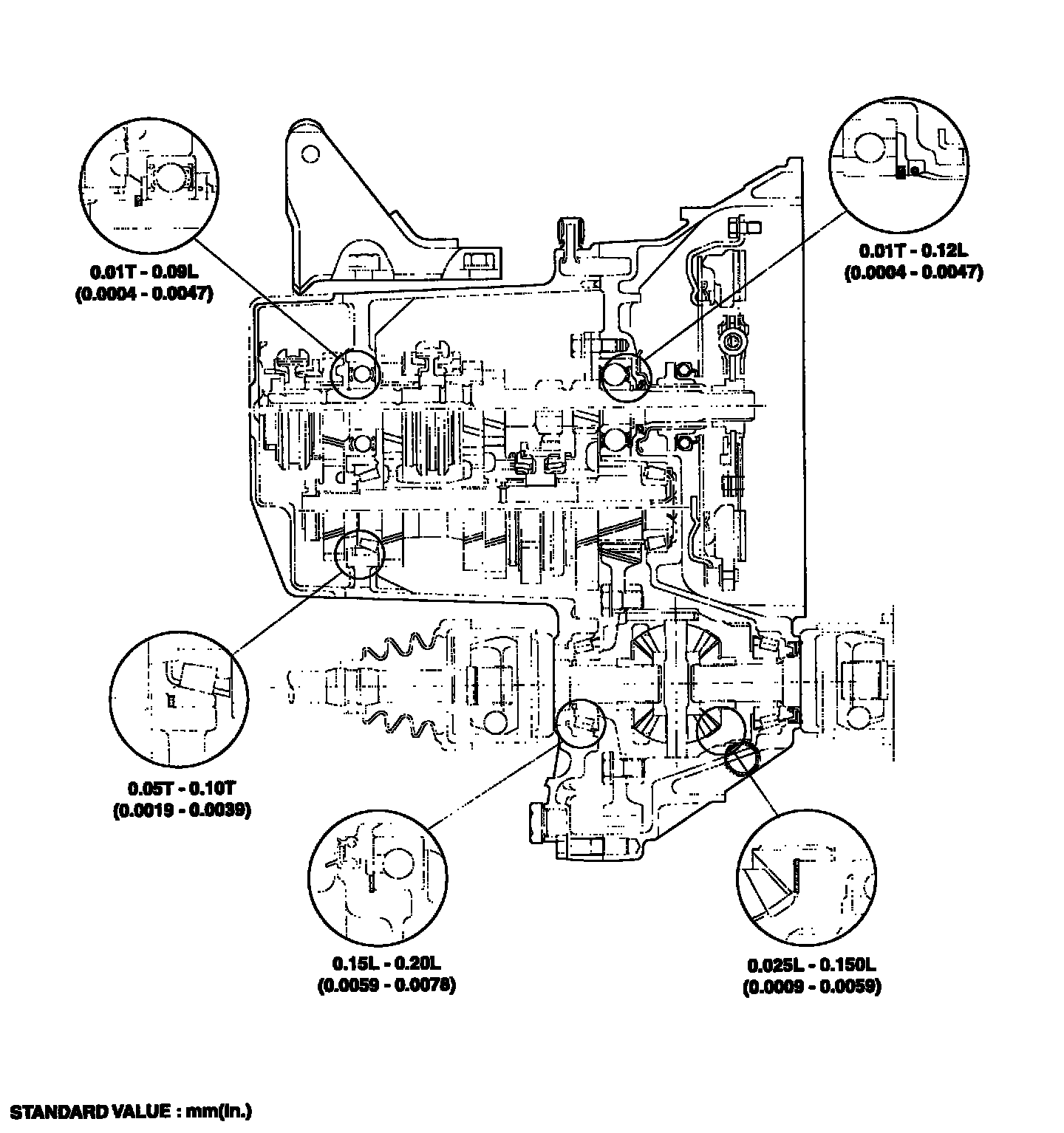

Section View:

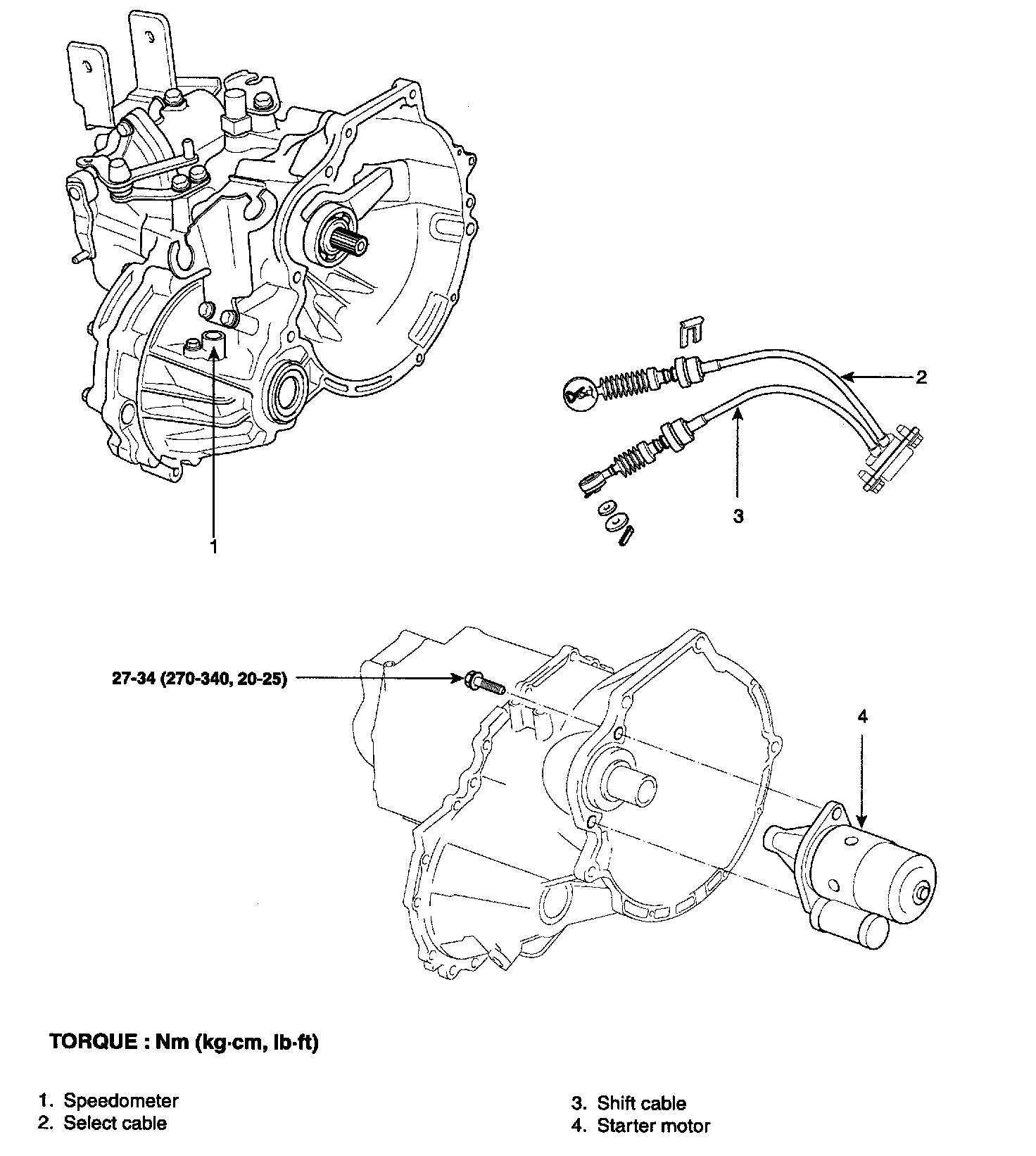

Components (1):

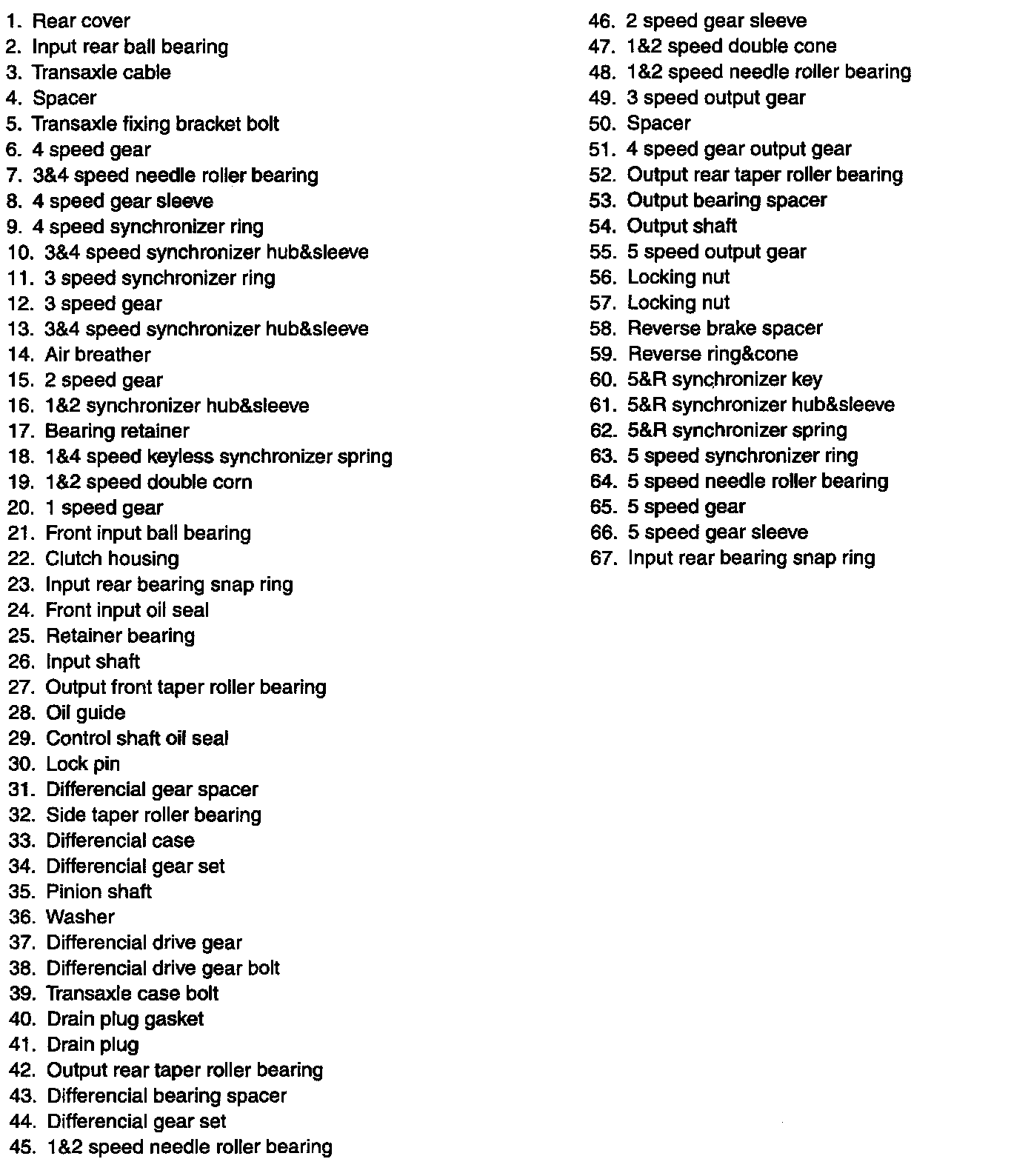

Components (2) (Part 1):

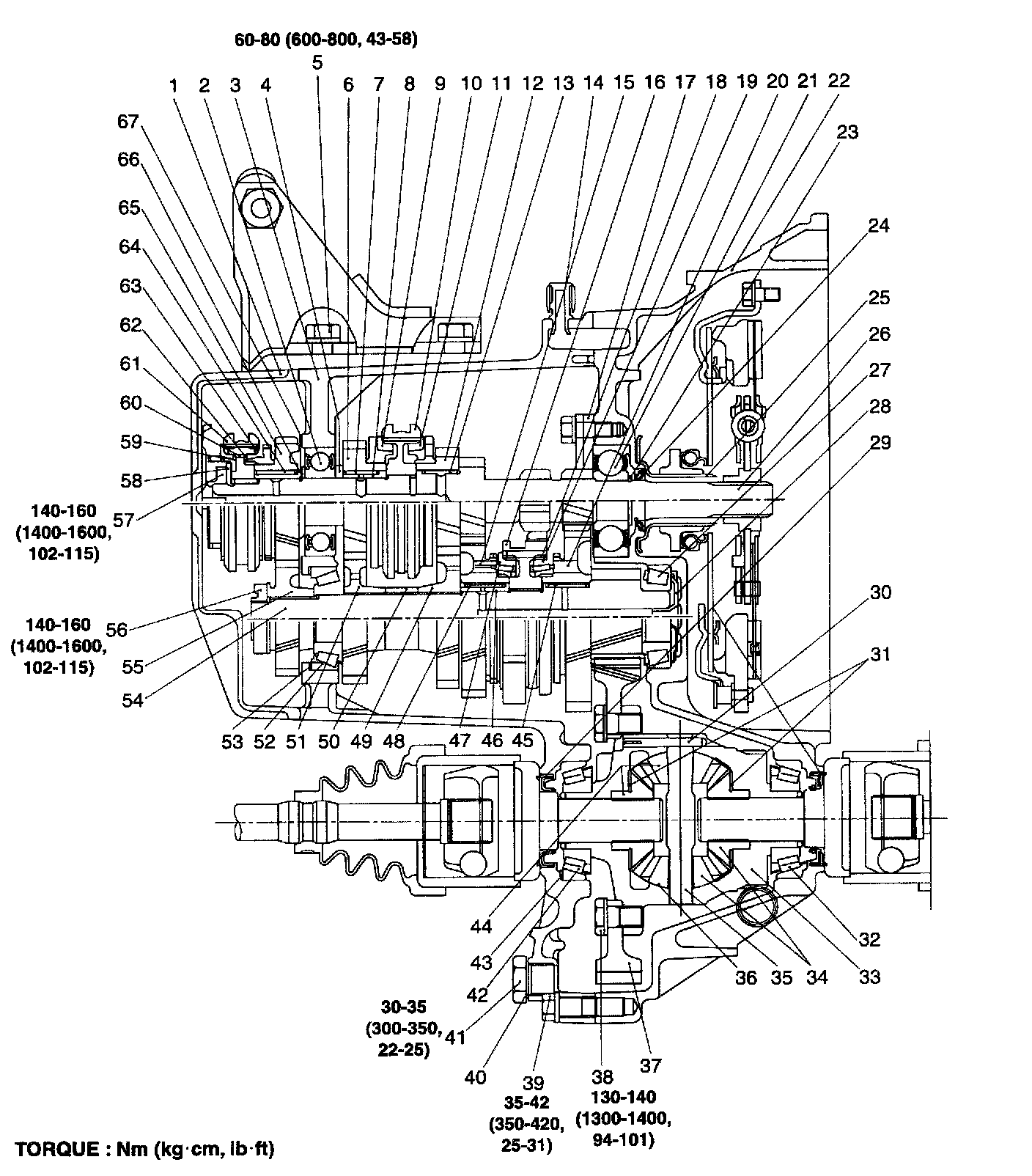

Components (2) (Part 2):

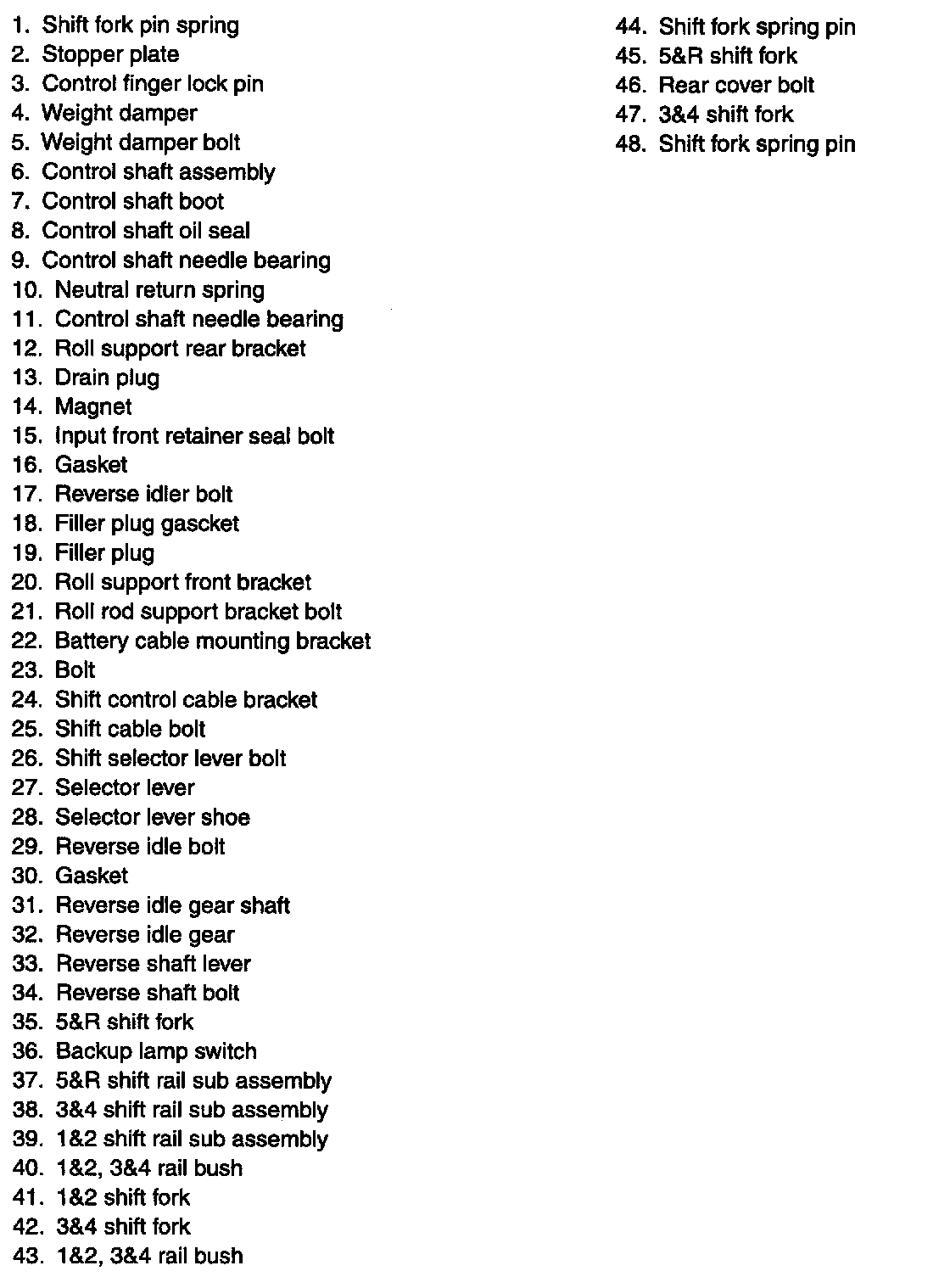

COMPONENTS (3) (Part 1):

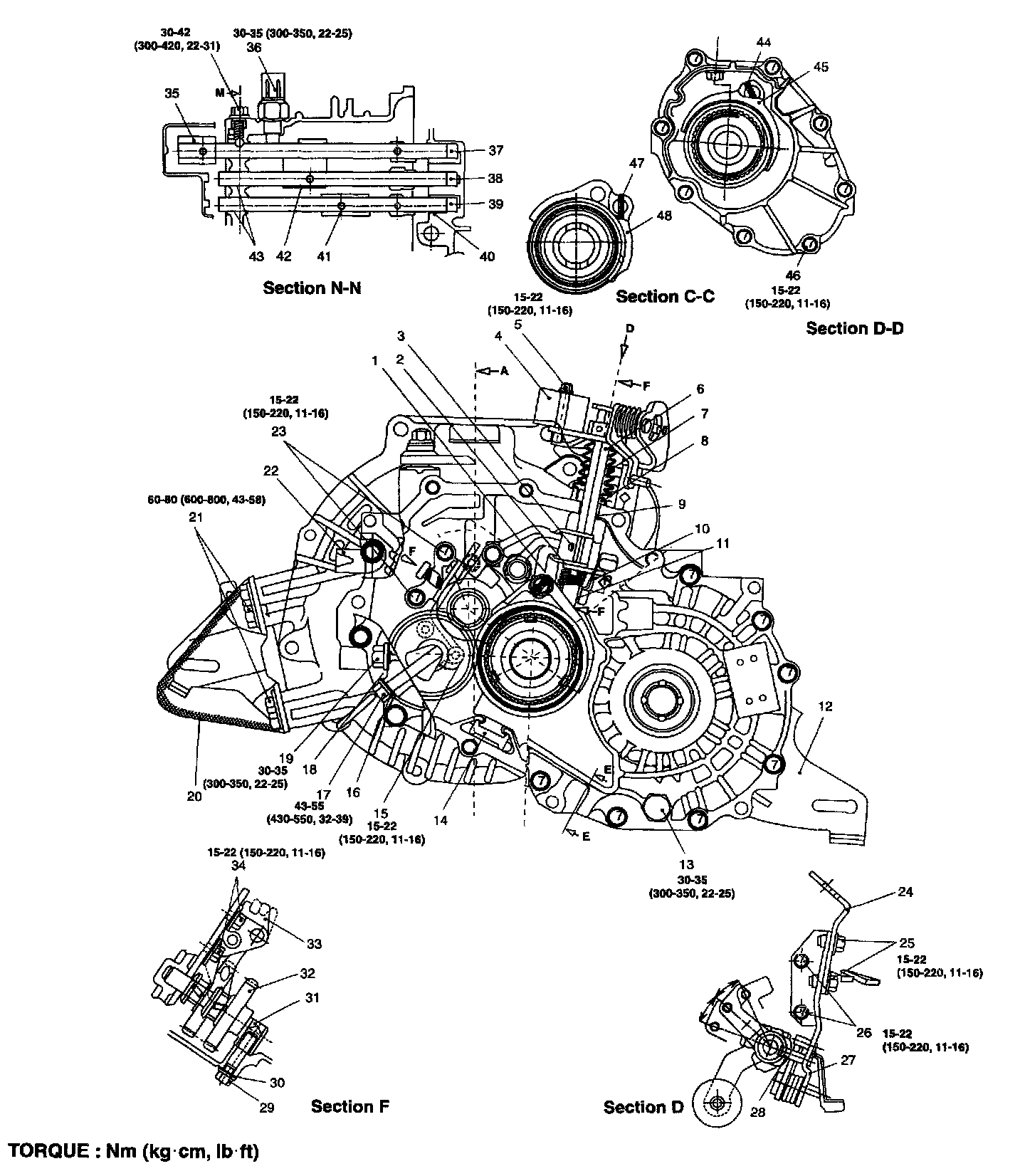

COMPONENTS (3) (Part 2):

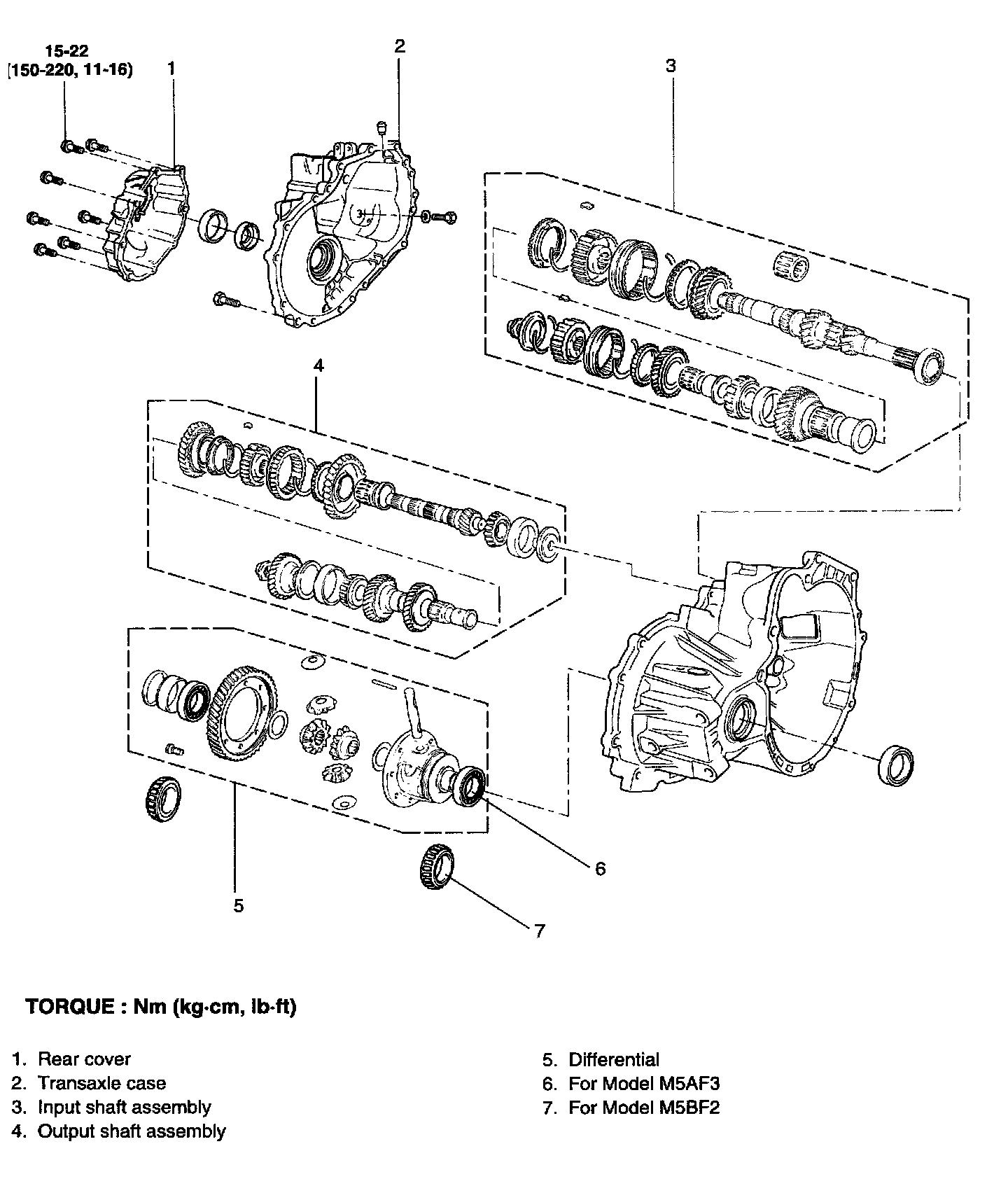

COMPONENTS (4):
