Installation

INSTALLATION

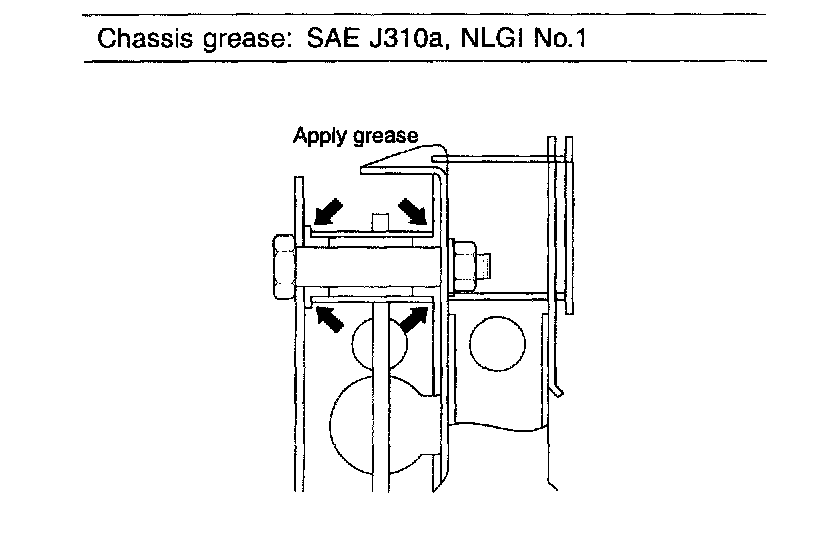

1. Apply the specified grease to the clutch pedal and bushings.
Chassis grease: SAE J310a, NLGI No.1

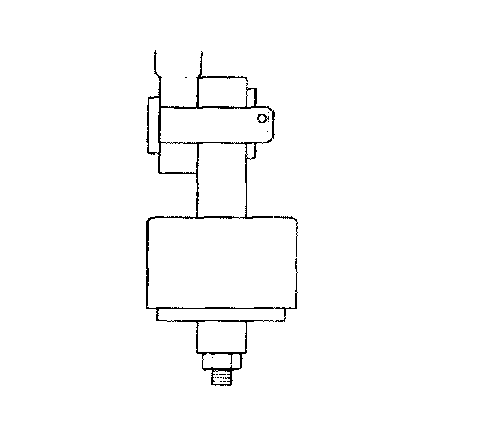

2. Install the clutch pedal mounting bolt.

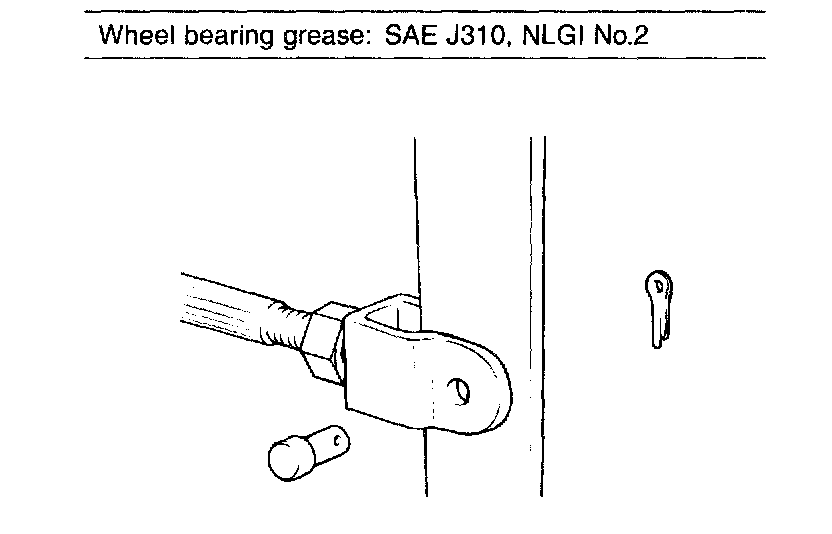

3. Apply the specified grease to the clevis pin and washer.
Wheel bearing grease: SAE J310, NLGI No.2
4. Install the push rod to the clutch pedal.





5. Adjust the clutch pedal clevis pin play.
