Removal

REMOVAL





1. Drain the clutch fluid through the bleed plug (A).

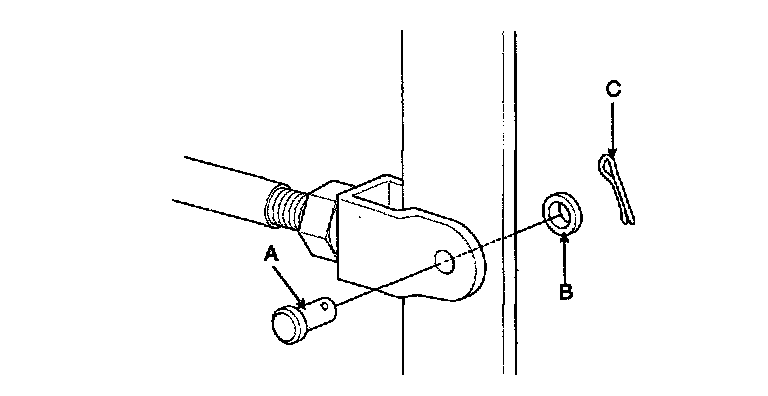

2. Remove clevis pin (A), split pin (cotter pinch) (C) and washer (B).





3. Disconnect the clutch tube (A) (master cylinder side).

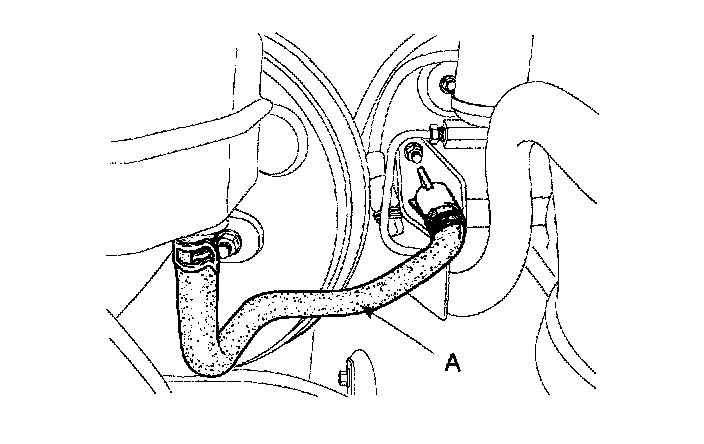

4. Remove the flexible hose connected to brake reserve tank.

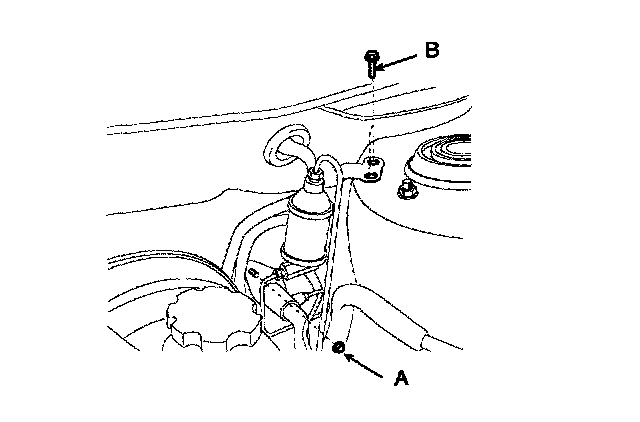

5. Remove the master cylinder mounting nuts (A) and clutch reserve tank mounting bolts (B).

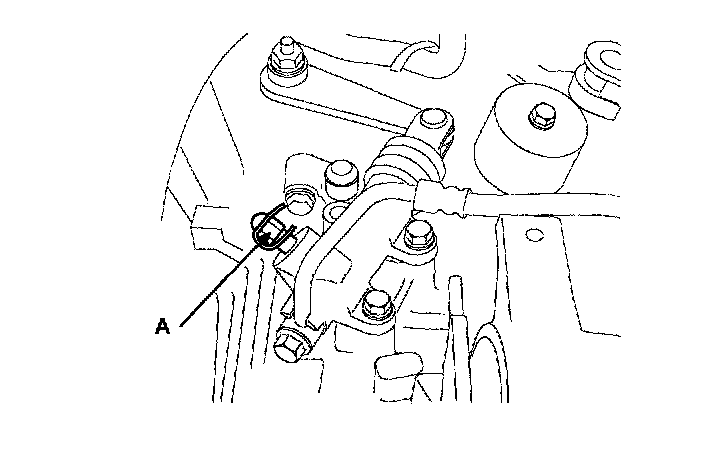

6. Remove the clutch line clips (A).

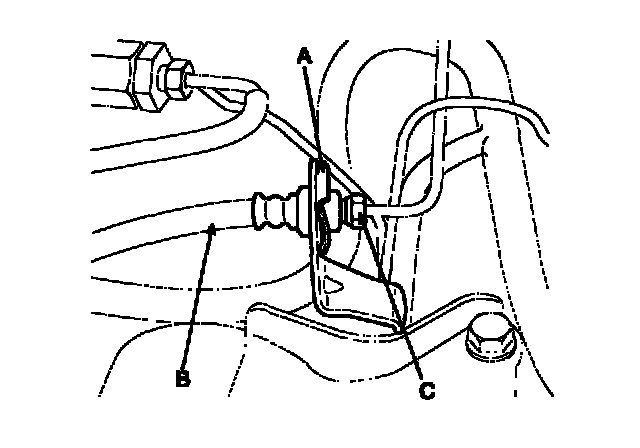

7. Hold the nut on the clutch hose (B) and loosen the flare nut (C) on the clutch tube.

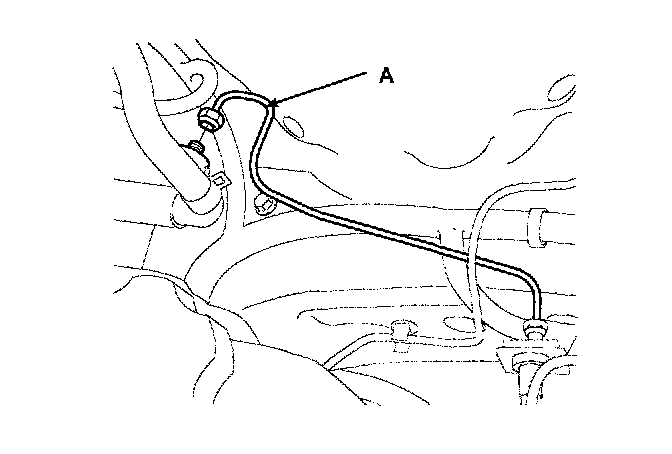

8. Remove the clutch tube.

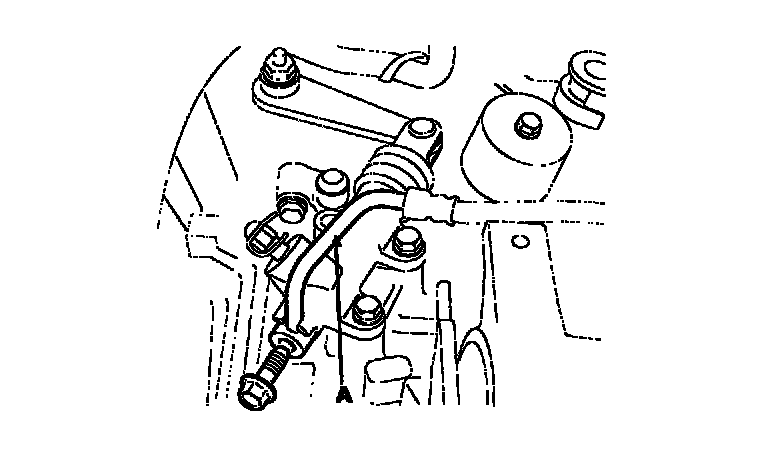

9. Disconnect the clutch hose (A) (release cylinder side).
10. Remove the clutch reserve tank.
