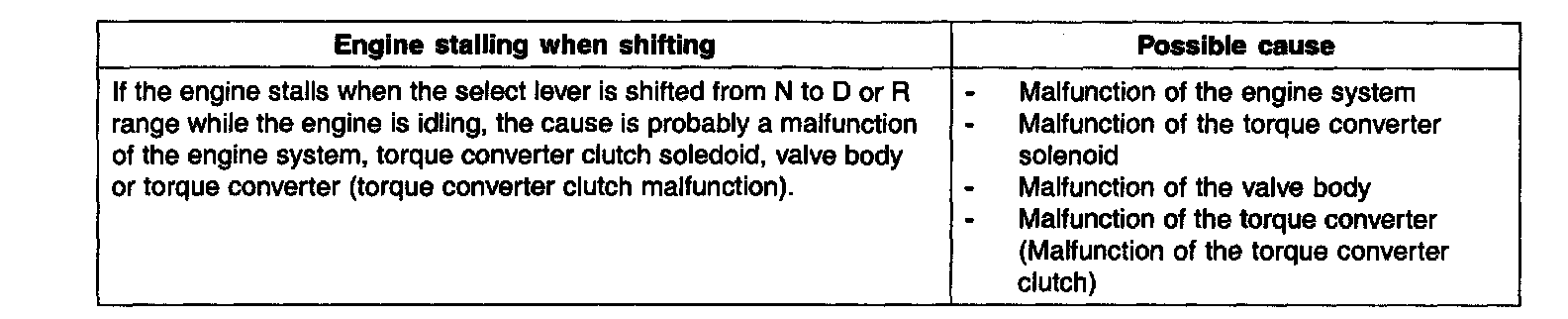

Inspection Procedure 6 - Engine Stalling When Shifting

INSPECTION PROCEDURES 6





Inspection Procedures

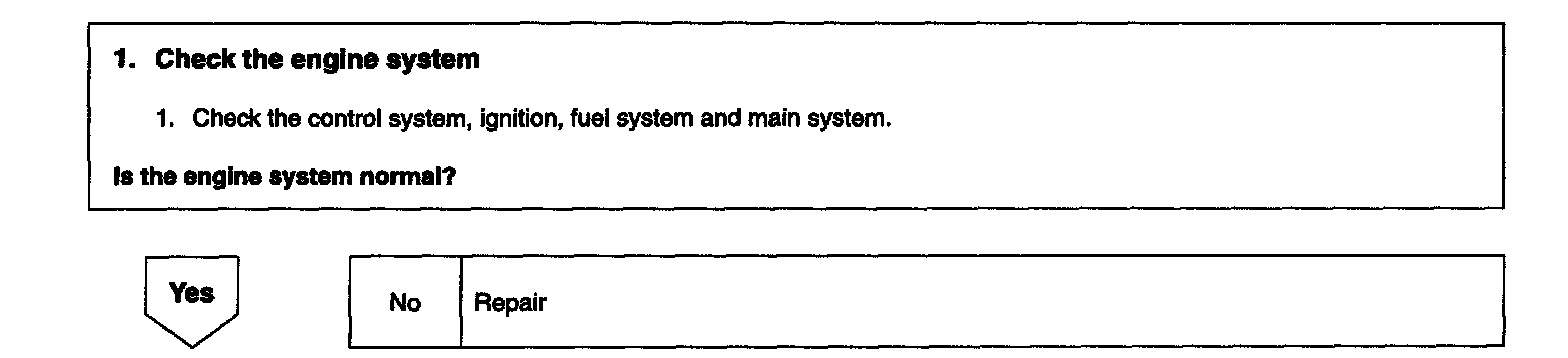

Part 1:

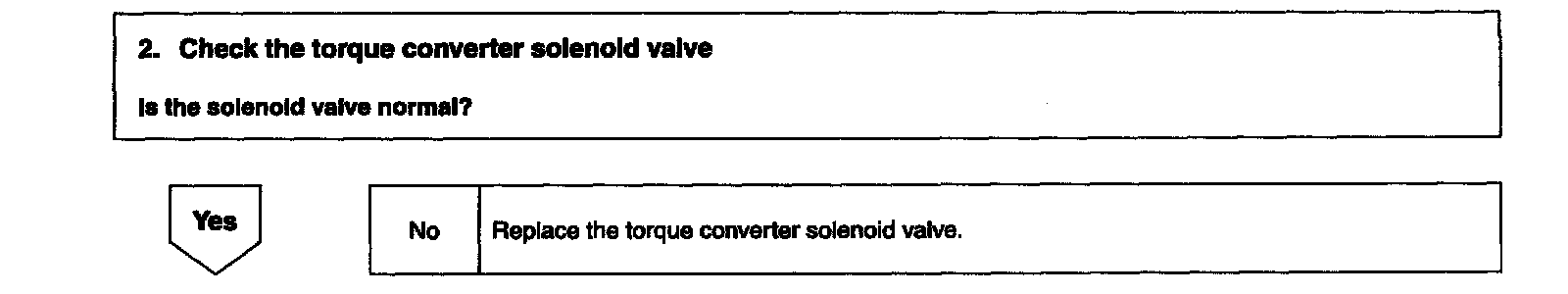

Part 2:

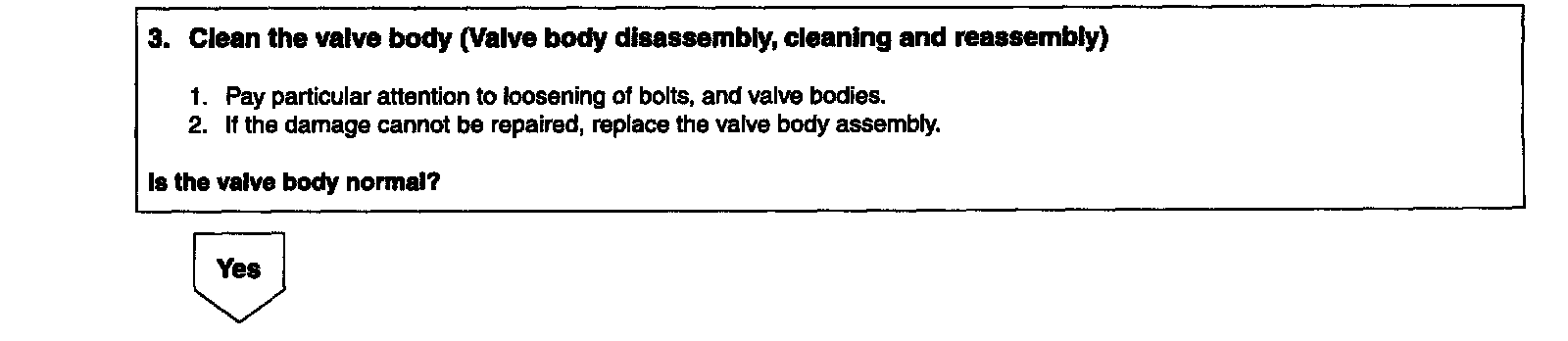

Part 3:

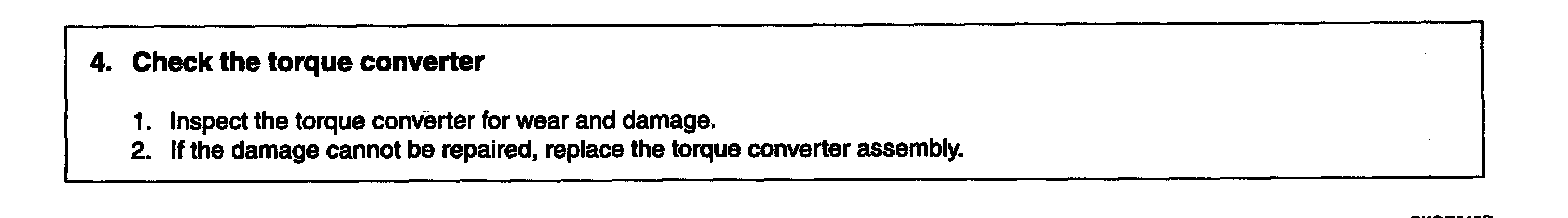

Part 4:
