Vehicle Speed Sensor Check

VEHICLE SPEED SENSOR CHECK

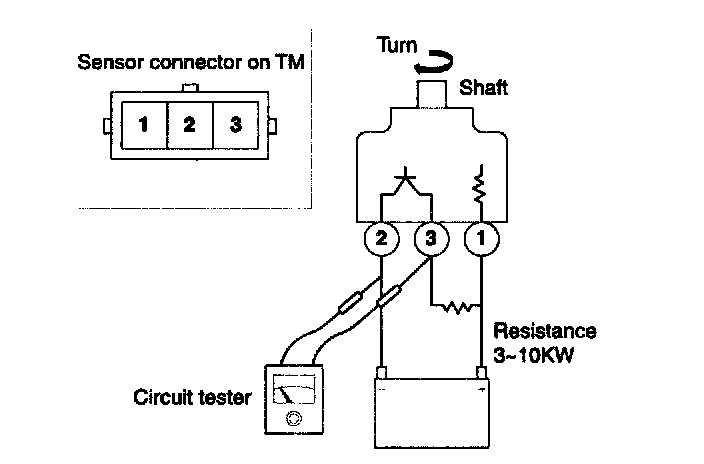

1. Remove the vehicle speed sensor and connect a 3 - 10 Ohms resistance as shown in the illustration.





2. Turn the shaft of the vehicle speed sensor and check that there is voltage between terminals 1 - 2 (1 turn = 4 pulses).
