Solenoid Valve Checking

SOLENOID VALVE CHECK

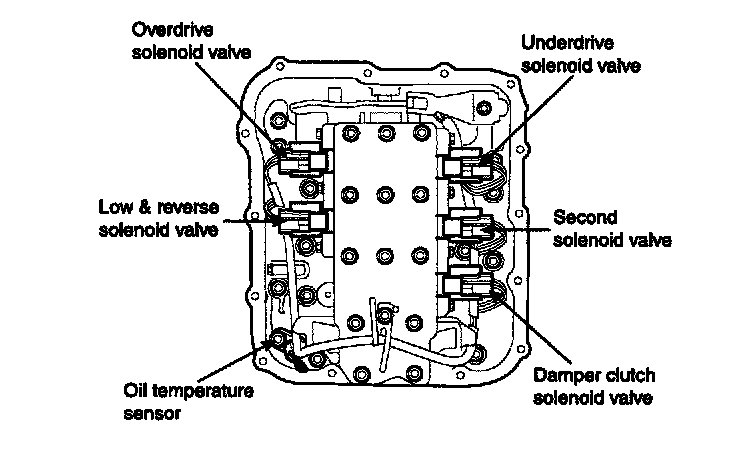

1. Remove the valve body cover.





2. Disconnect the connectors of each solenoid valve.

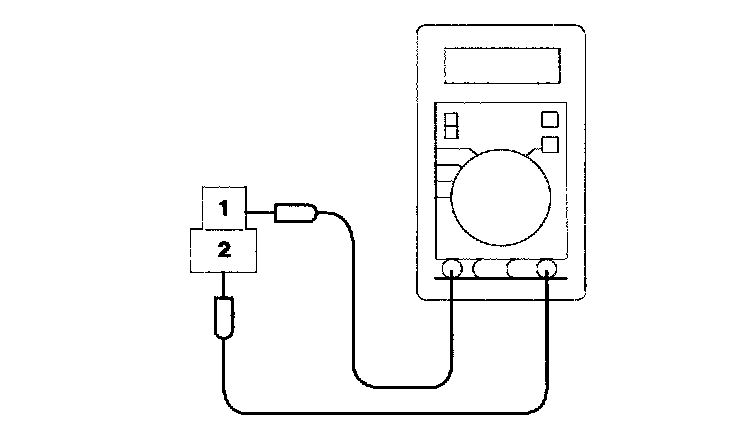

3. Measure the resistance between terminals 1 and 2 of each solenoid valve.

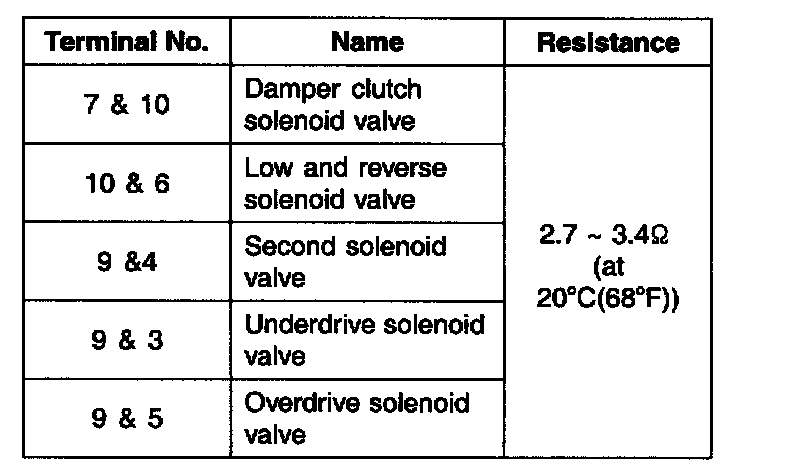

STANDARD VALUE:





4. If the resistance is outside the standard value, replace the solenoid valve.

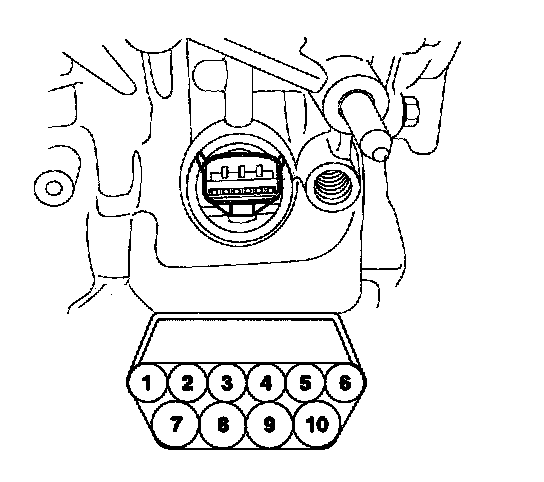

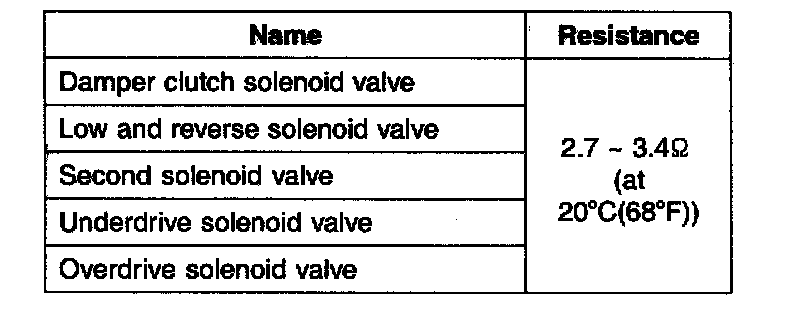

NOTE: Resistance of the solenoid valve connector.
