Second Brake

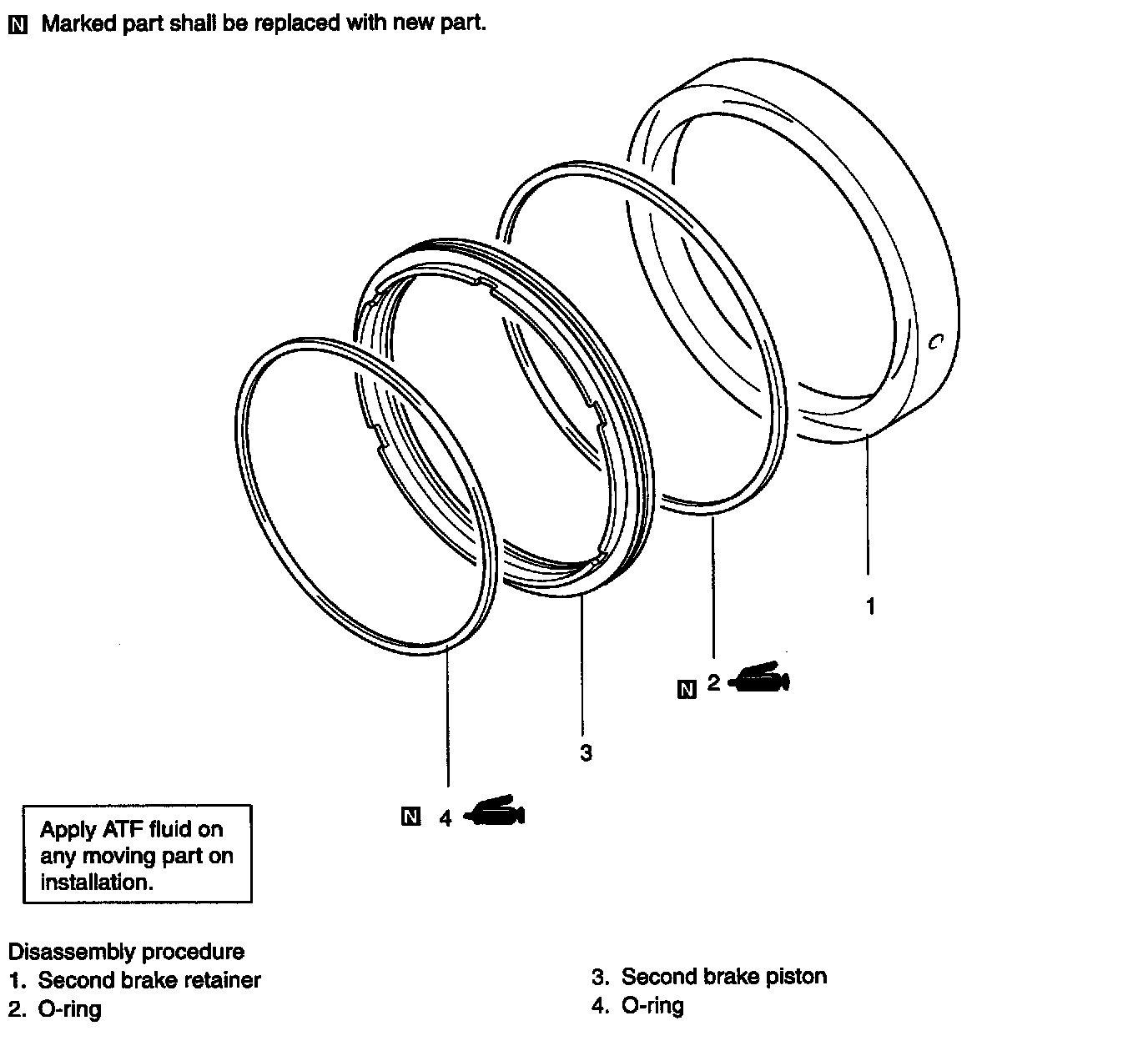

Components

REASSEMBLY
Install the O-ring.

Apply ATF or white Vaseline on the seal ring and install it caring not to damage it.
