Output Shaft

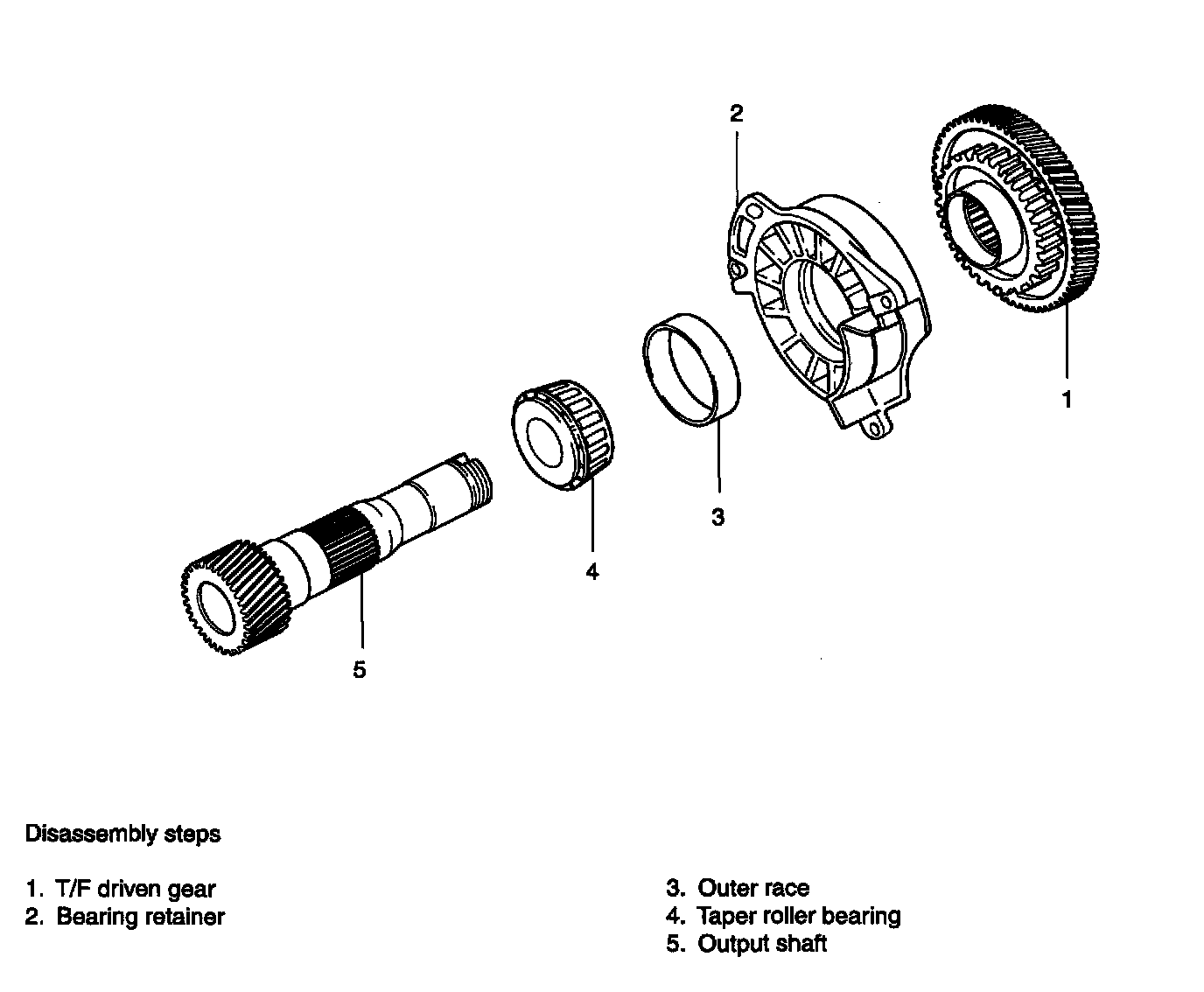

Components

REASSEMBLY

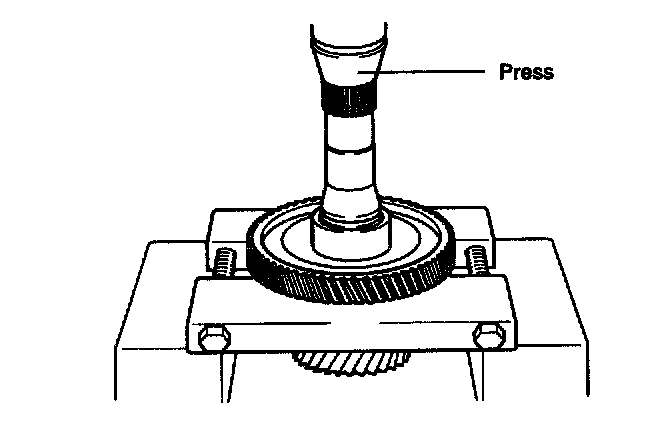

1. Remove the transfer driven gear by press.

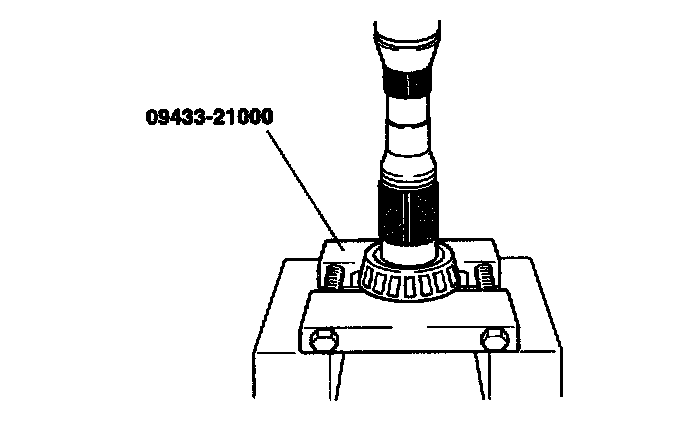

2. Remove the taper roller bearing.
