Automatic Transmission/Transaxle: Application and ID

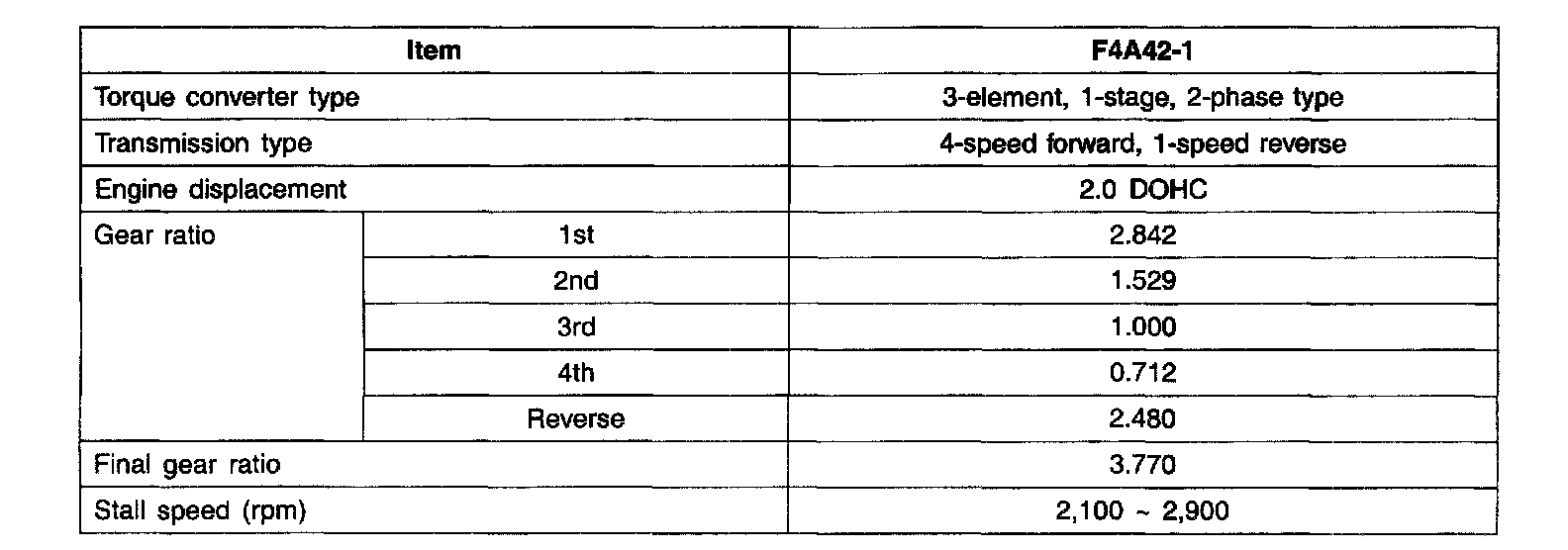

GENERAL SPECIFICATIONS:

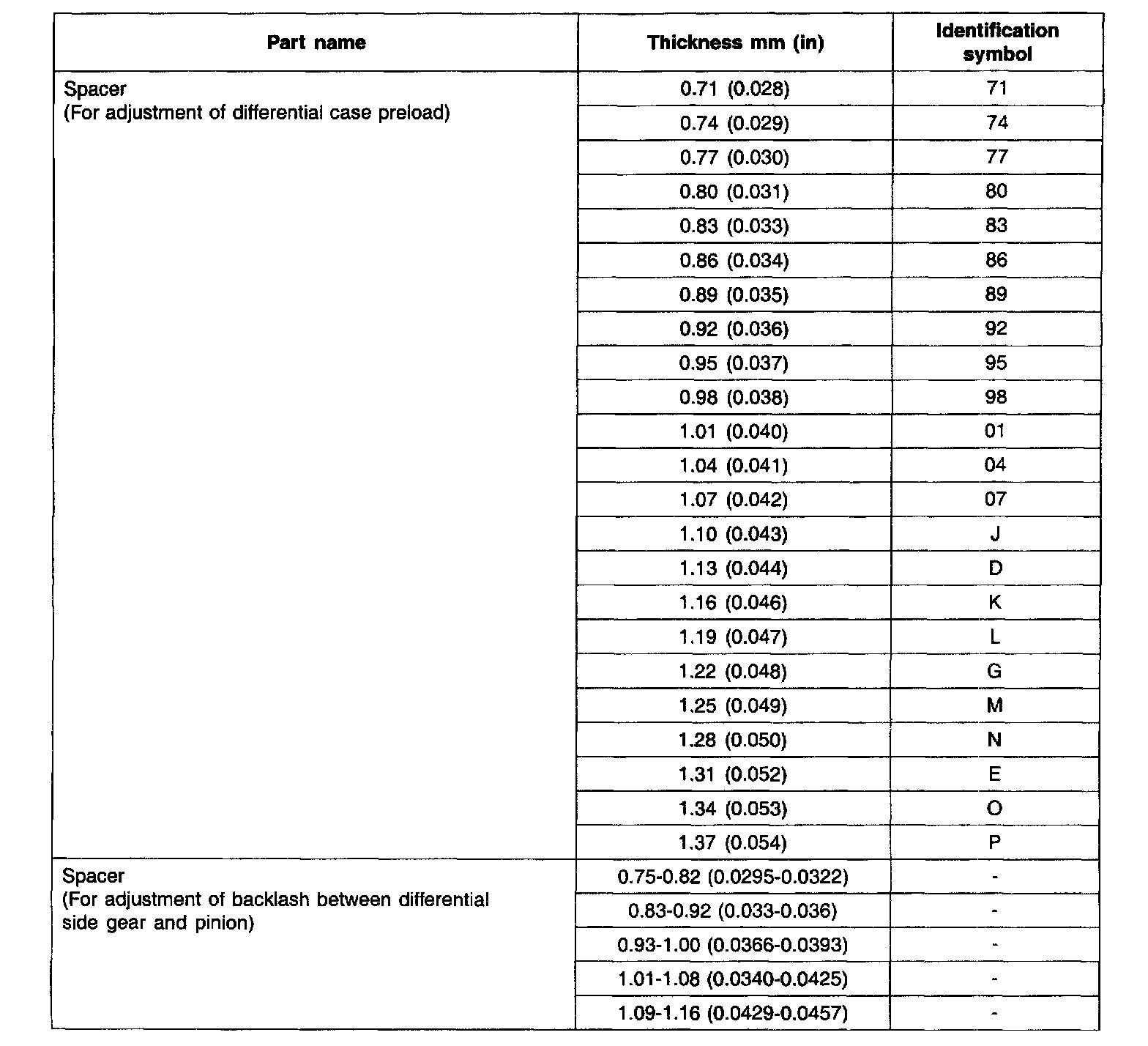

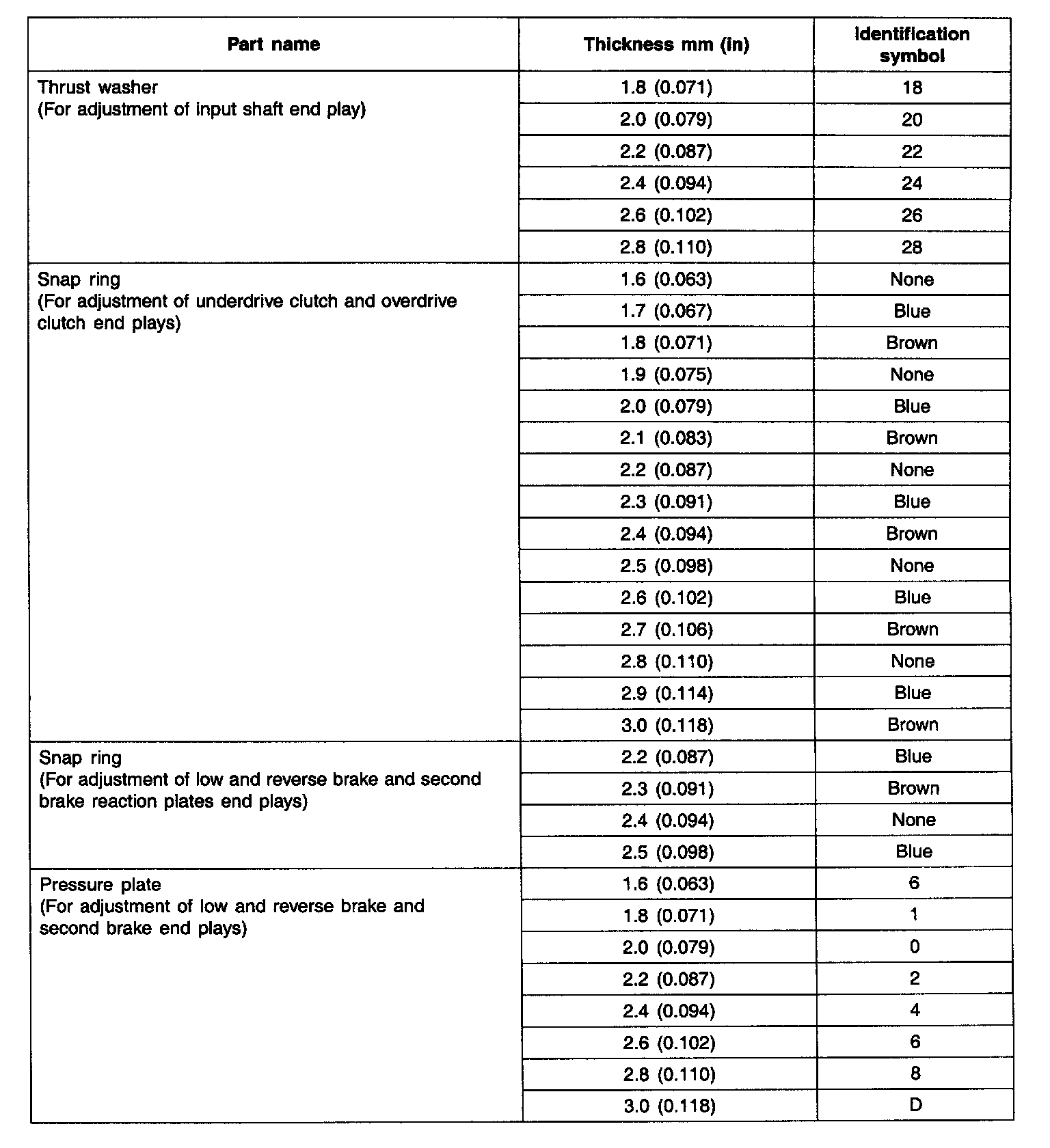

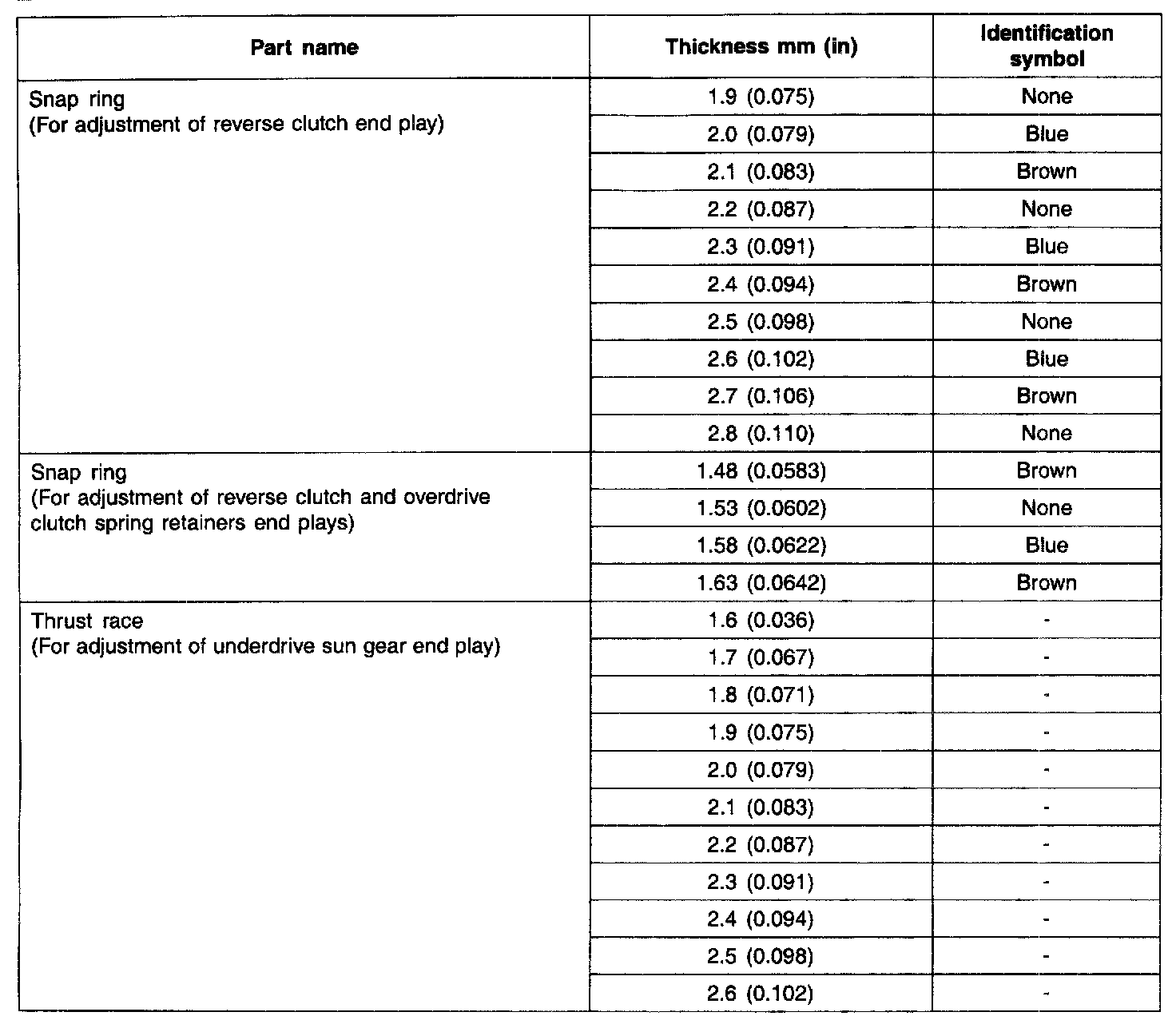

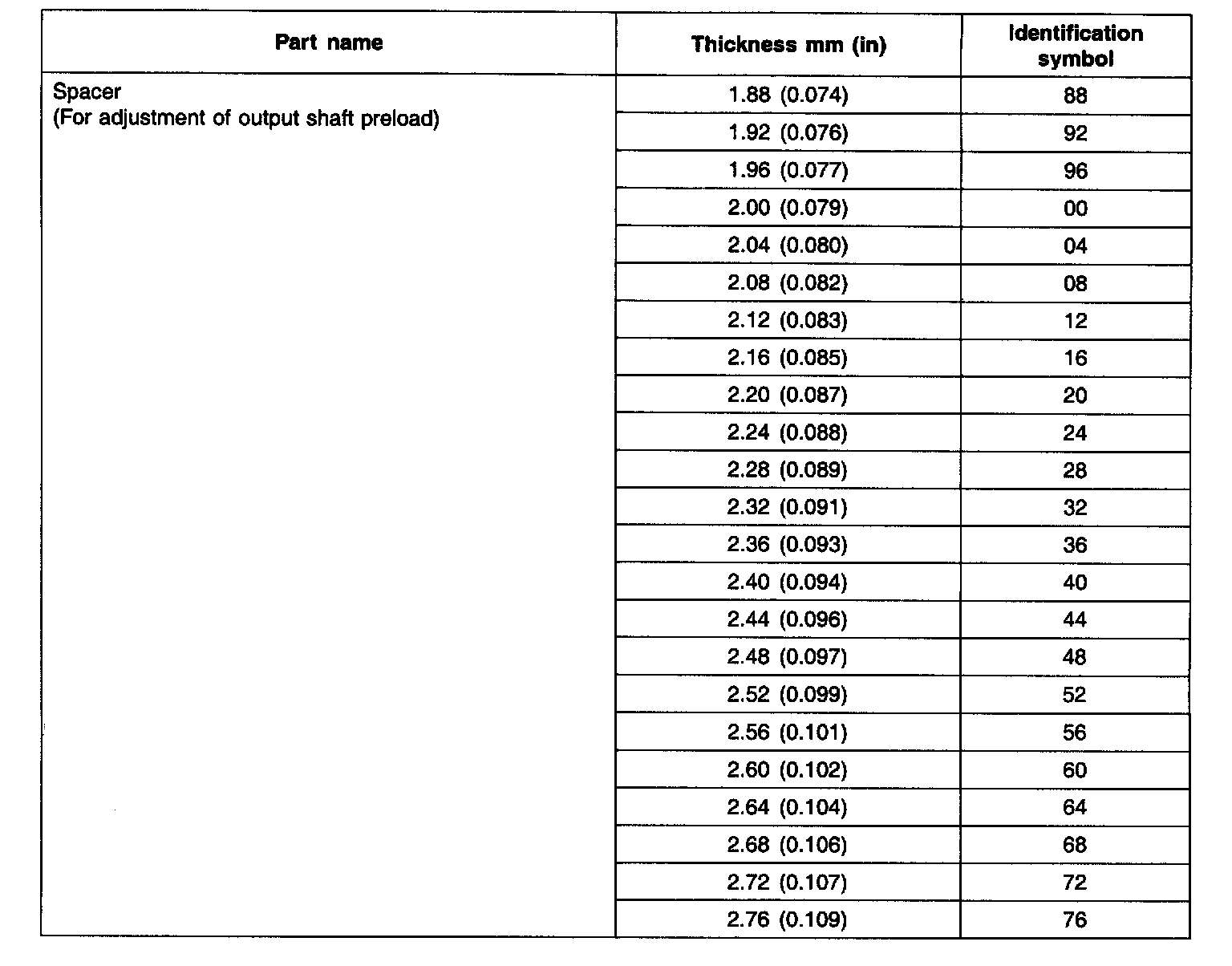

SNAP RING AND SPACER FOR ADJUSTMENT (Part 1):

SNAP RING AND SPACER FOR ADJUSTMENT (Part 2):

SNAP RING AND SPACER FOR ADJUSTMENT (Part 3):

SNAP RING AND SPACER FOR ADJUSTMENT (Part 4):

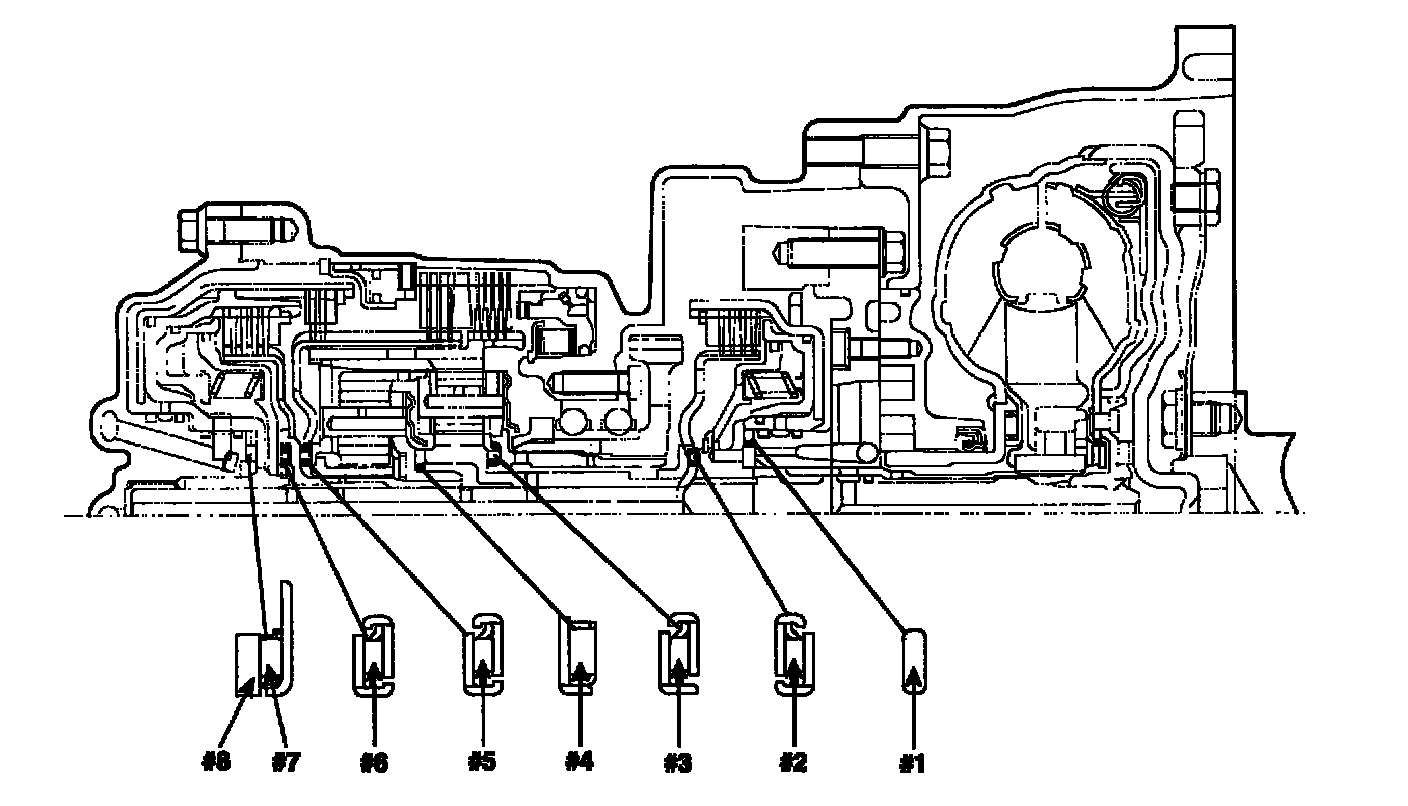

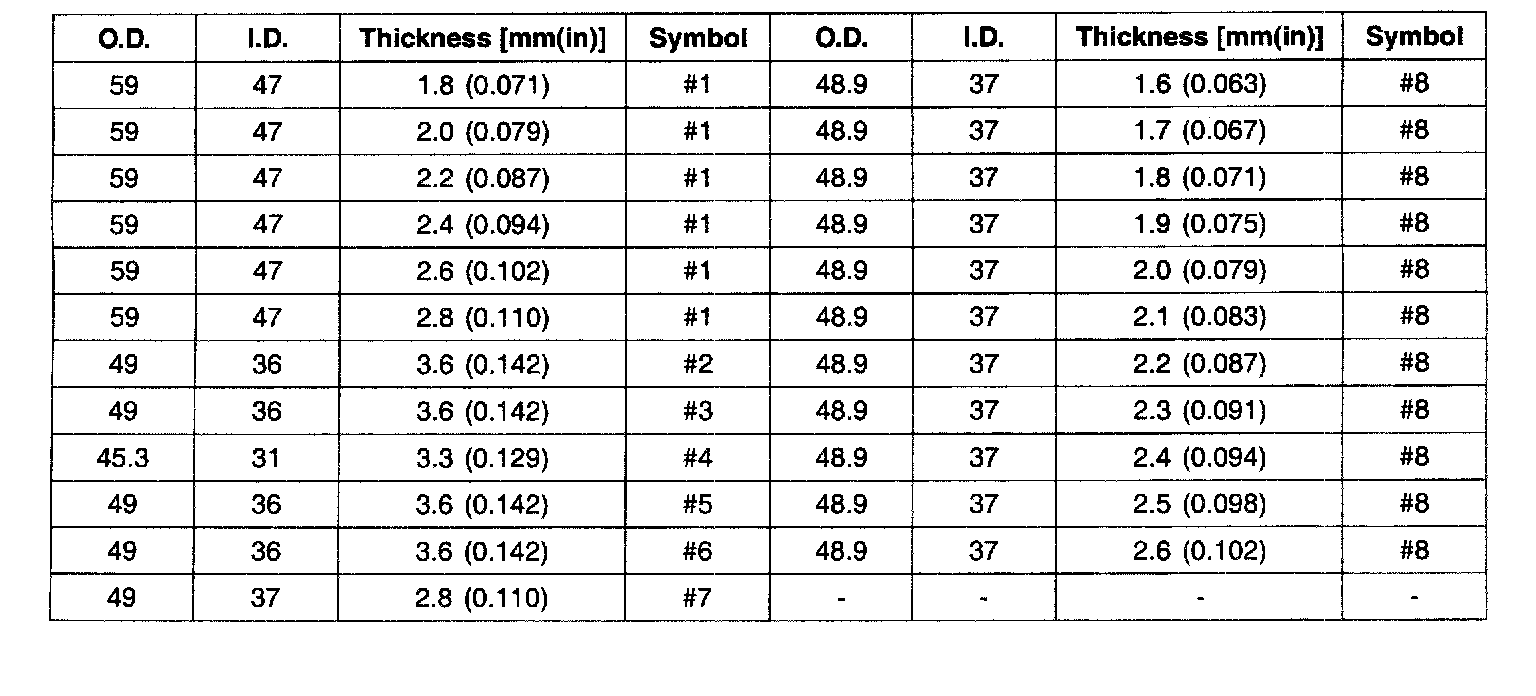

IDENTIFICATION OF THRUST BEARING, THRUST RACES, AND THRUST WASHERS (Part 1):

IDENTIFICATION OF THRUST BEARING, THRUST RACES, AND THRUST WASHERS (Part 2):
