Replacement

REPLACEMENT
TRAILING ARM BUSHING





1. Install the special tool (09551-25000) on the trailing arm.
2. Remove the trailing arm bushing.

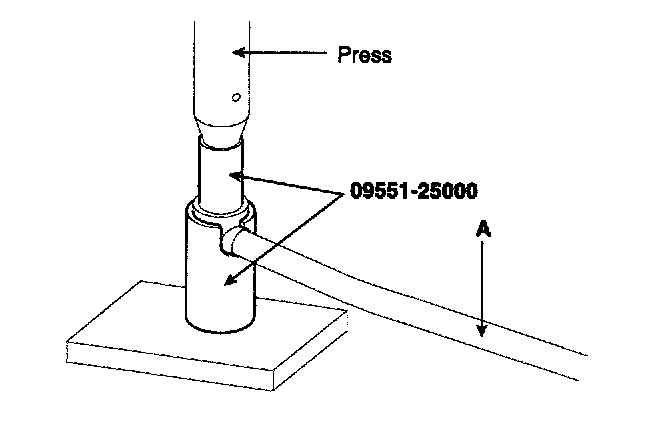

3. Using the special tool (09551-25000), press - fit the rear trailing arm bushing.

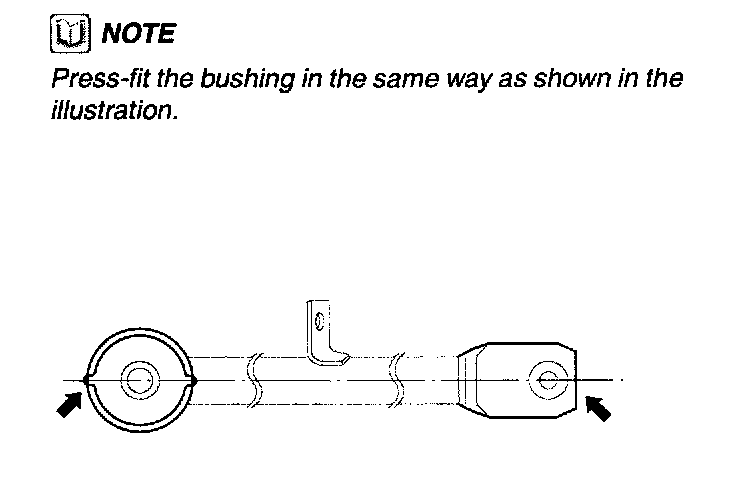

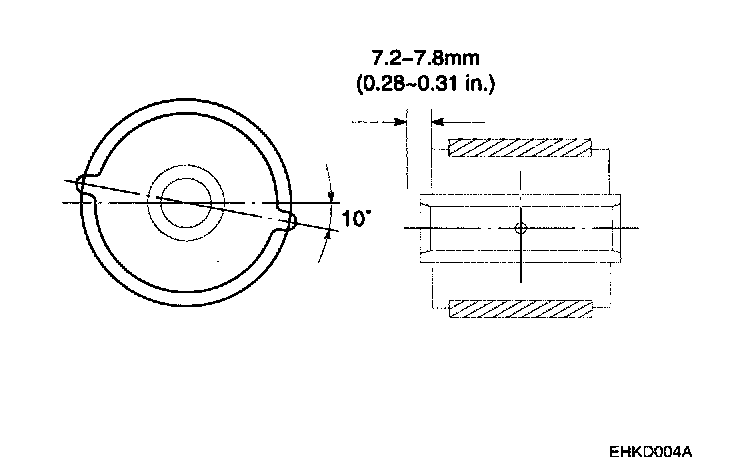

NOTE: Press - fit the bushing in the same way as shown in the illustration.
