Removal

REMOVAL

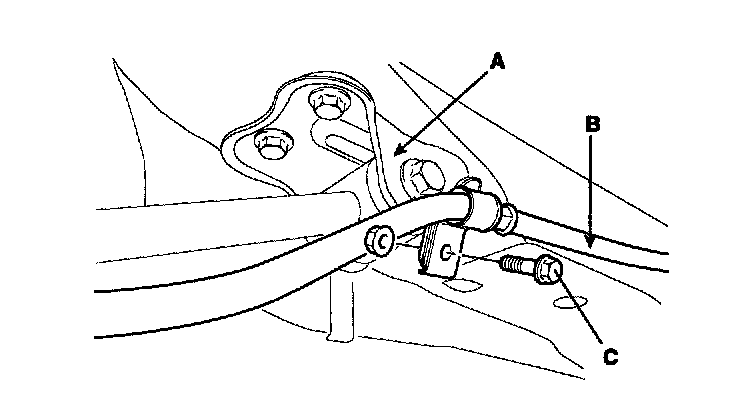

1. After removing the bolt (c), detach the parking brake cable(B) which is fixed on the rear trailing arm bracket(A).

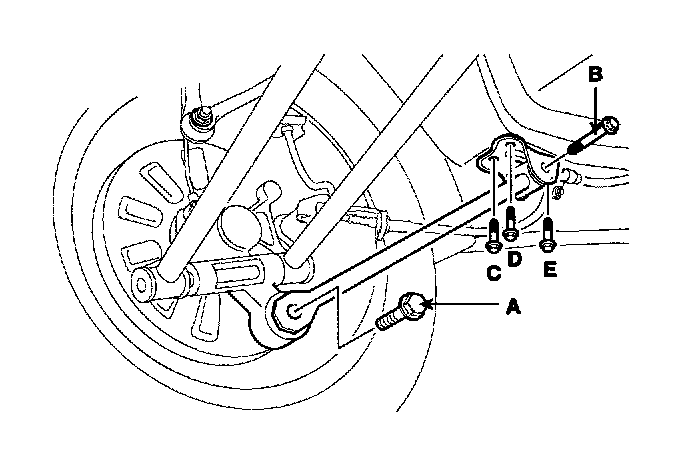

2. Remove the trailing arm mounting bolts(A,B) and the trailing arm bracket mounting bolts(C,D,E).
3. Remove the trailing arm.
