Disassembly

DISASSEMBLY

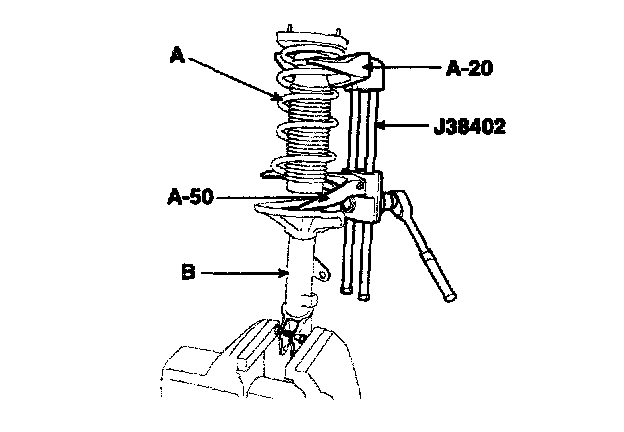

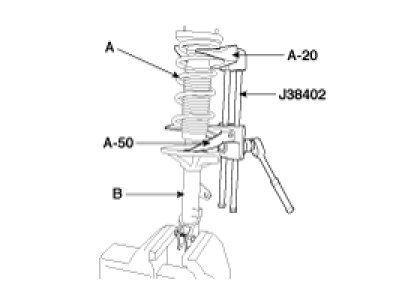

1. Using the Special Tools (J38402, A - 20 and A - 50), compress the coil spring(A) until there is only a little tension on the strut(B).

CAUTION: Do not use an impact gun.

2. Open the insulator dust cover and then remove the self - locking nut at the top end of the upper strut.
3. Remove the spring upper seat, coil spring, spring lower pad, rubber bumper and dust cover.
