Inspection

INSPECTION
1. Check the strut insulator bearing for wear or damage.
2. Check rubber parts for damage or deterioration.

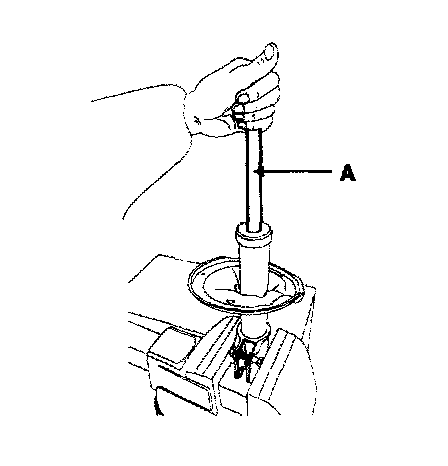

3. Compress and extend the piston rod(A) and check that there is no abnormal resistance or unusual sound during operation.

INSPECTION
1. Fully extend the piston rod.

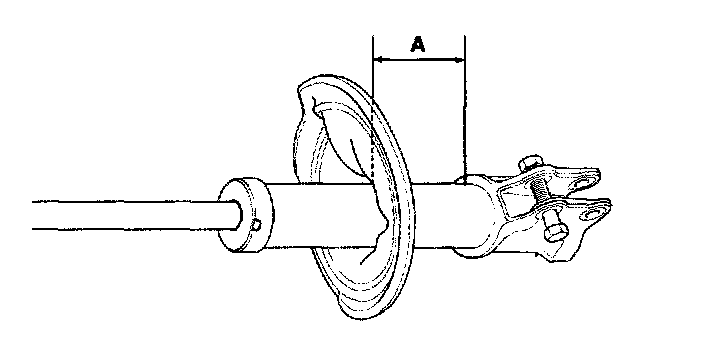

2. Drill a hole on the A section to remove gas from the cylinder.

CAUTION: The gas coming out is harmless, but be careful of chips that may fly when drilling.
