Removal

REMOVAL
1. Remove the front wheel and tire.
2. Remove the split pin, the castle nut and the washer.

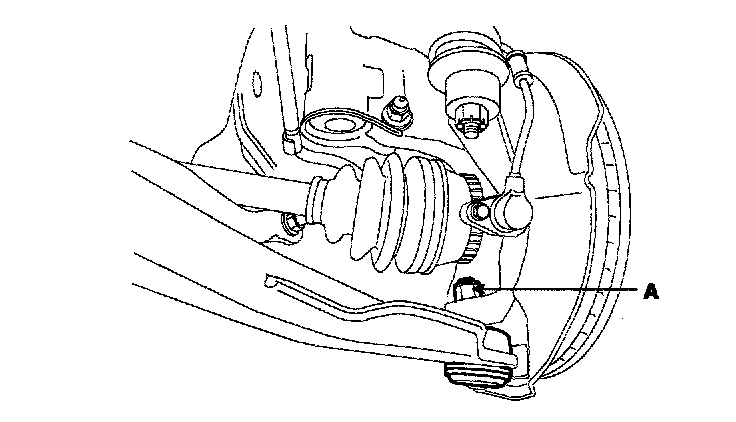

3. Loosen the lower arm ball joint nut(A), but do not remove it.

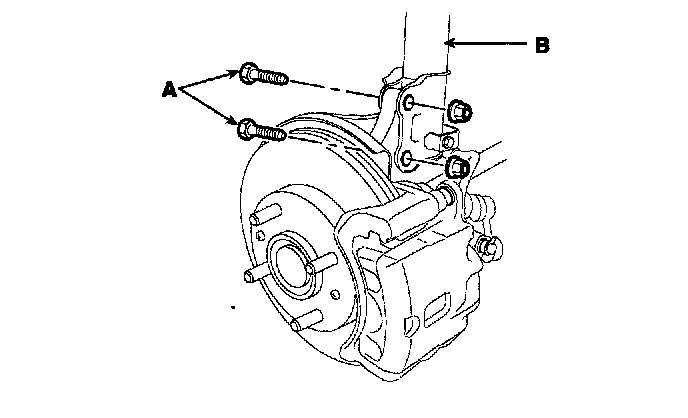

4. Remove the front strut lower mounting bolts(A) from the strut assembly(B).





5. Push the axle hub(A) outward to install the Special tool (09568-34000) easily.

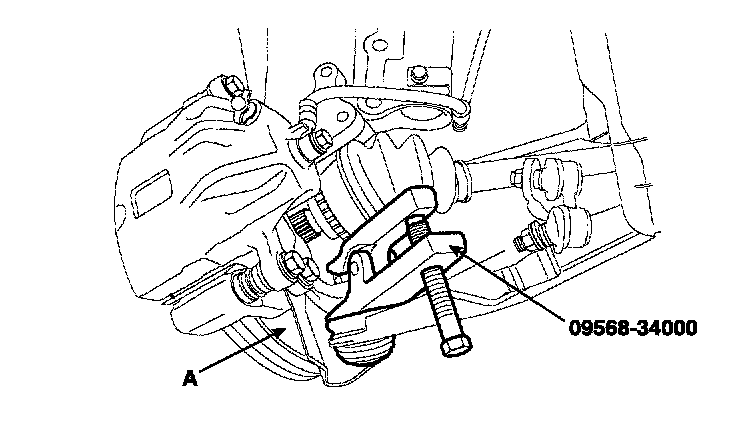

6. Using the Special Tool (09568 - 34000), disconnect the lower arm ball joint(c) from the lower arm(B).

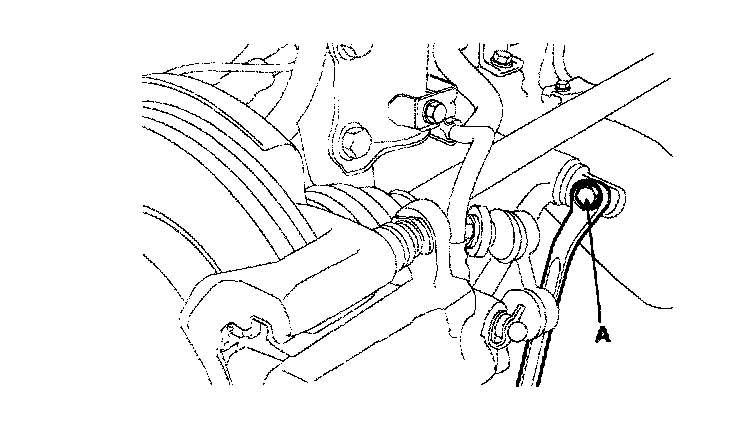

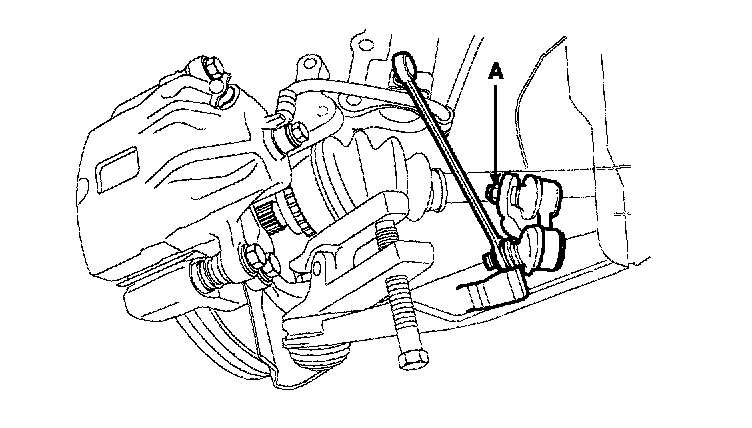

7. Remove the stabilizer link nut(A).
8. Temporarily install the strut lower mounting bolt.

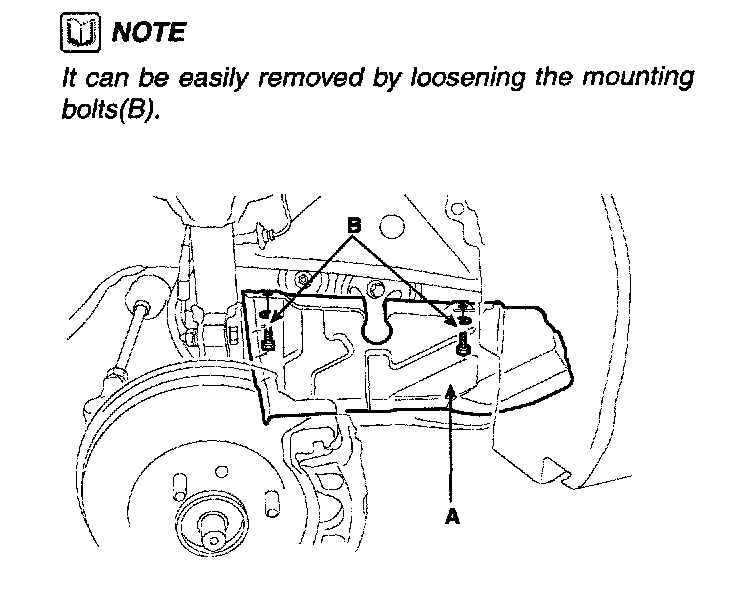

9. To the lower arm mounting bolt, remove the passenger seat side cover(A).





NOTE: It can be easily removed by loosening the mounting bolts(B).

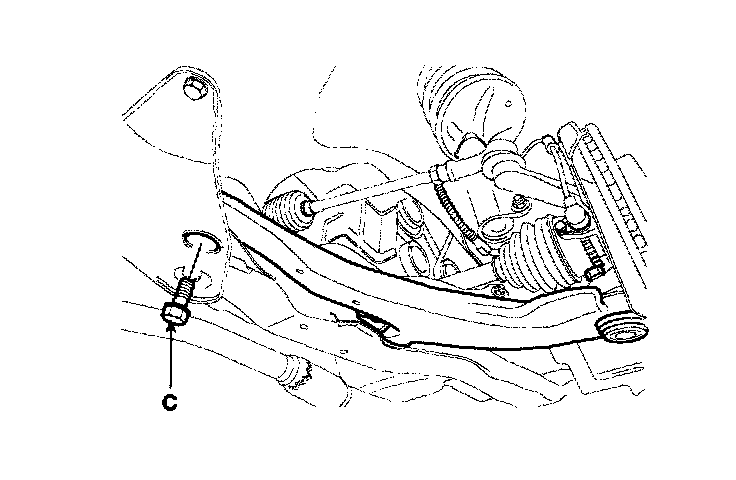

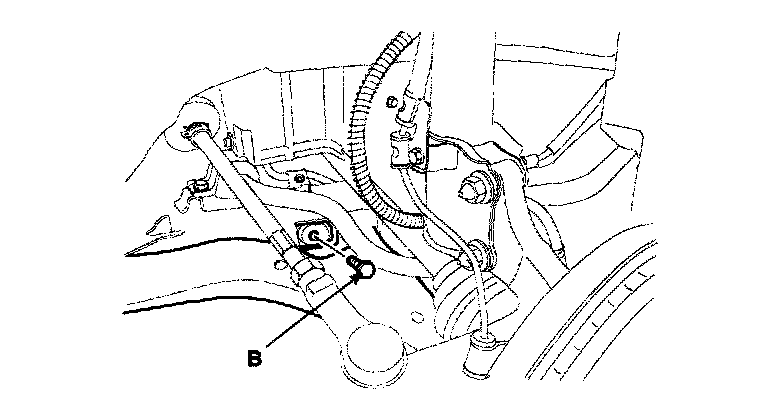

10. Remove the lower arm mounting bolts(A,B,C).








11. Remove the lower arm assembly after completely unfastening the nut of lower arm ball joint which was loosened temporarily in step 3.
