Control Arm Bushing: Service and Repair

LOWER ARM BUSHING (G)

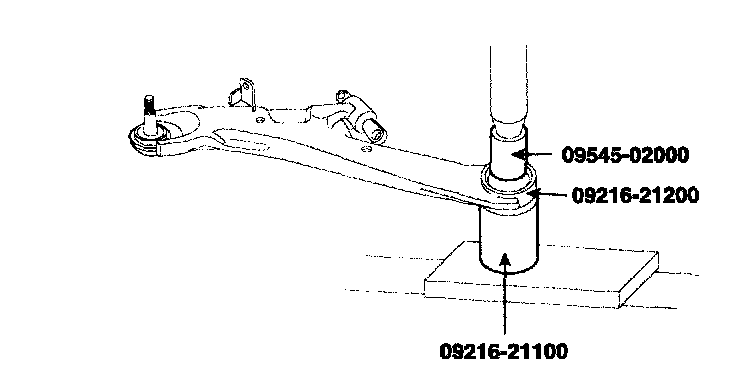

1. Install the Special tools (09545-02000, 09216-21200, 09216-21200) on the lower arm.





2. Press out the bushing.
3. Apply soap solution to the following parts.
- Outer surface of the bushing.
- Inner surface of the lower arm bushing mounting part.

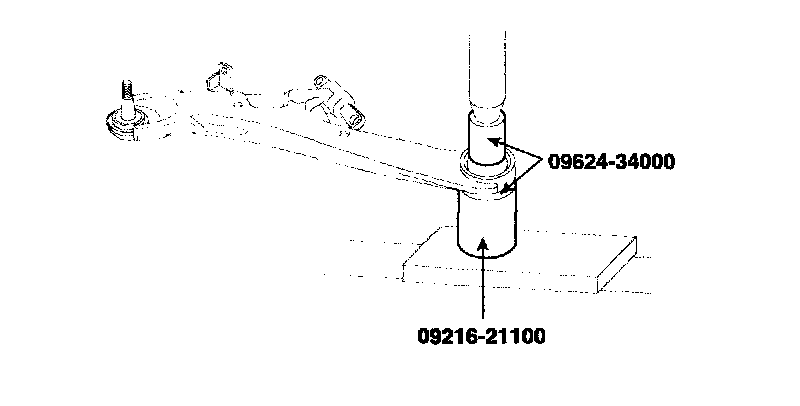

4. Install the new bushing on the lower arm using the Special Tools (09216-21100, 09624-34000).

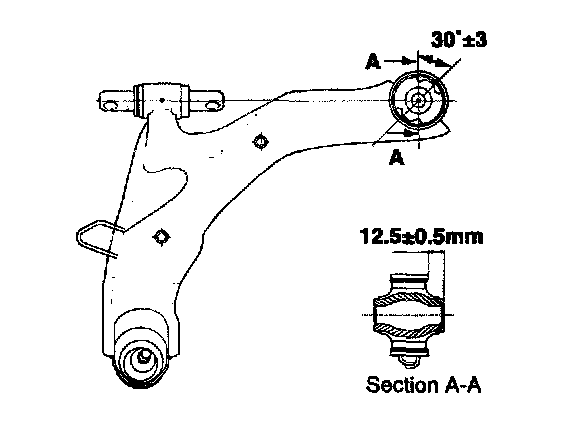

NOTE: Press - in the lower arm bushing (G) in the same direction as shown in illustration.

Pull out force for the bushing:: 80 N [800 kgs, 11.9 ft. lbs.] or more

INSTALLATION
Installation is the reverse of the removal procedure.
