Checking Steering Angle

CHECKING STEERING ANGLE

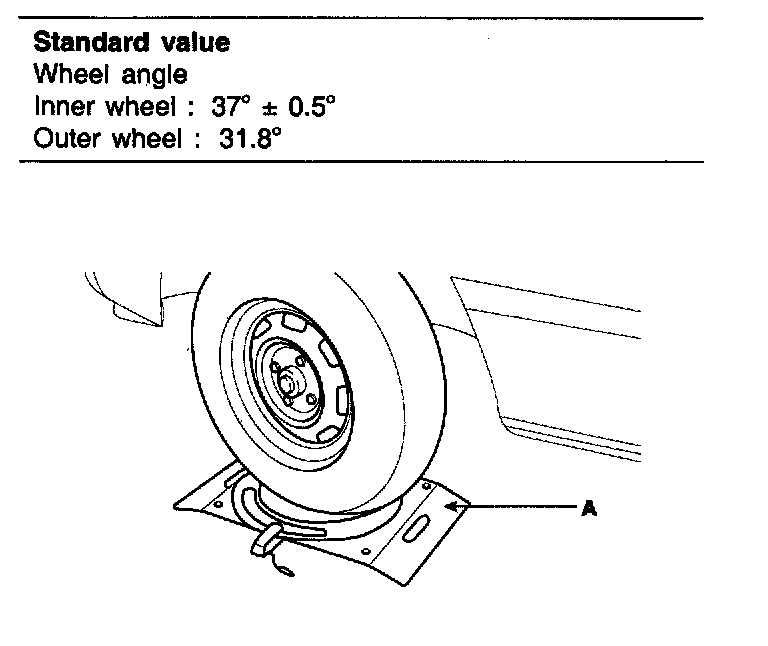

1. Place the front wheel on a turning radius gauge and measure the steering angle.
Standard value
Wheel angle
Inner wheel: 37° - 0.5°
Outer wheel: 31.8°
2. If the measured value is not within the standard value, adjust the linkage.
