Universal Joint Assembly

UNIVERSAL JOINT ASSEMBLY

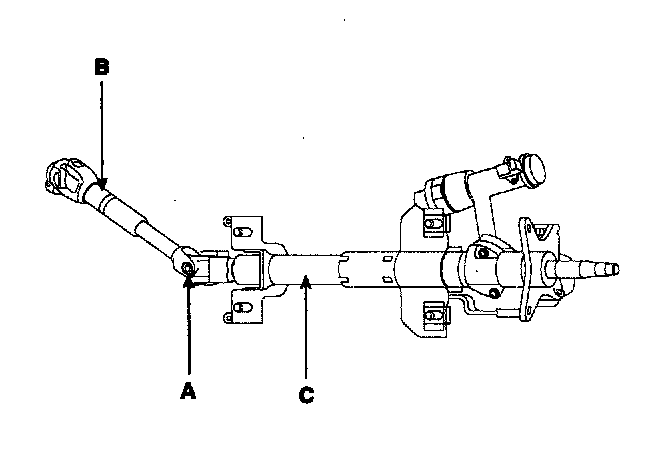

1. Remove the bolt(A) connecting the universal joint assembly(B) and the steering column and shaft assembly(C).

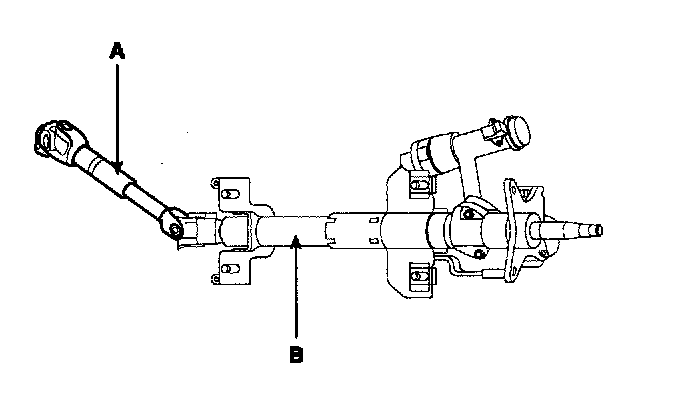

2. Remove the universal joint assembly(A) from the steering column and shaft assembly(B).
3. Reassembly is the reverse of disassembly.
