Starting and Charging: Tools and Equipment

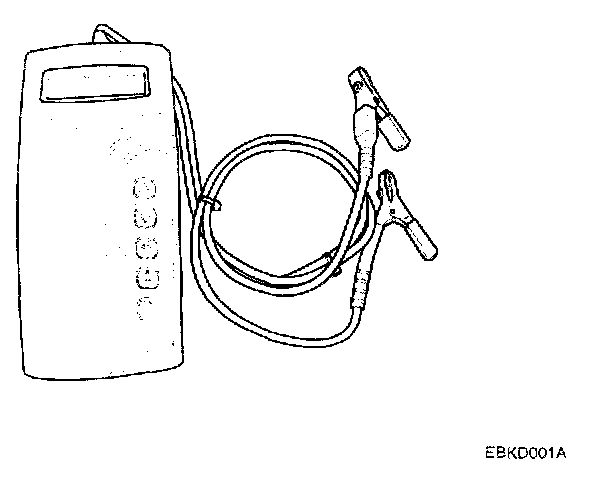

THE MICRO 570 ANALYZER




The MICRO 570 Analyzer provides the ability to test the charging and starting systems, including the battery, starter and alternator.

CAUTION: Because of the possibility of personal injury, always use extreme caution and appropriate eye protection when working with batteries.

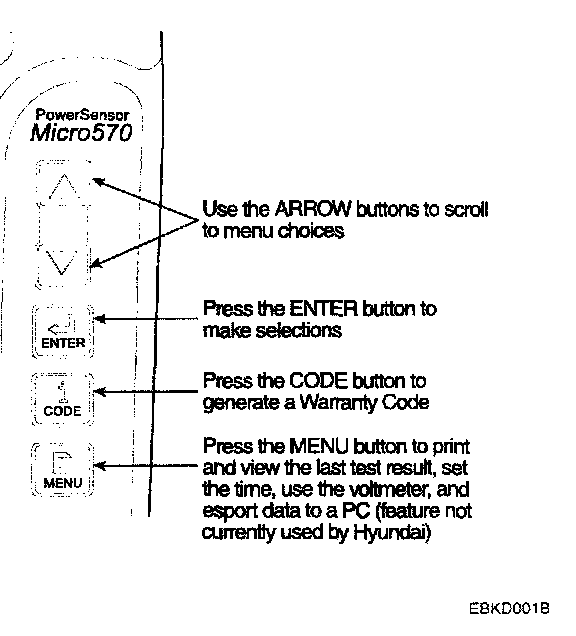

KEYPAD




The MICR0570 button on the key pad provide the following functions.
