Disassembly and Reassembly

DISASSEMBLY

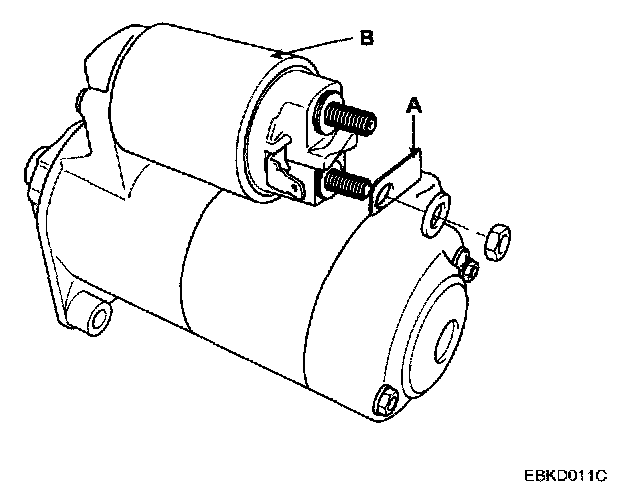

1. Disconnect the M-terminal (A) on the magnet switch assembly (B).

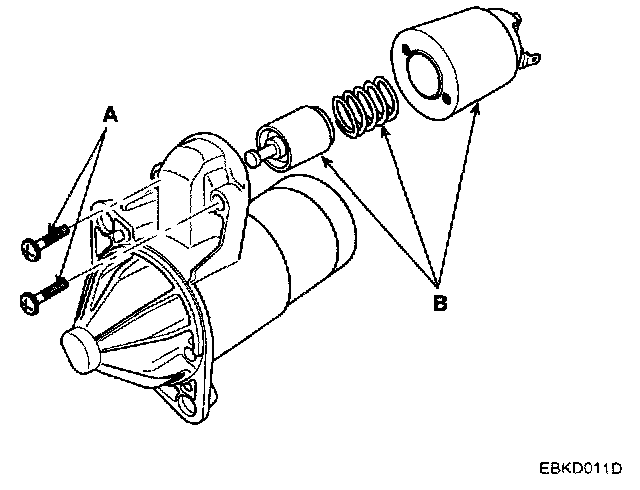

2. After loosening the 2 screws (A), detach the magnet switch assembly (B).




3. Loosen the brush holder mounting screw (A) and through bolts (B).

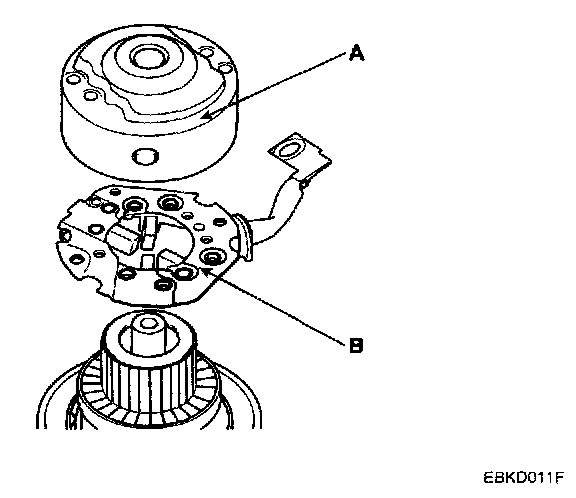

4. Remove the rear bracket (A) and brush holder assembly (B).

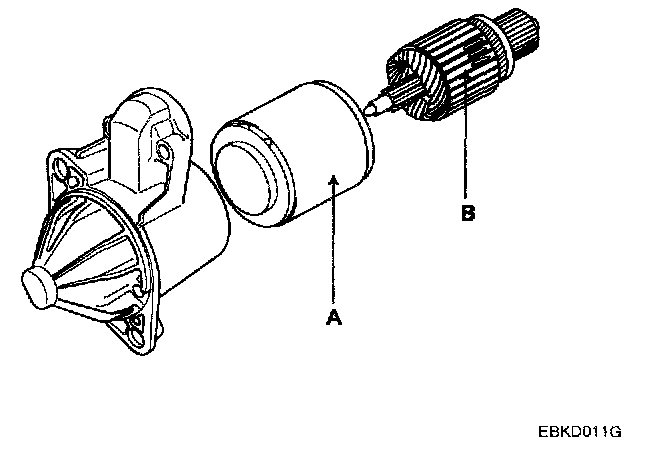

5. Remove the yoke (A) and armature (B).




6. Remove the, lever plate (A) and planetary shaft packing (B).

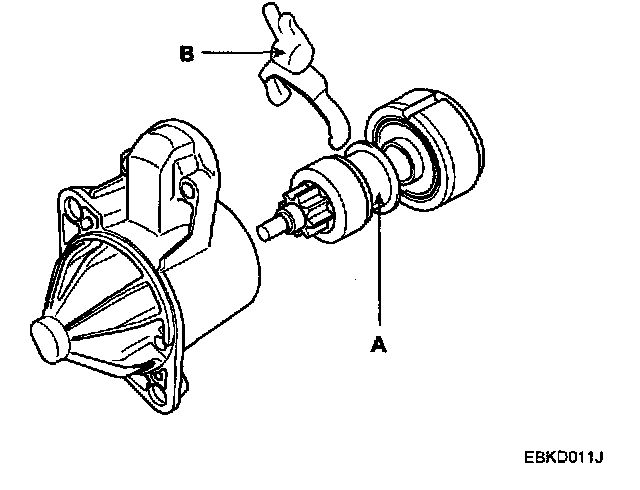

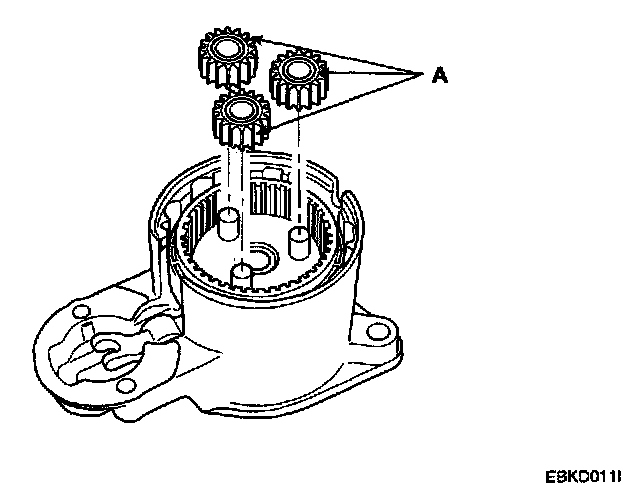

7. Disconnect the planetary gear (A).




8. Disconnect the planetary shaft assembly (A) and lever (B).

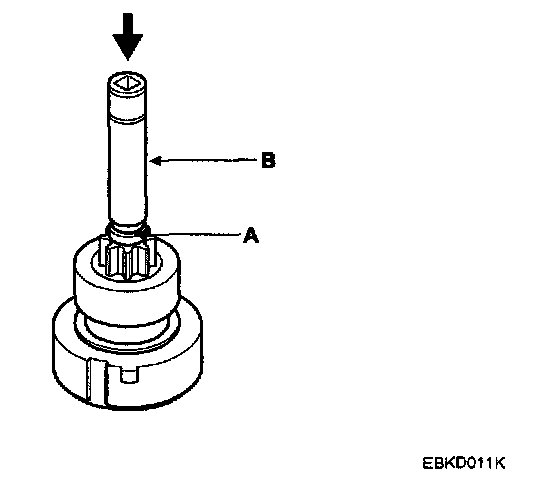

9. Press the stop ring (A) using a socket (B).

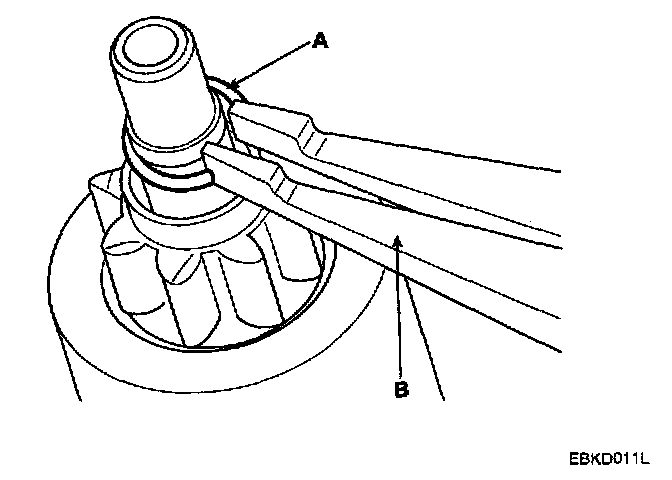

10. After removing the stopper (A) using stopper pliers (B).

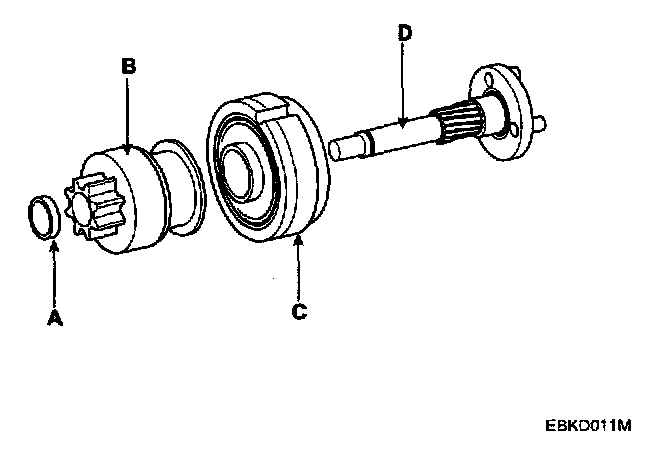

11. Disconnect the stop ring (A), overrunning clutch (B), internal gear (C) and planet shaft (D).




12. Reassembly is the reverse of disassembly.

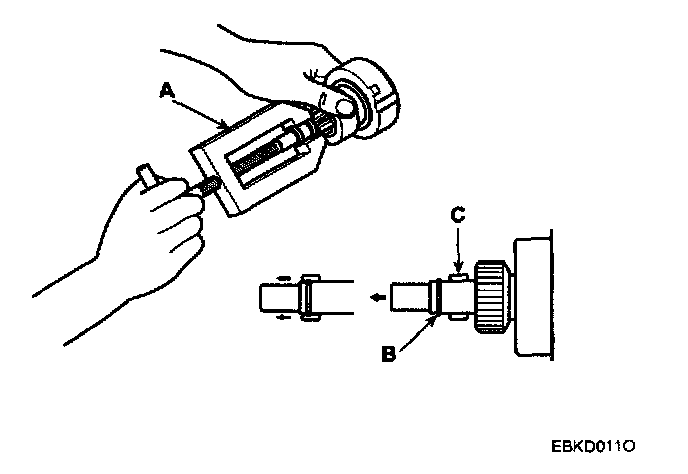

NOTE: Using a suitable pulling tool (A), pull the overrunning clutch stop ring (B) over the stopper (C).
