Home >> Kia >> 2004 >> Spectra L4-2.0L >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Auxiliary Power Outlet >> Diagrams >> Electrical Diagrams

Electrical Diagrams

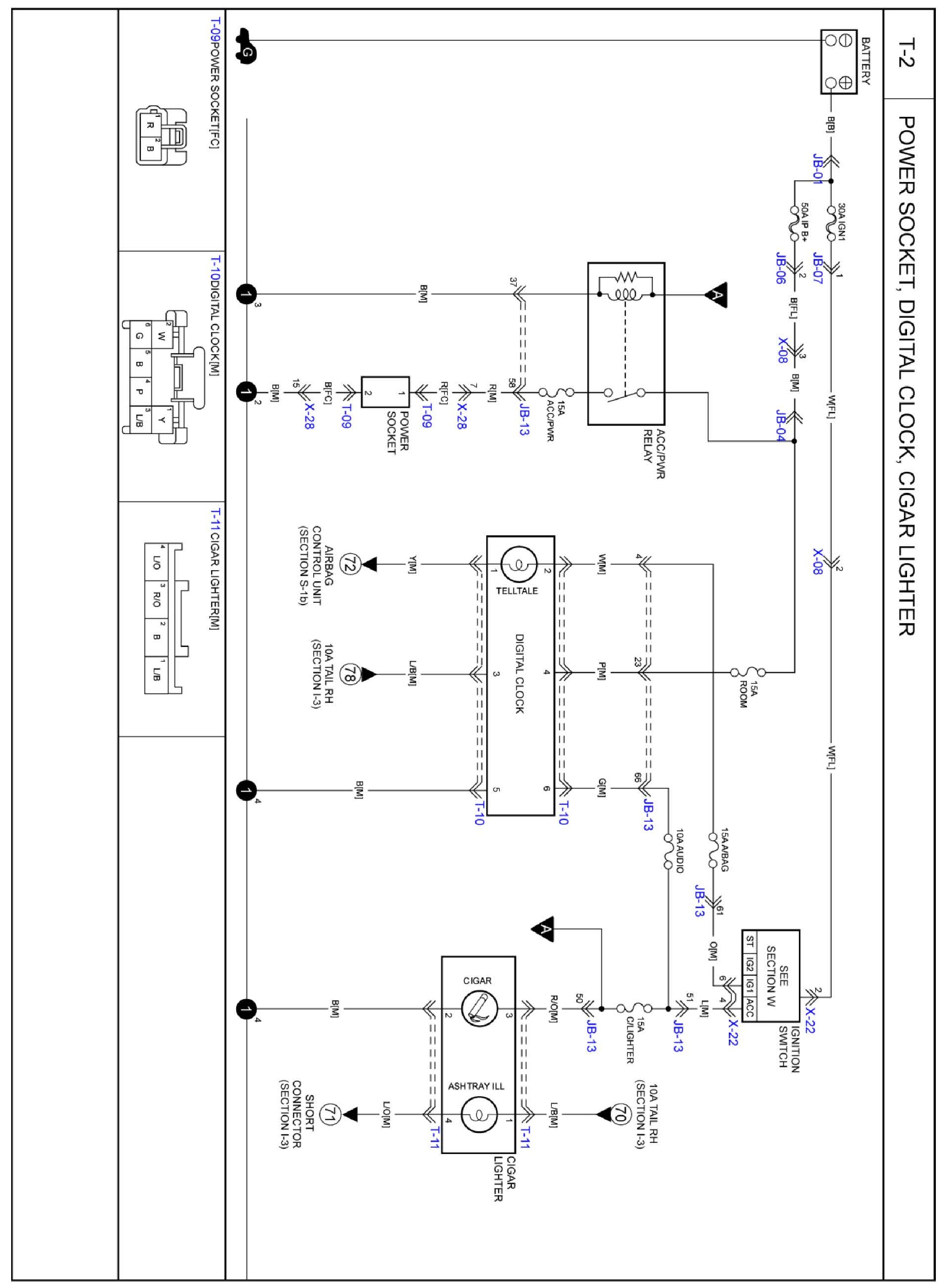

Power Socket, Digital Clock, Cigar Lighter

Diagram T-2:
